Simple operating system
Connect the dental unit to the C-Puma with a 4 holes tubing,
use the foot pedal to control the electric motor.

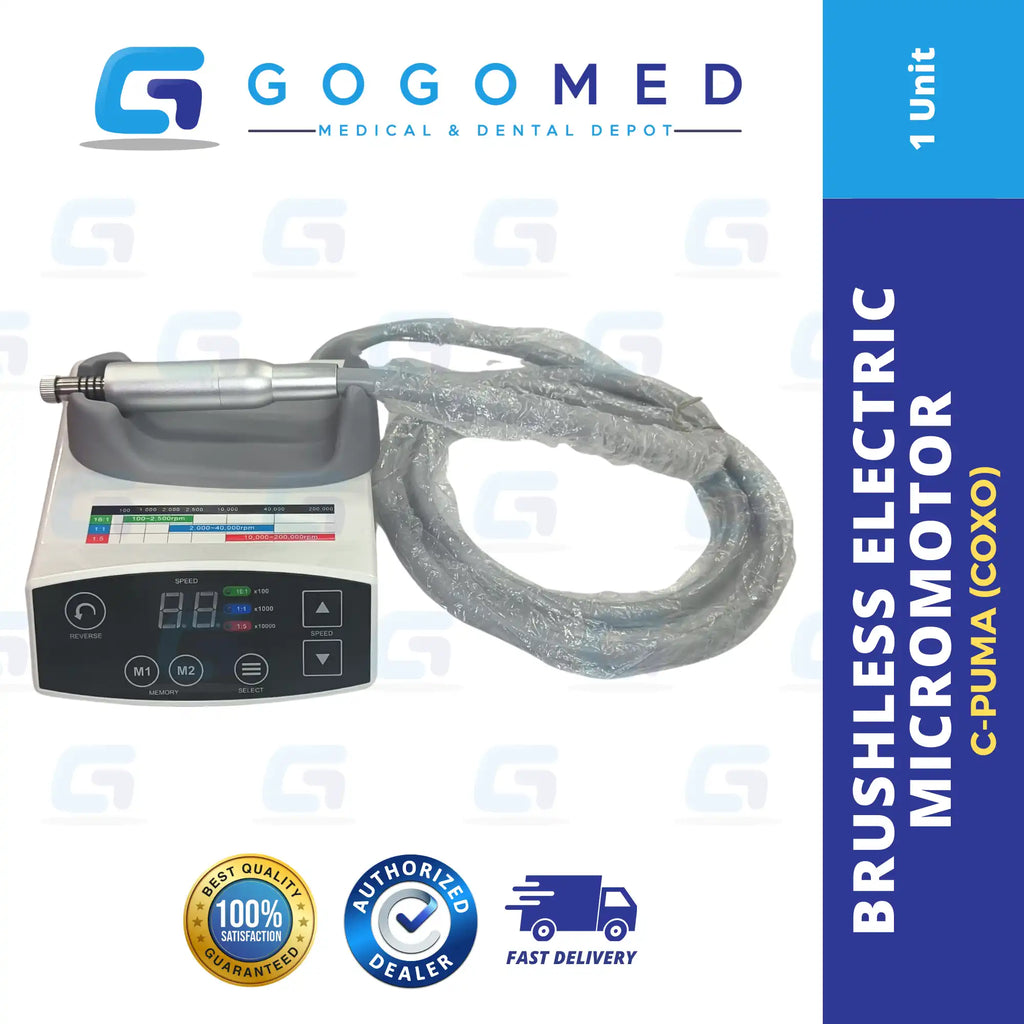

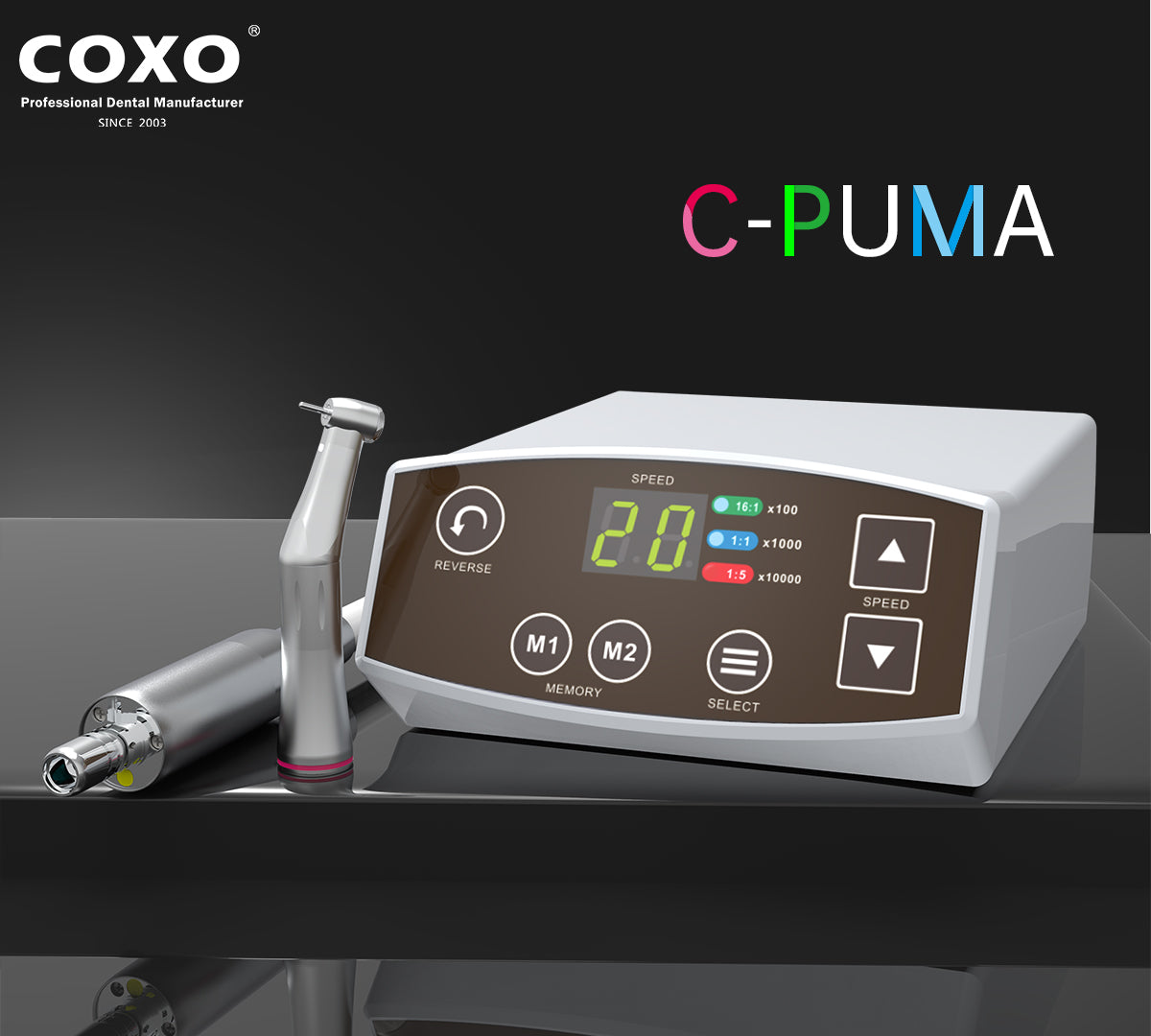

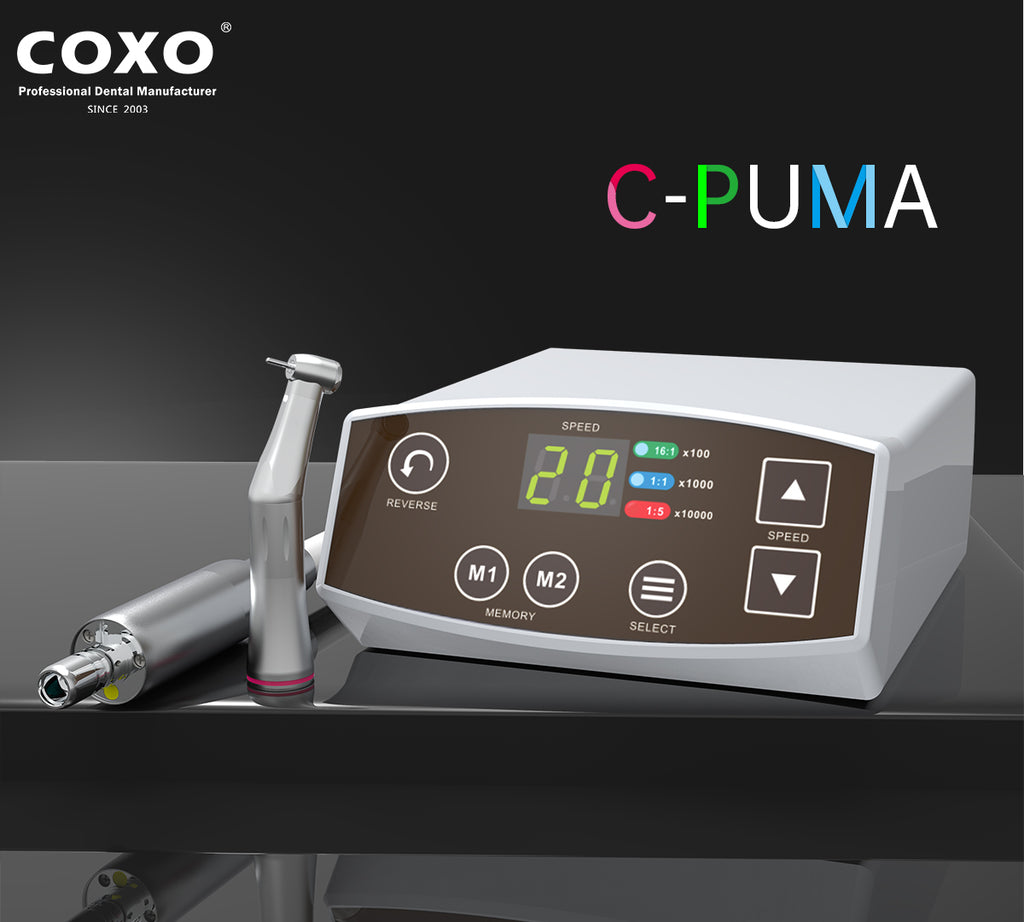

The New-Gen of technology micromotor C-Puma
According to the different treatments and different
handpieces, the speed can be adjusted from
100—200,000rpm/min.
Compact and handy, high torque
Ergonomic designed length and weight greatly reduce the
fatigue from long time operation, the motor can be sterilized.
Features:
Simple operating system
Conect the dental unit to the C Puma with a 4 holes handpiece tubing.use the foot pedal to control the electric motor.
The New-Gen of technology micromotor C – Puma
According to the different treatments and different handpieces,the speed can be adjusted from 100 to 200,000rpm
Compact and handy, high torque
Ergonomic designed length and weight greatly reduce the fatigue from long time operation, the motor can be sterilized.

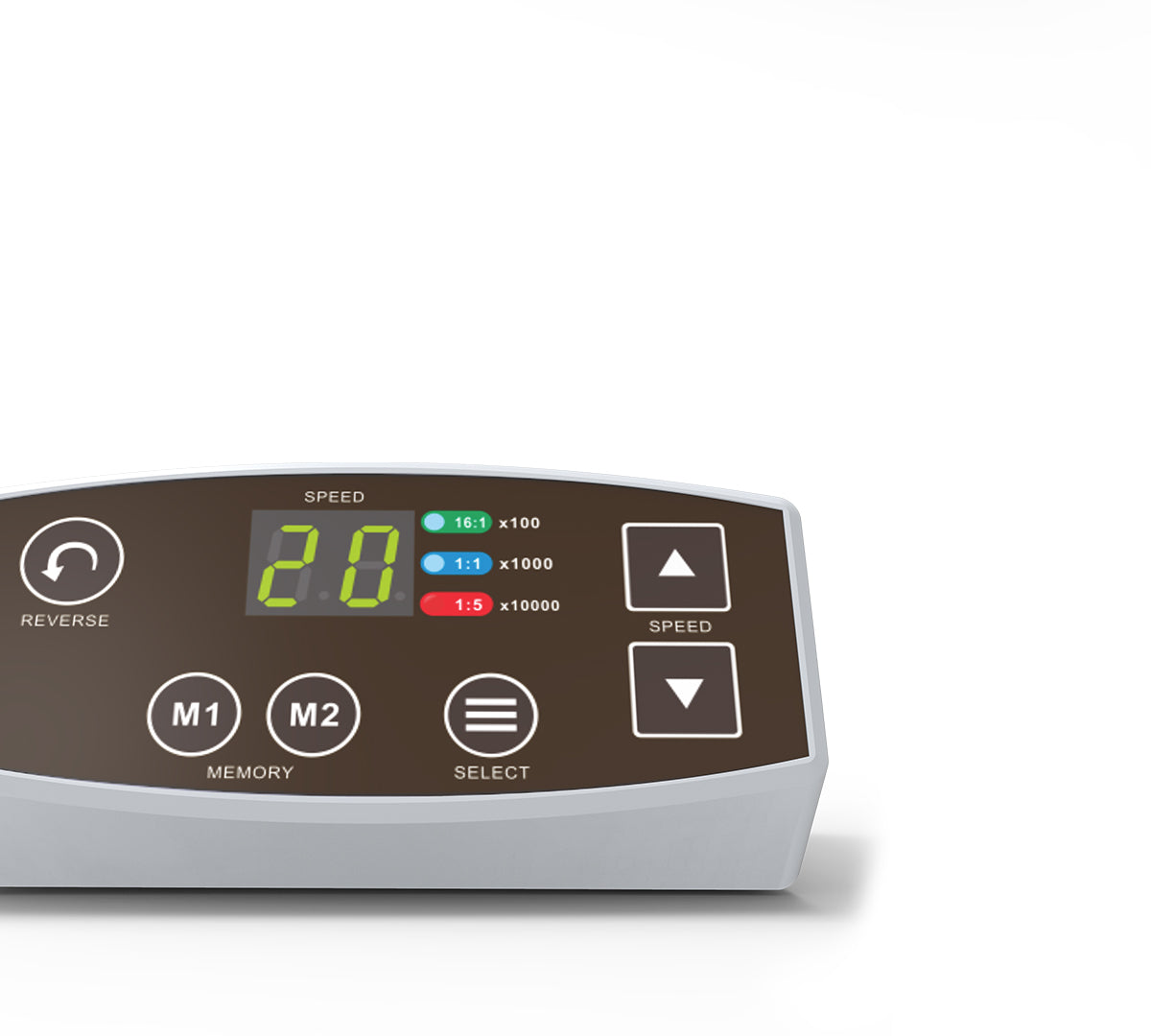

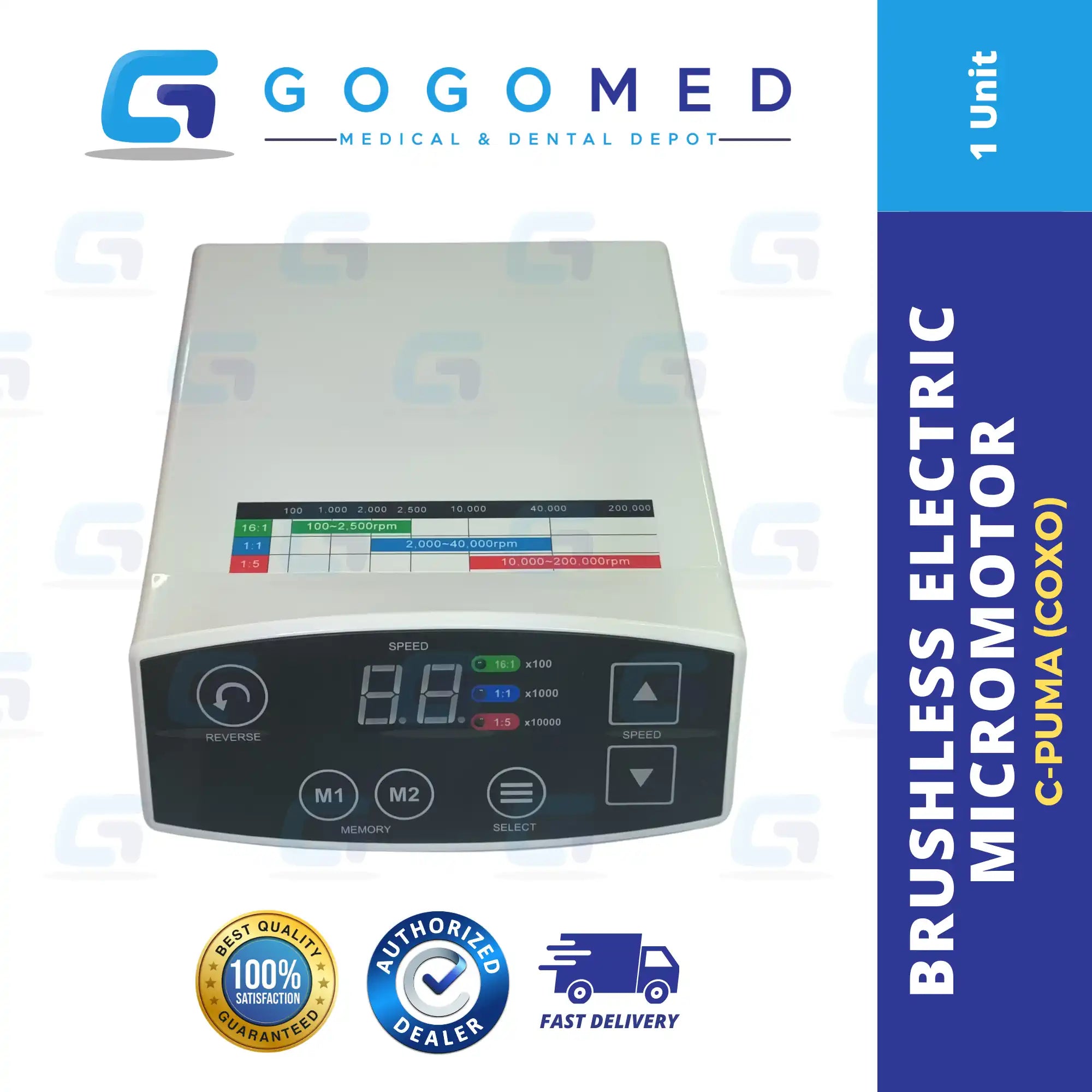

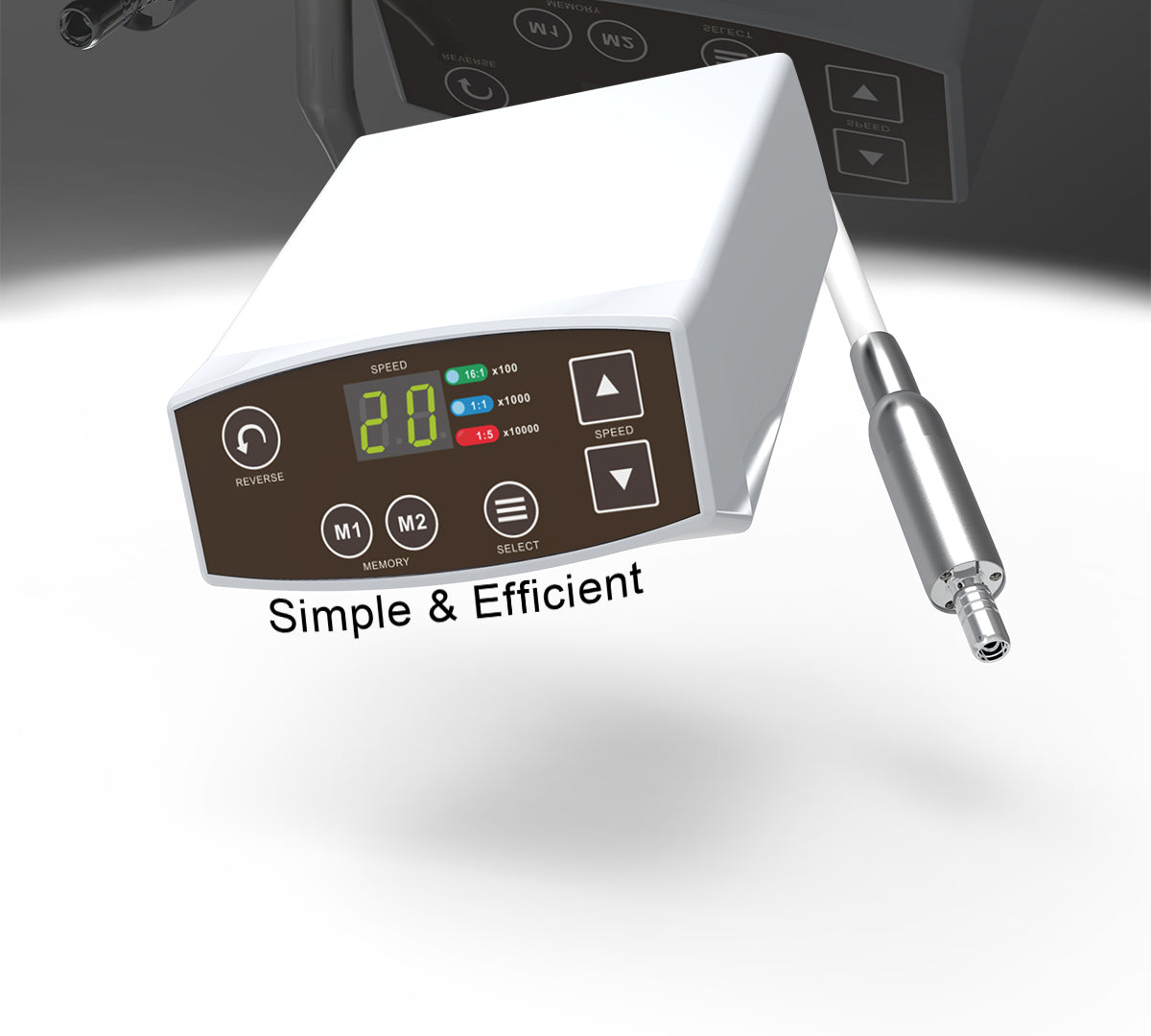

Operation interface:
1. Reverse button
2. Memory Program:M1 M2
3. Digital value: indicate the current speed
4. Speed button
5. Speed light
6. Rotational speed ratio button
Technical Details

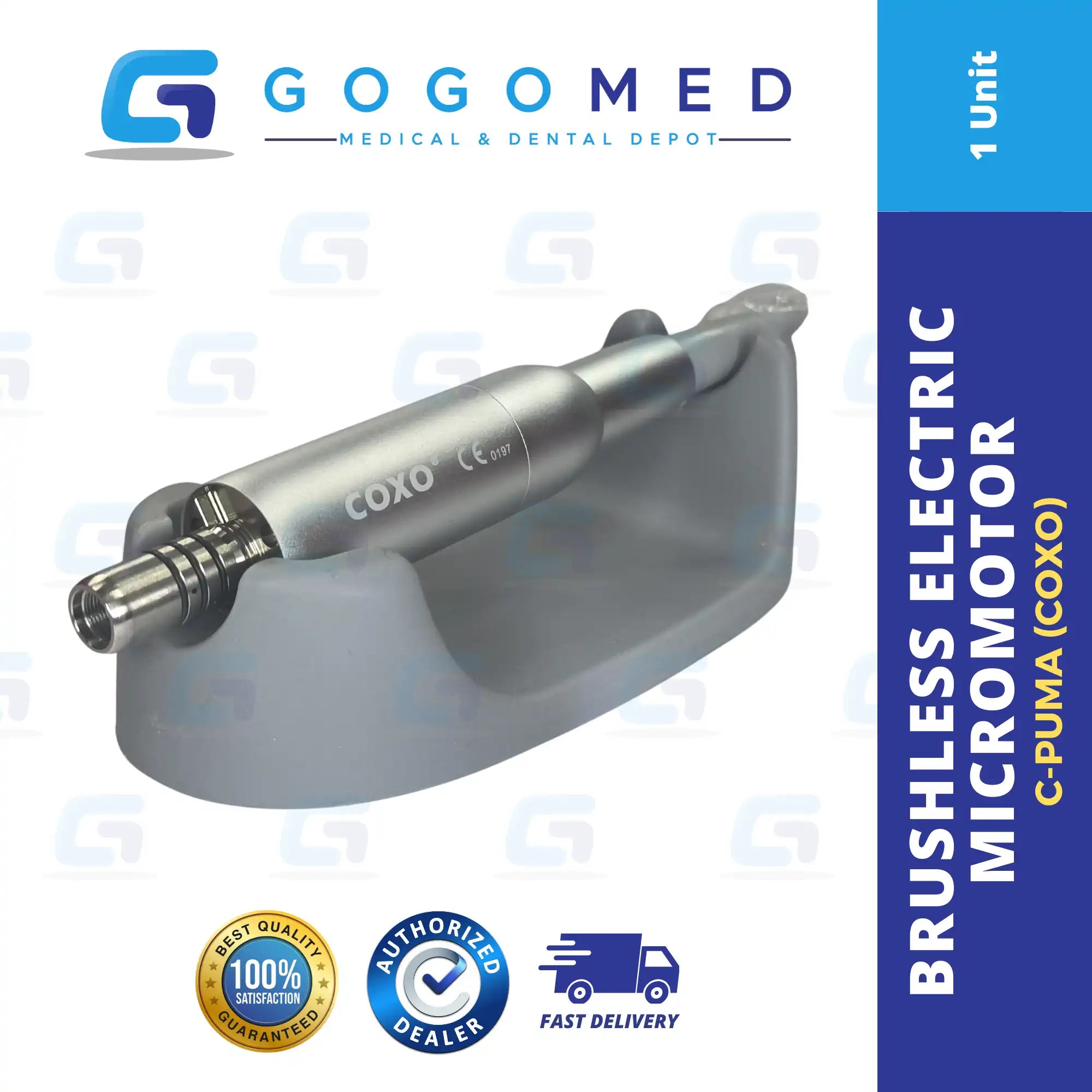

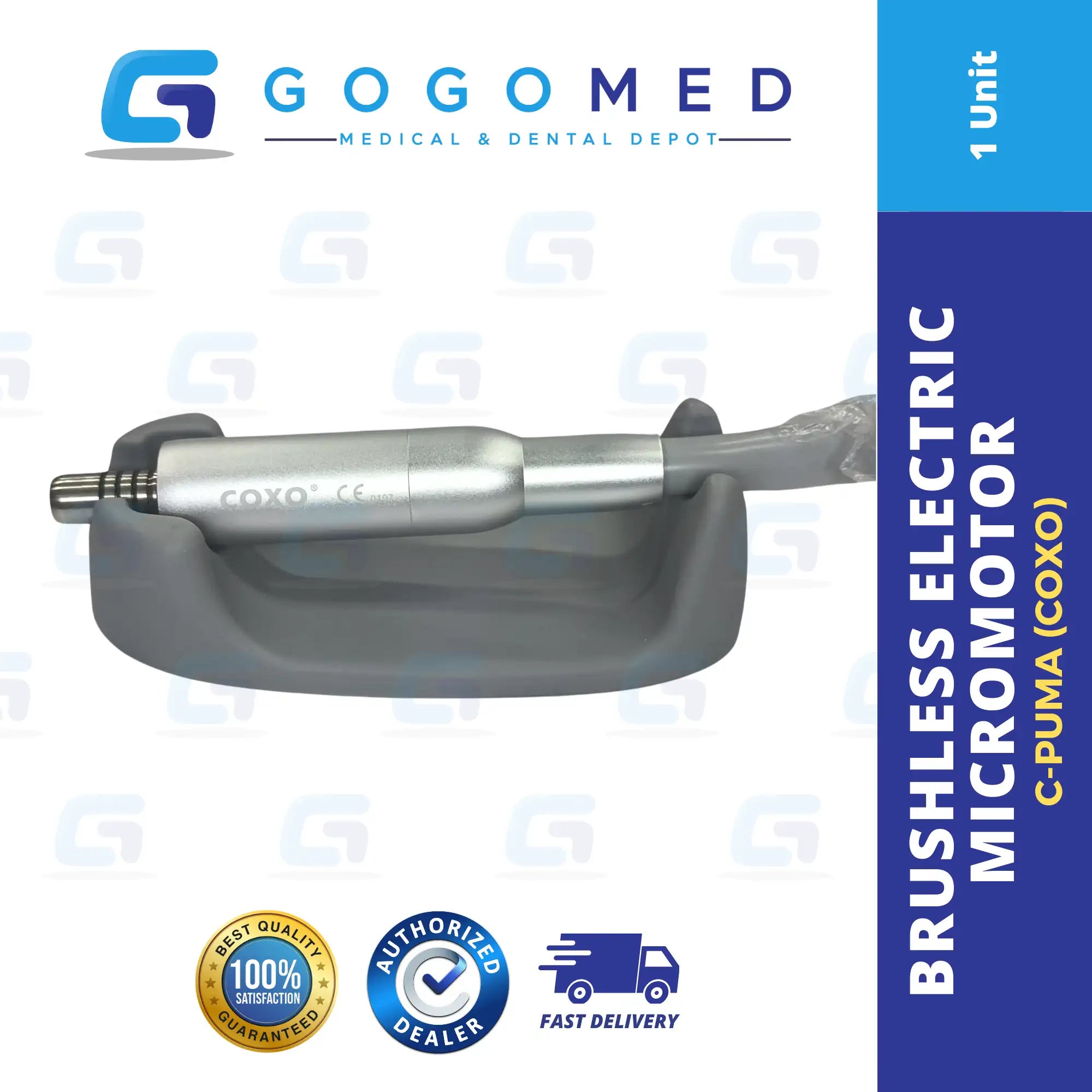

Micro motor
Torque output: Max. 2.5 N.cm

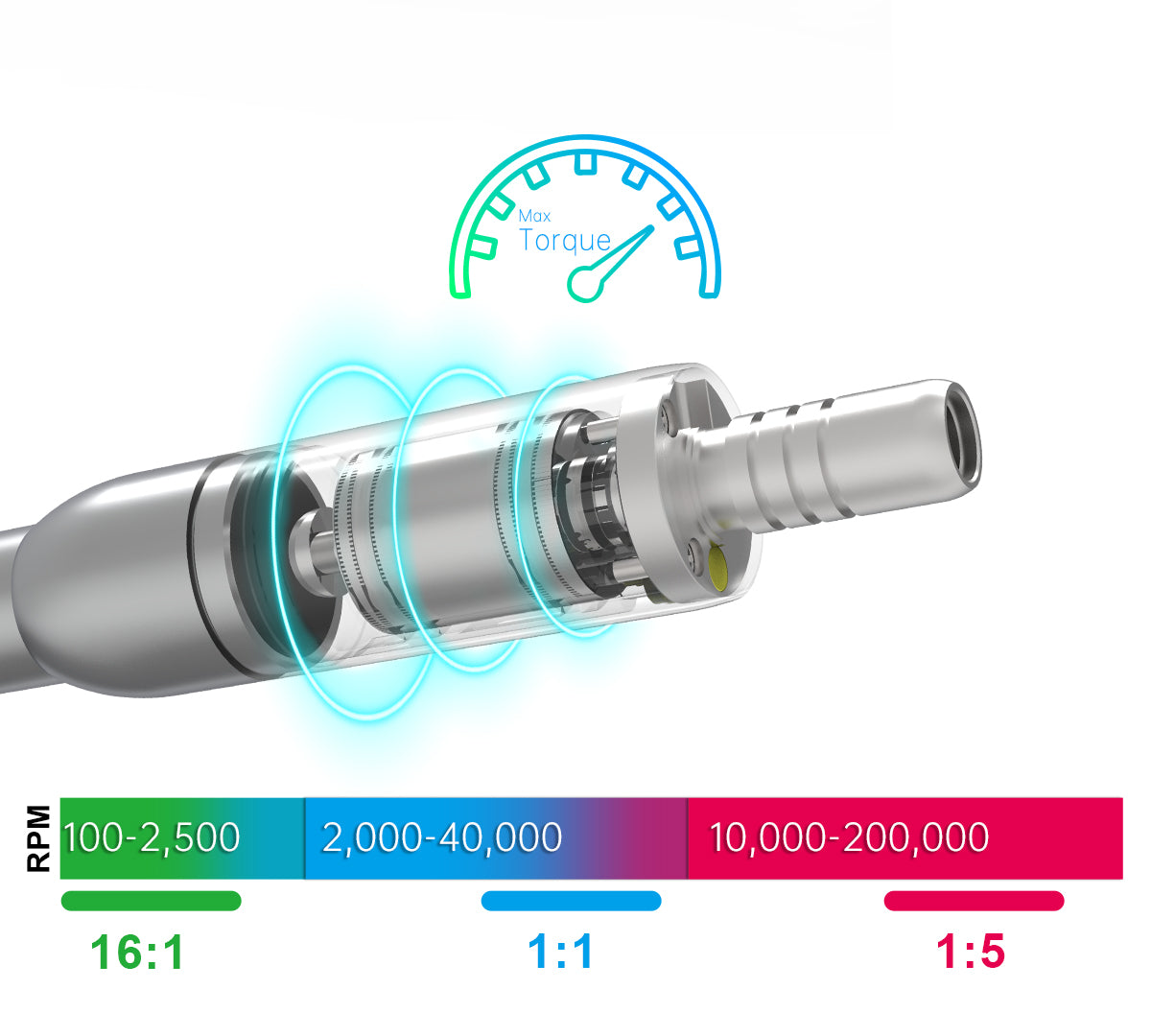

Speed range: 2000rpm-40000rpm (1:1)
125rpm-2500rpm(16: 1)
10000rpm-200000rpm(1: 5)

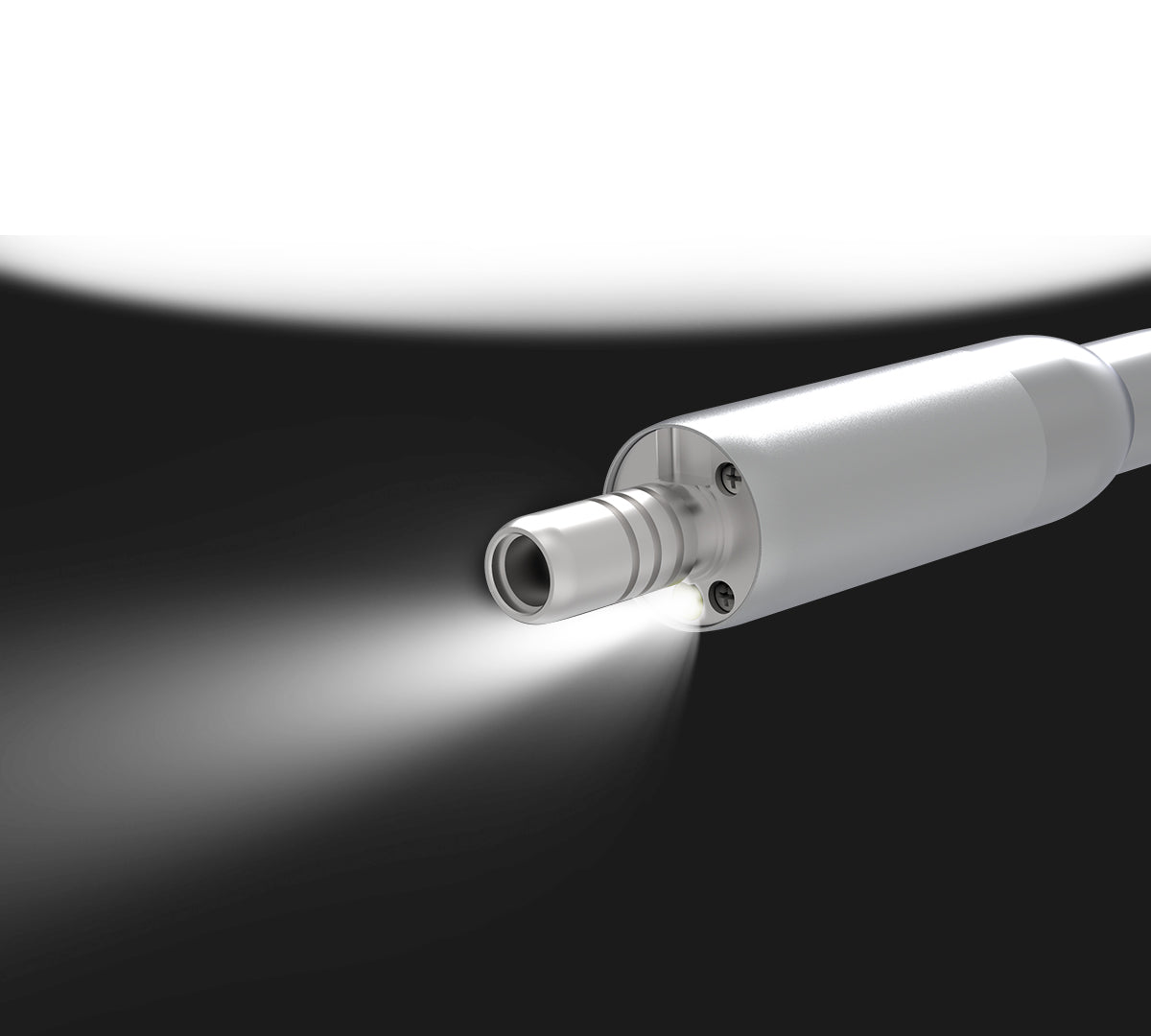

LED light > 25000LUX
Light: white LED
135℃ autoclaved sterilization（only for micromotor）
Volume: 126mm Ø 23m

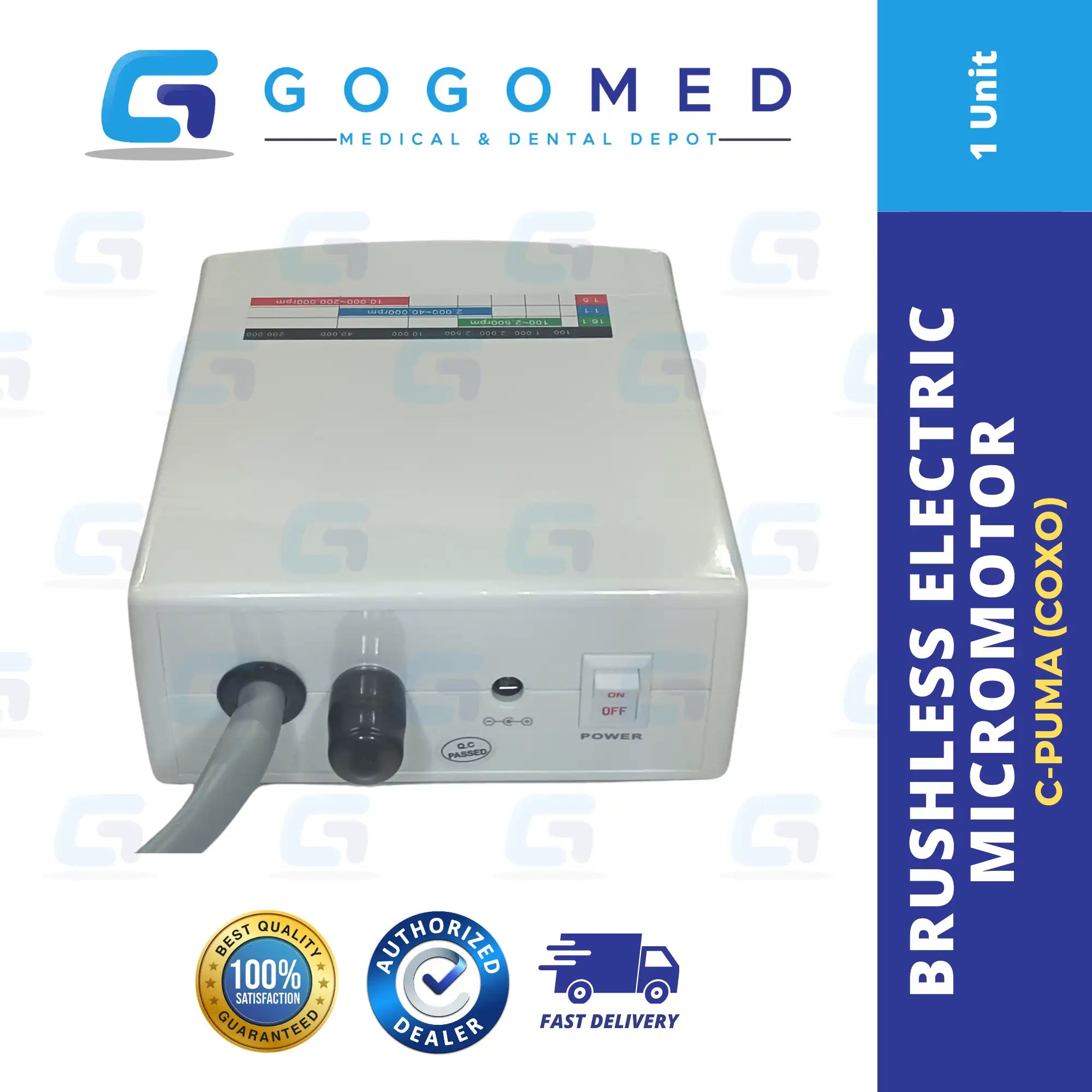

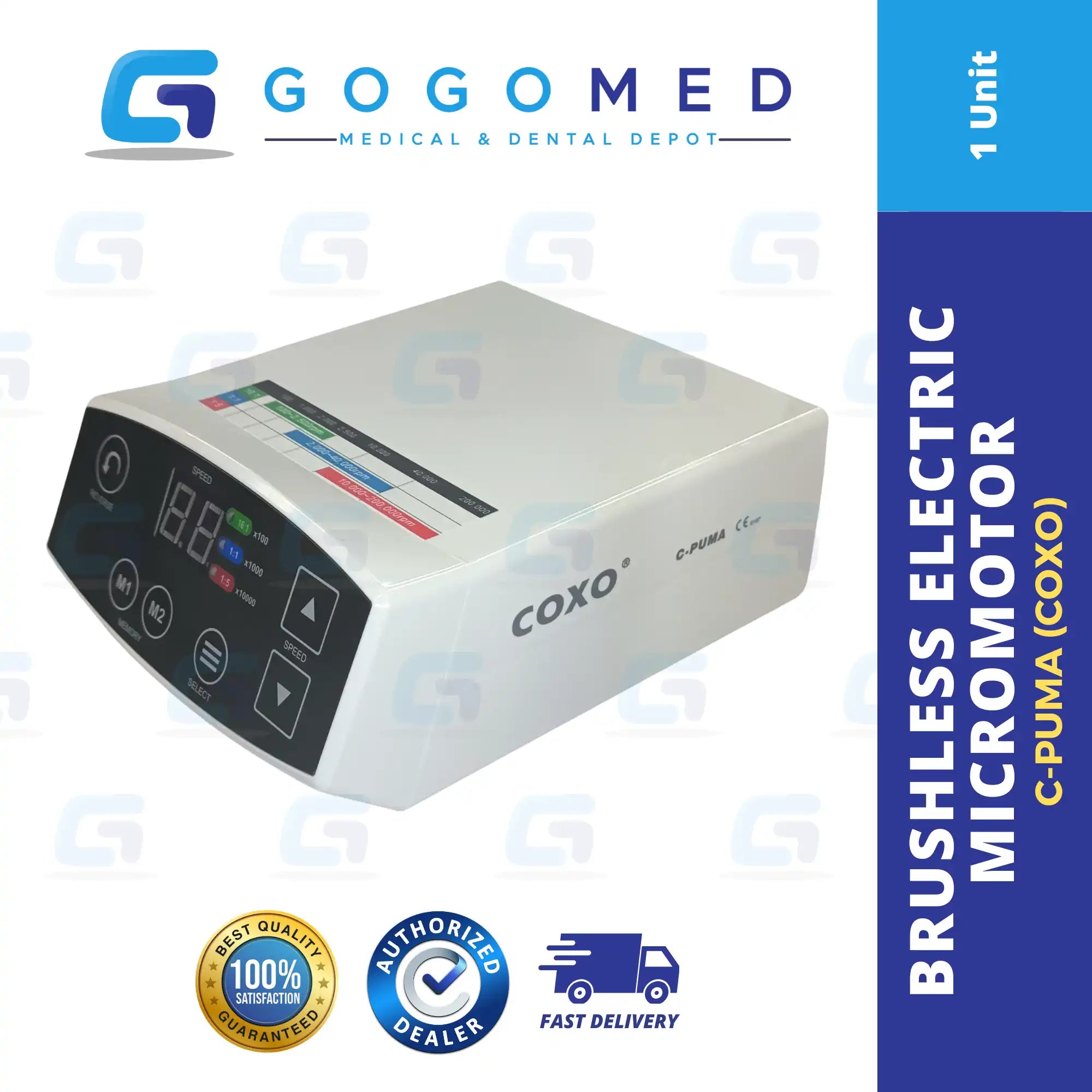

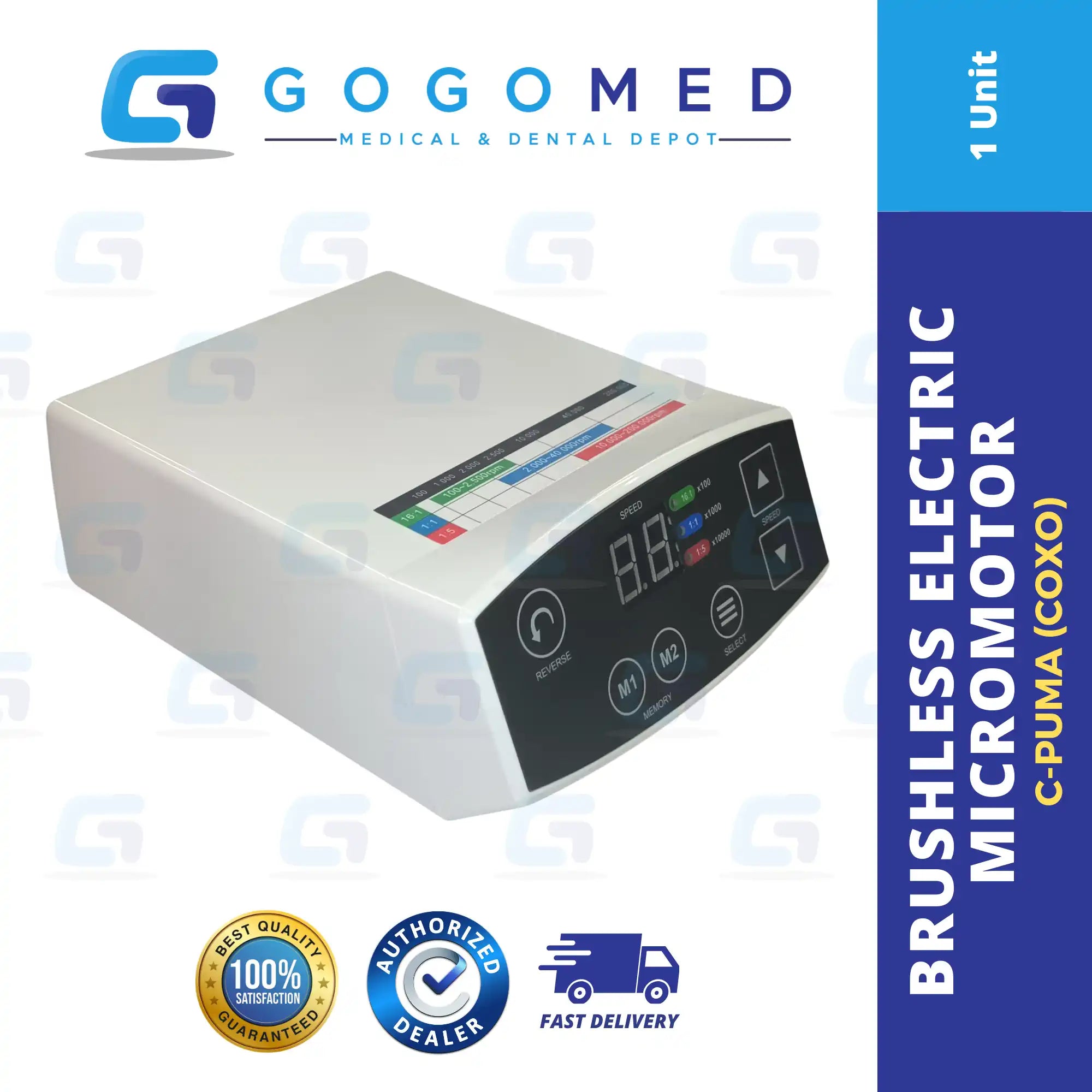

Main unit:
Voltage: AC 100-240V
Out: Max. 120W
