Scaler Tip (EMS/Woodpecker Compatible)

Compatible with any EMS/Woodpecker Scaler

Specifications:

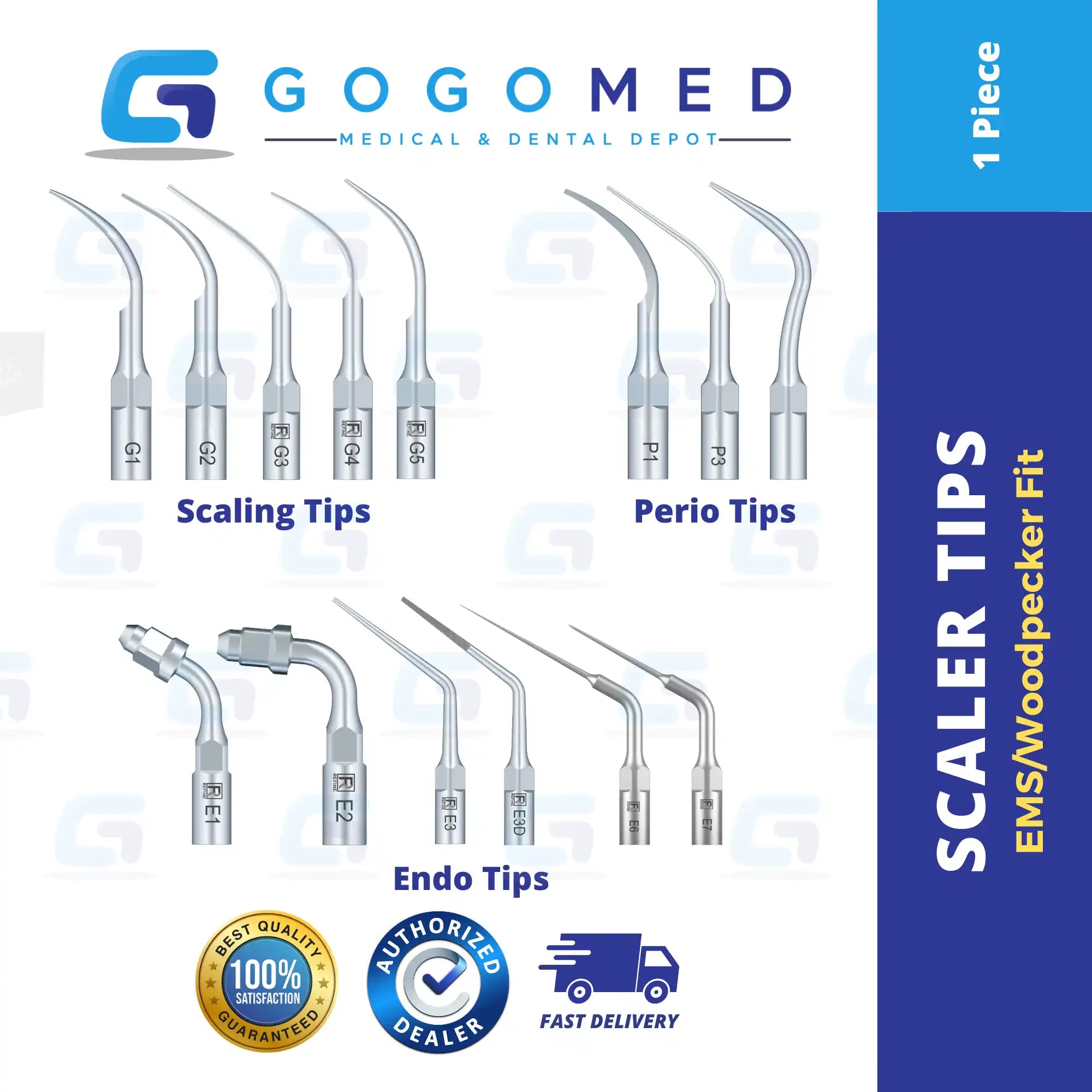

Scaling tips--
G1 used to remove calculus plaque on supragingival, neck of teeth and hard calculus on the teeth point.

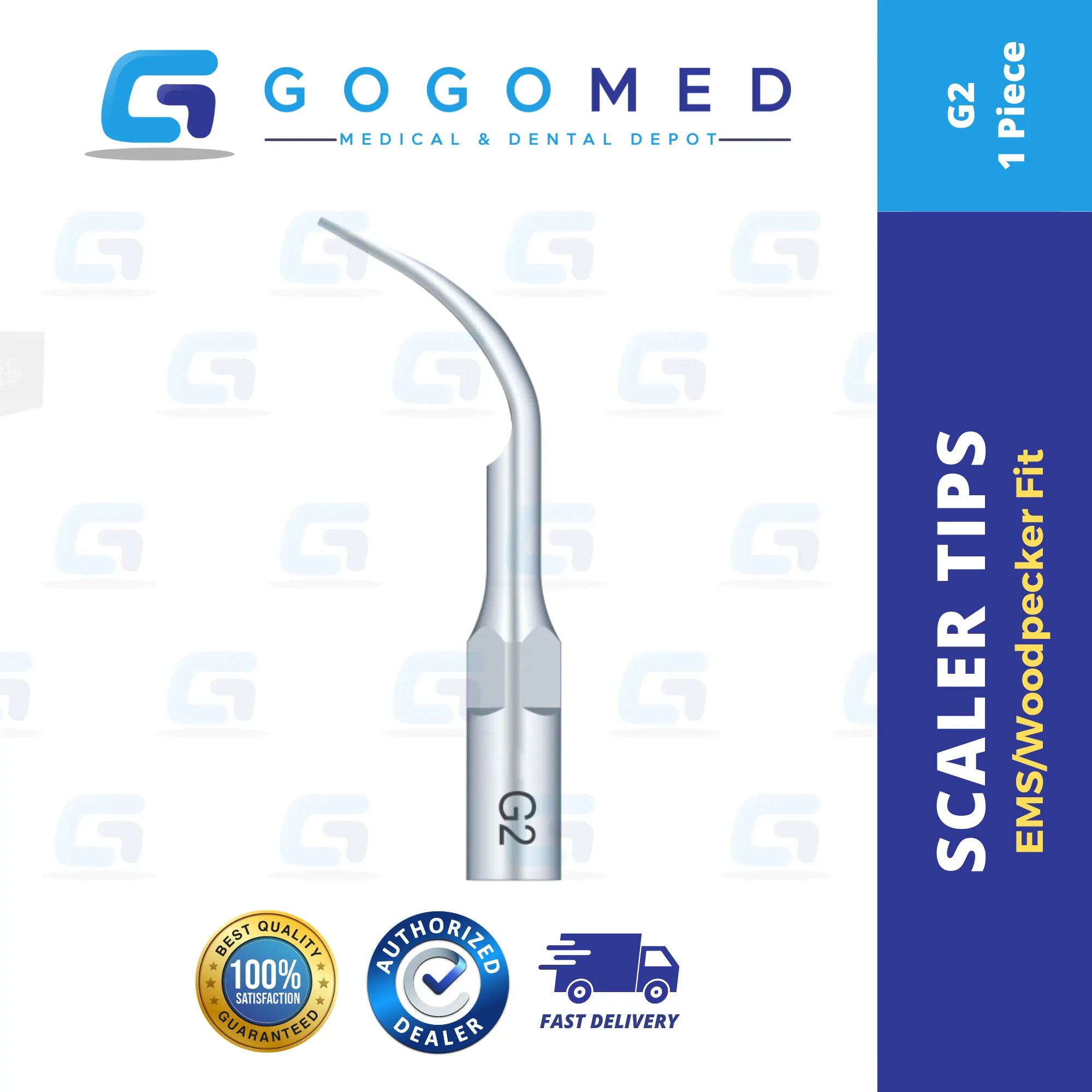

G2 used to remove supragingival heavy calculus.

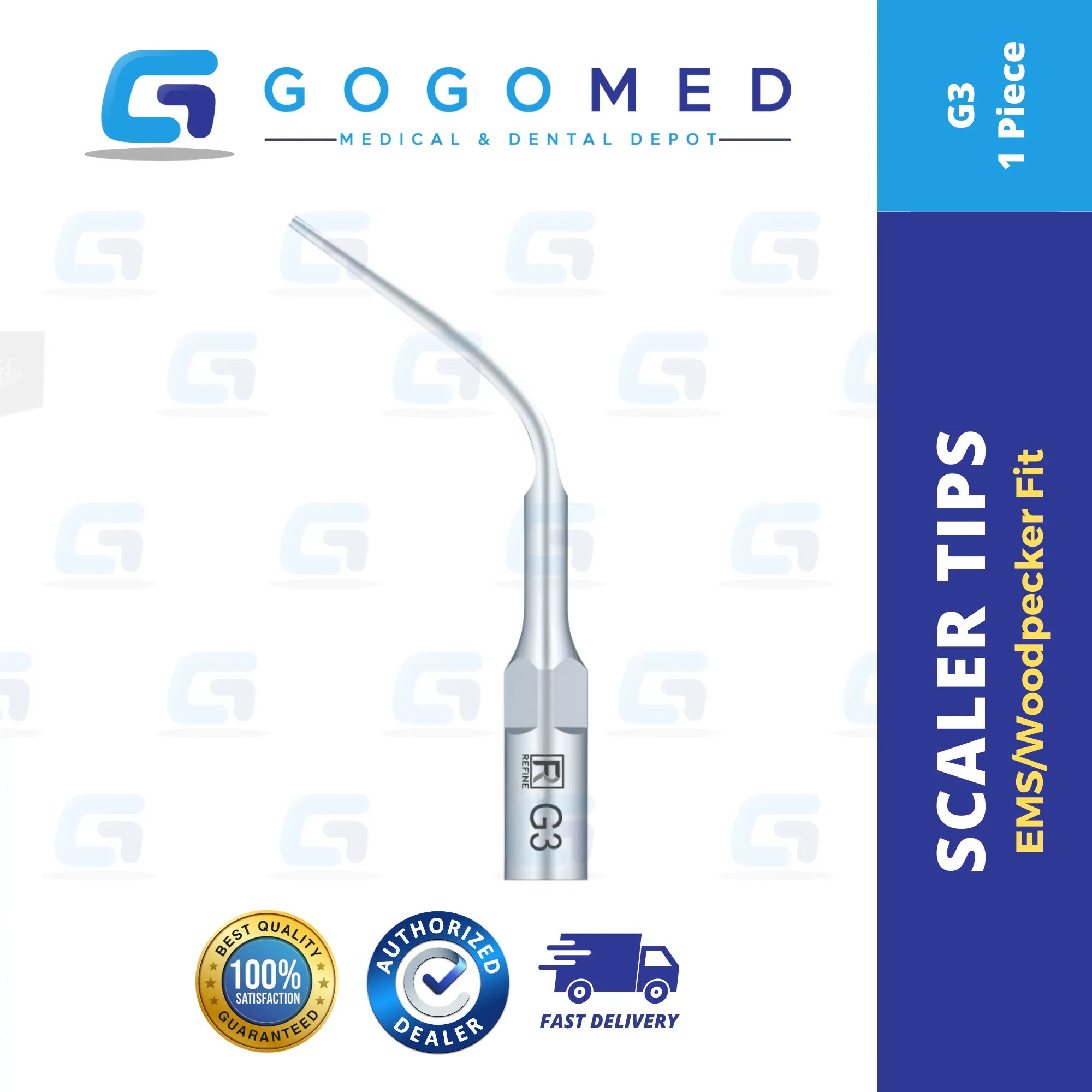

G3 used to remove the calculus of supragingival, subgingival and interdental.

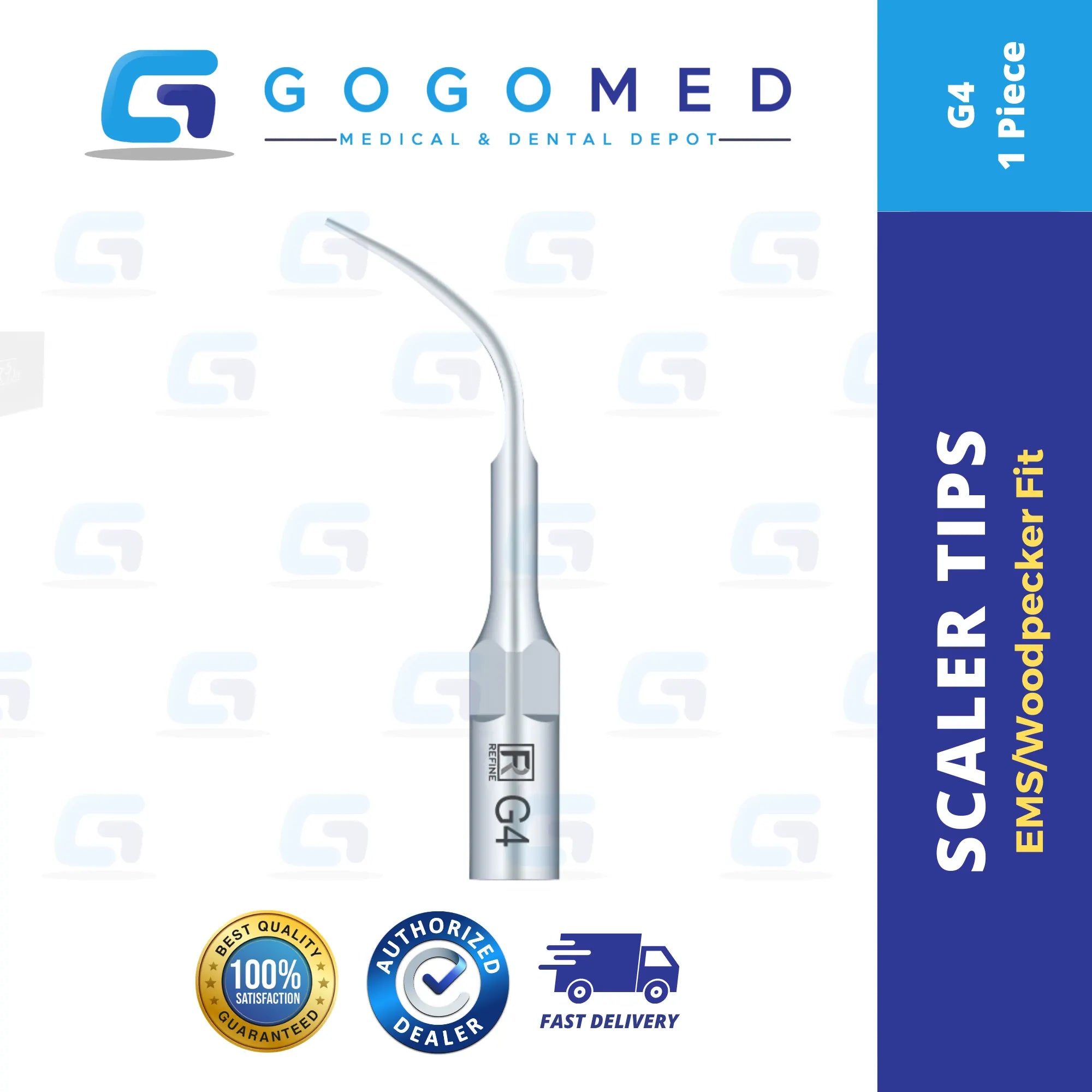

G4 used to remove all supragingival calculus and plaque.

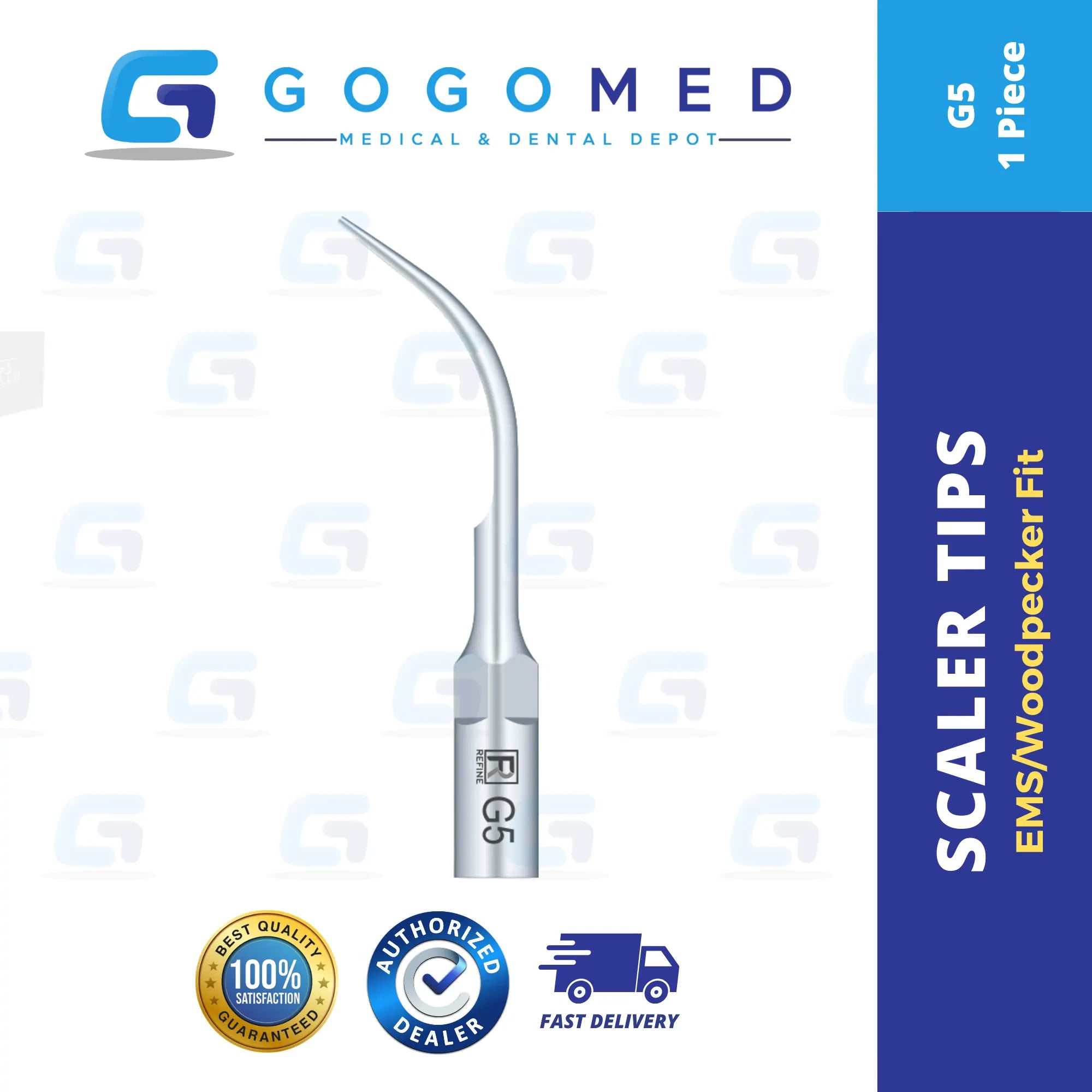

G5 used to remove supragingival and neck calculus and plaque.

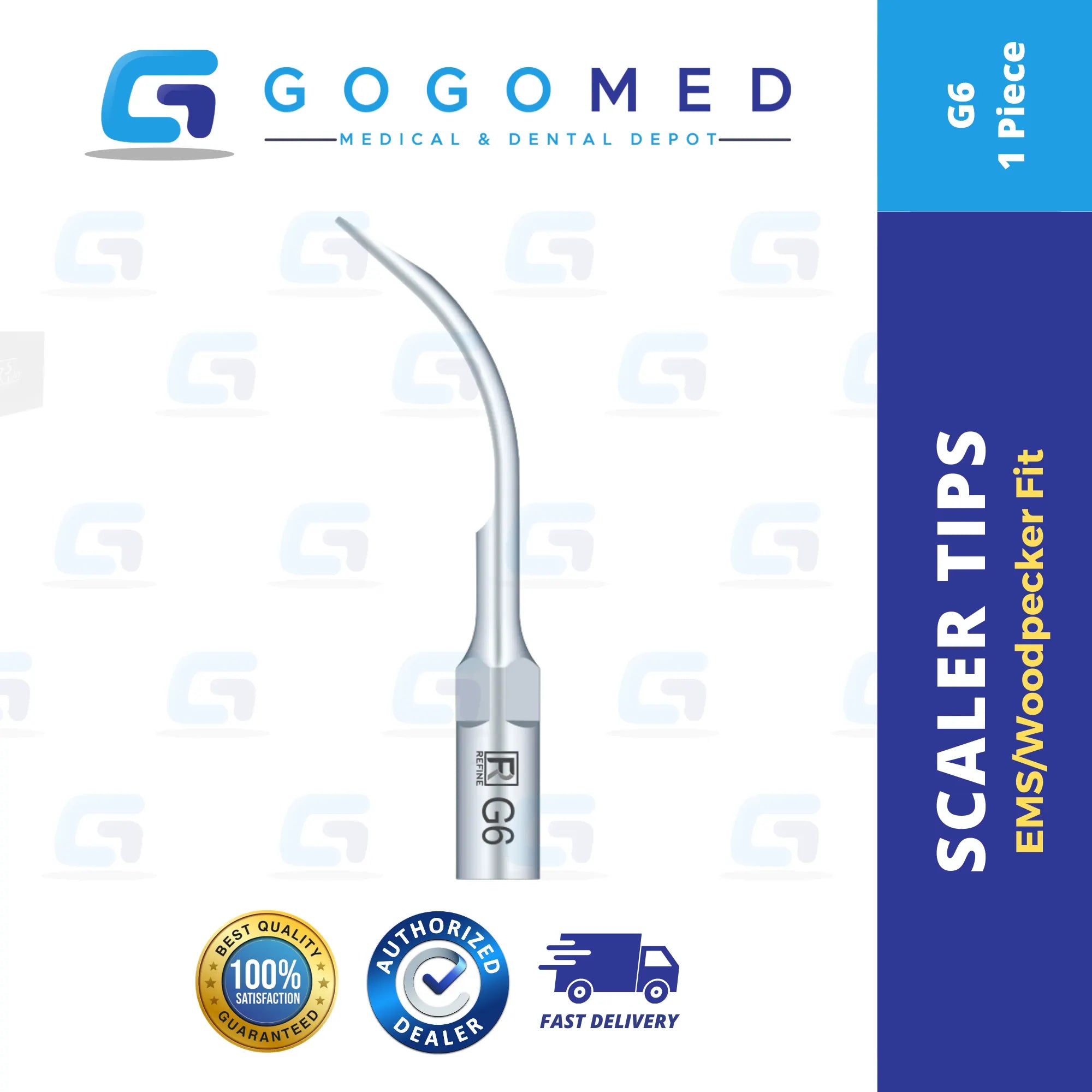

G6 used to remove supragingival heavy calculus.

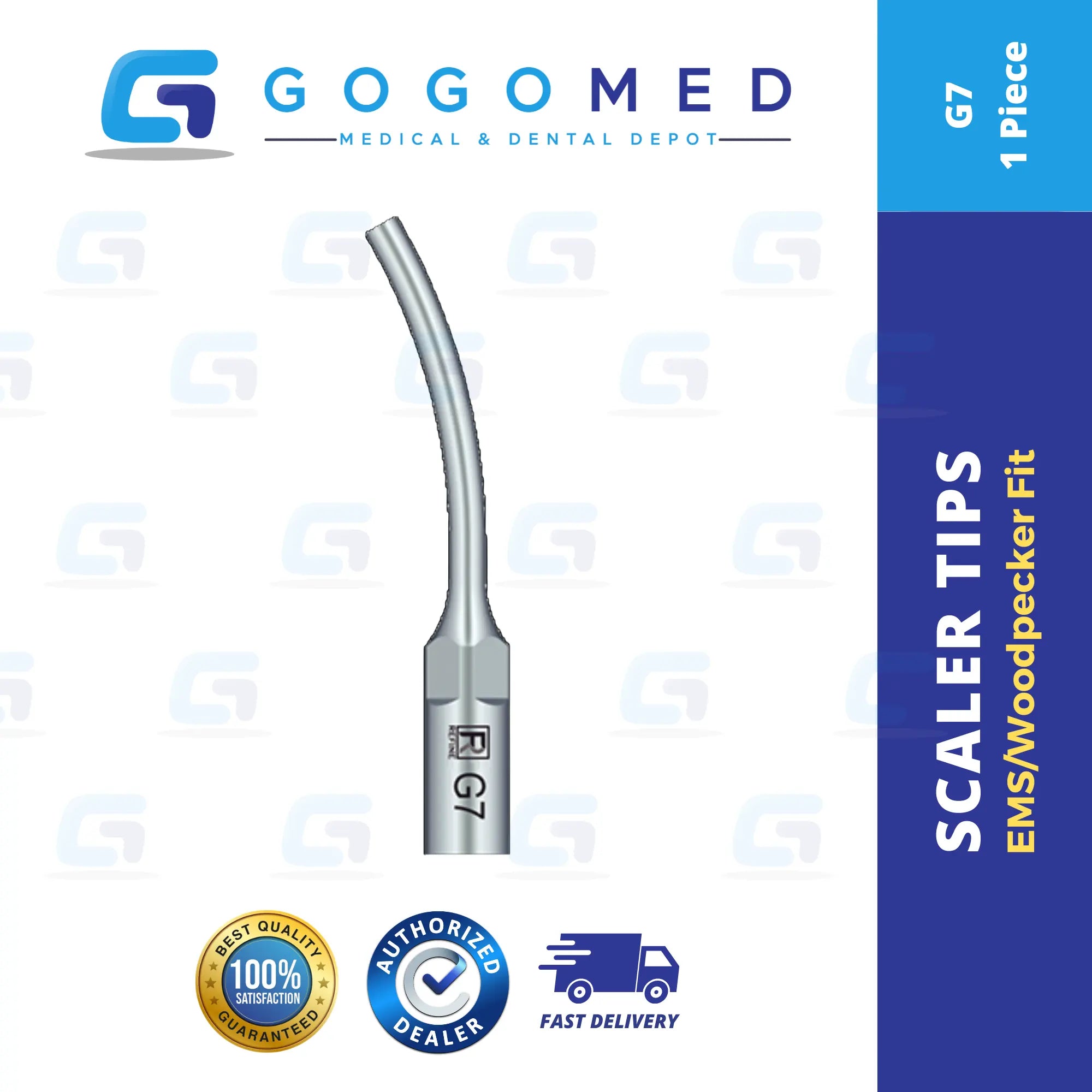

G7 applied to removing crown. Put the tip onto neck surface of crown and activate the scaler.

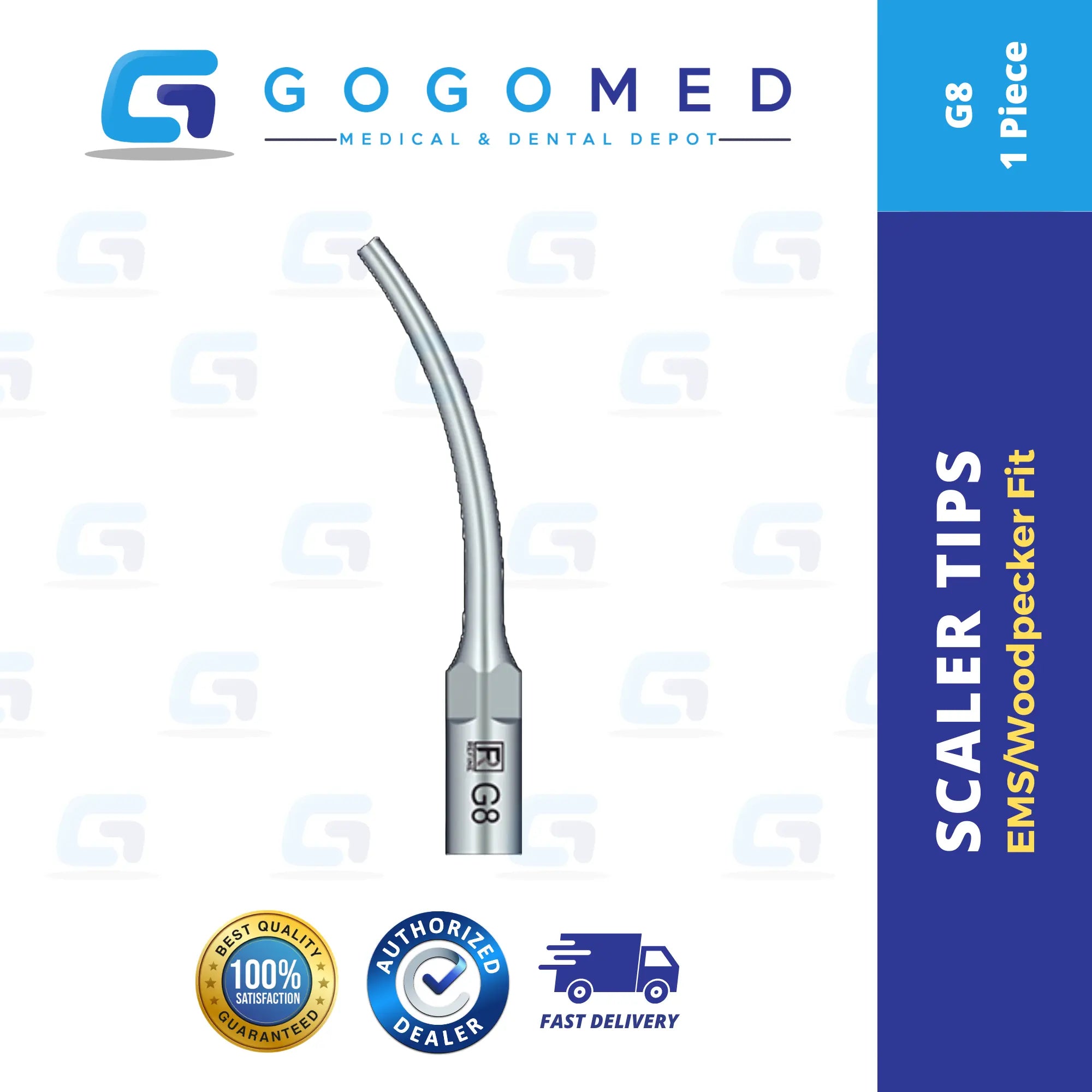

G8 used to remove post. Put the tip onto the post and activate the scaler.

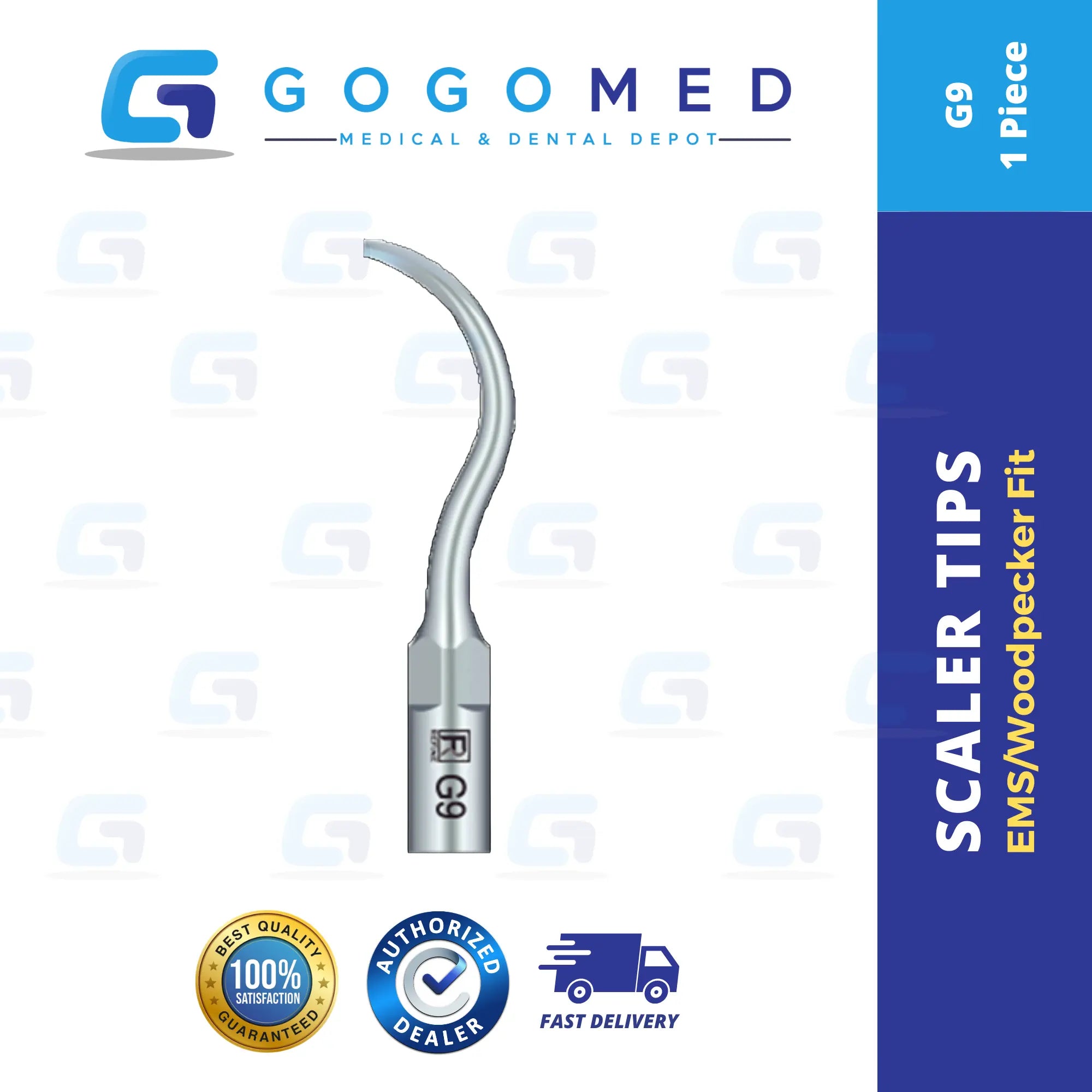

G9 used to remove supragingival calculus, interdental calculus and calculus on the neck of teeth.
G10 used to remove supragingival calculus in all quadrants, including interproximal and sulcus areas.

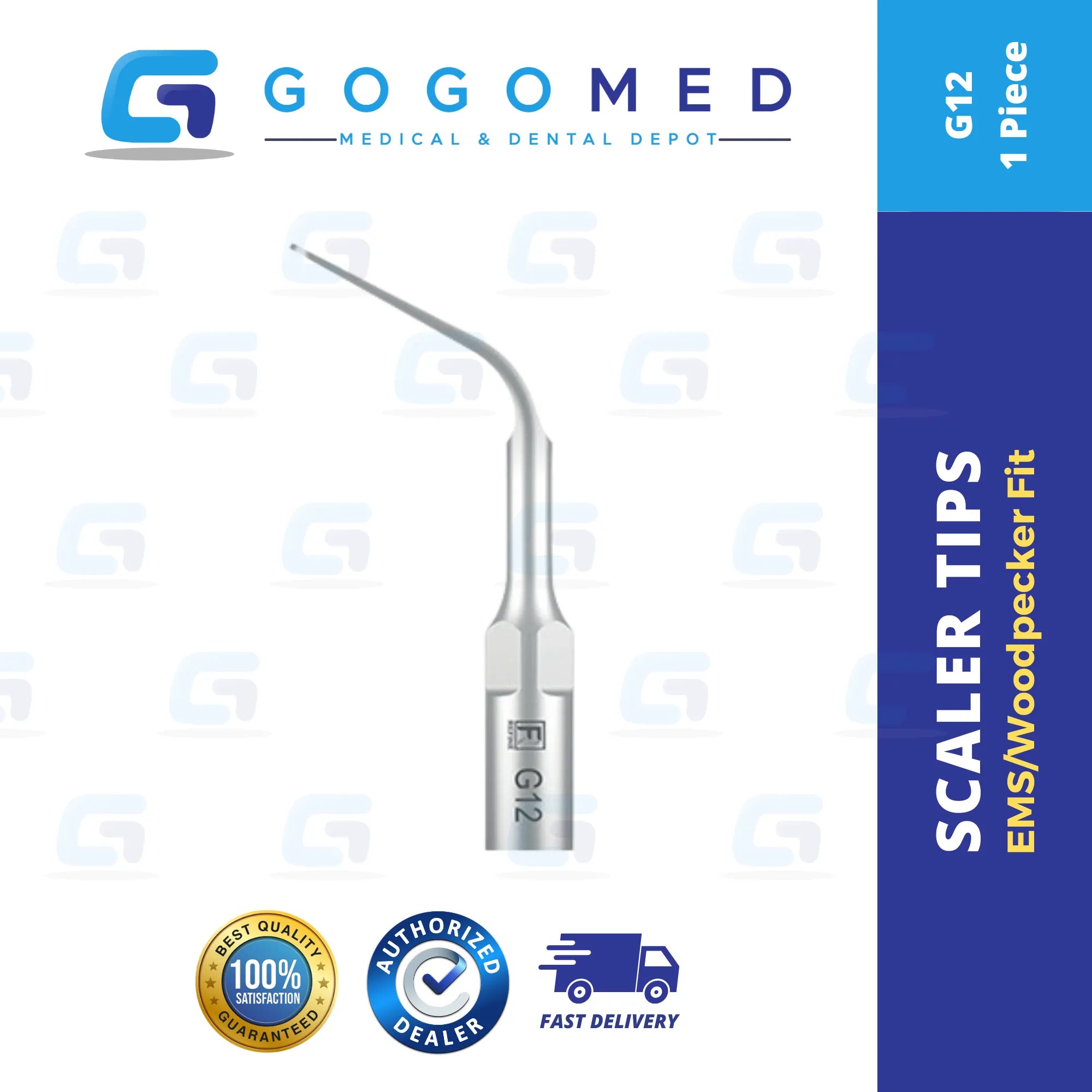

G12 used to remove supragingival calculus on lingual surfaces in all quadrants.

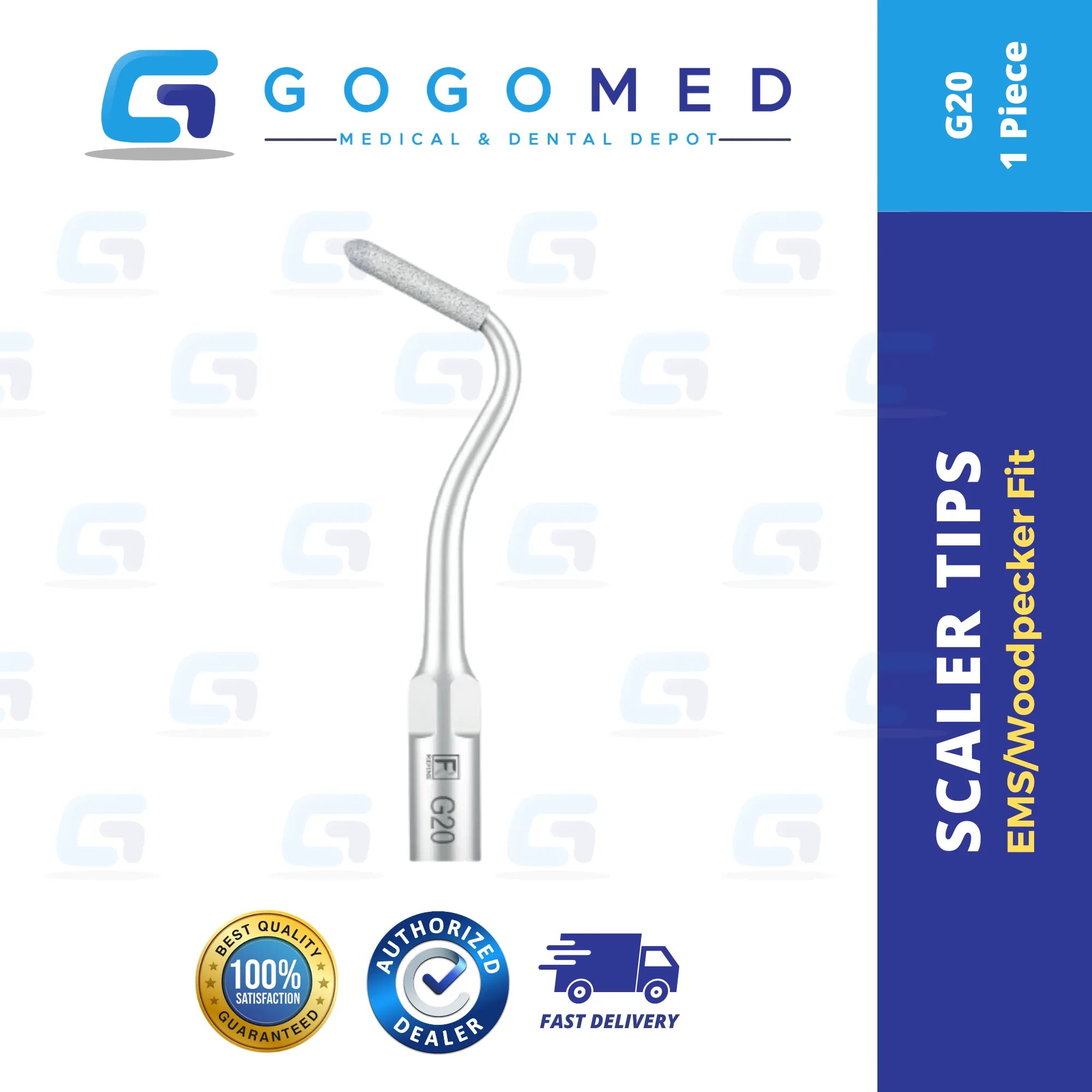

G20 is a diamond coated (50um grit) tip for dentin abrading. Applied to supragingival shoulder preparation after using the dental bur for subgingival shoulder preparation.

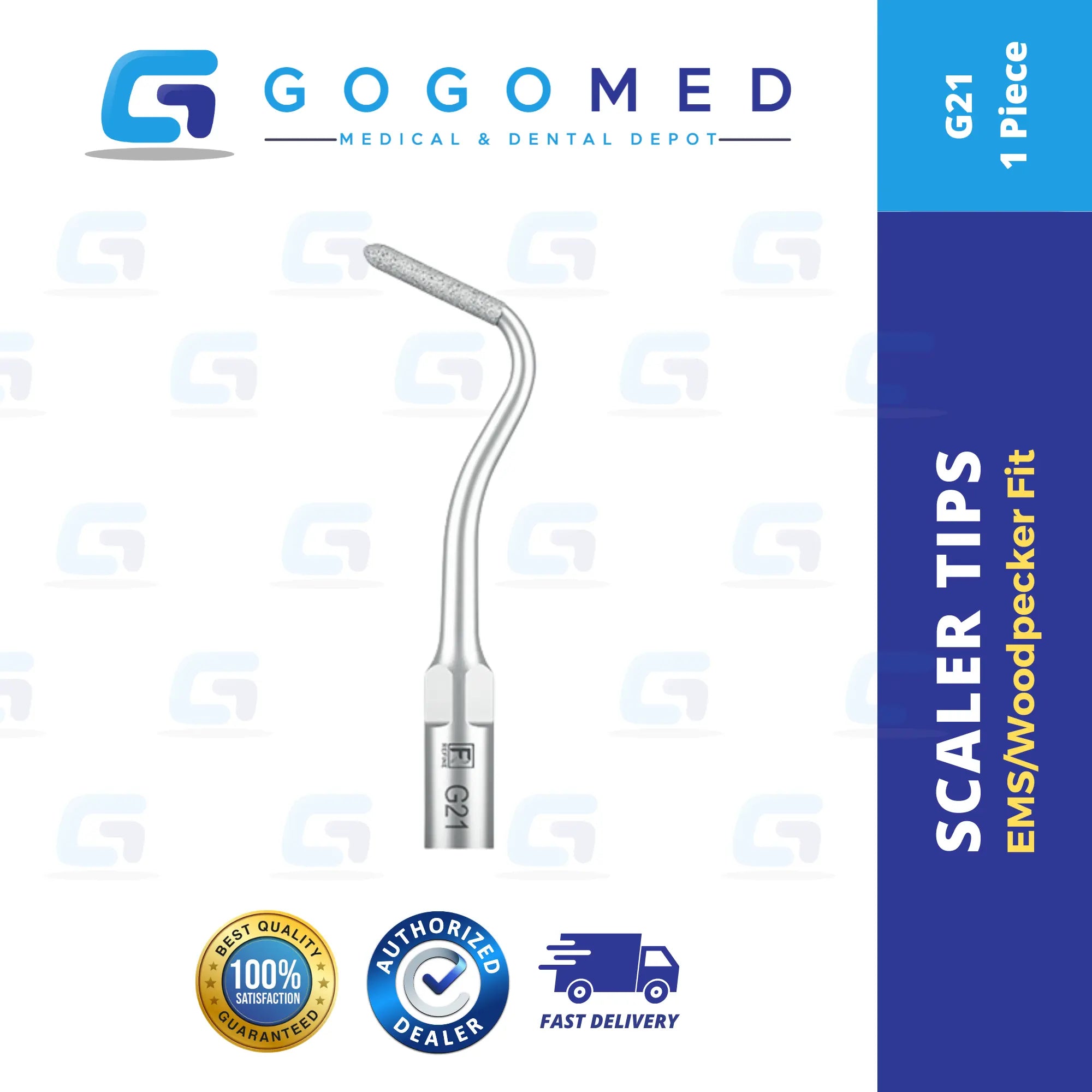

G21 is a diamond coated (120um grit) tip for dentin abrading. Applied to polish prepared supragingival and subgingival shoulder.

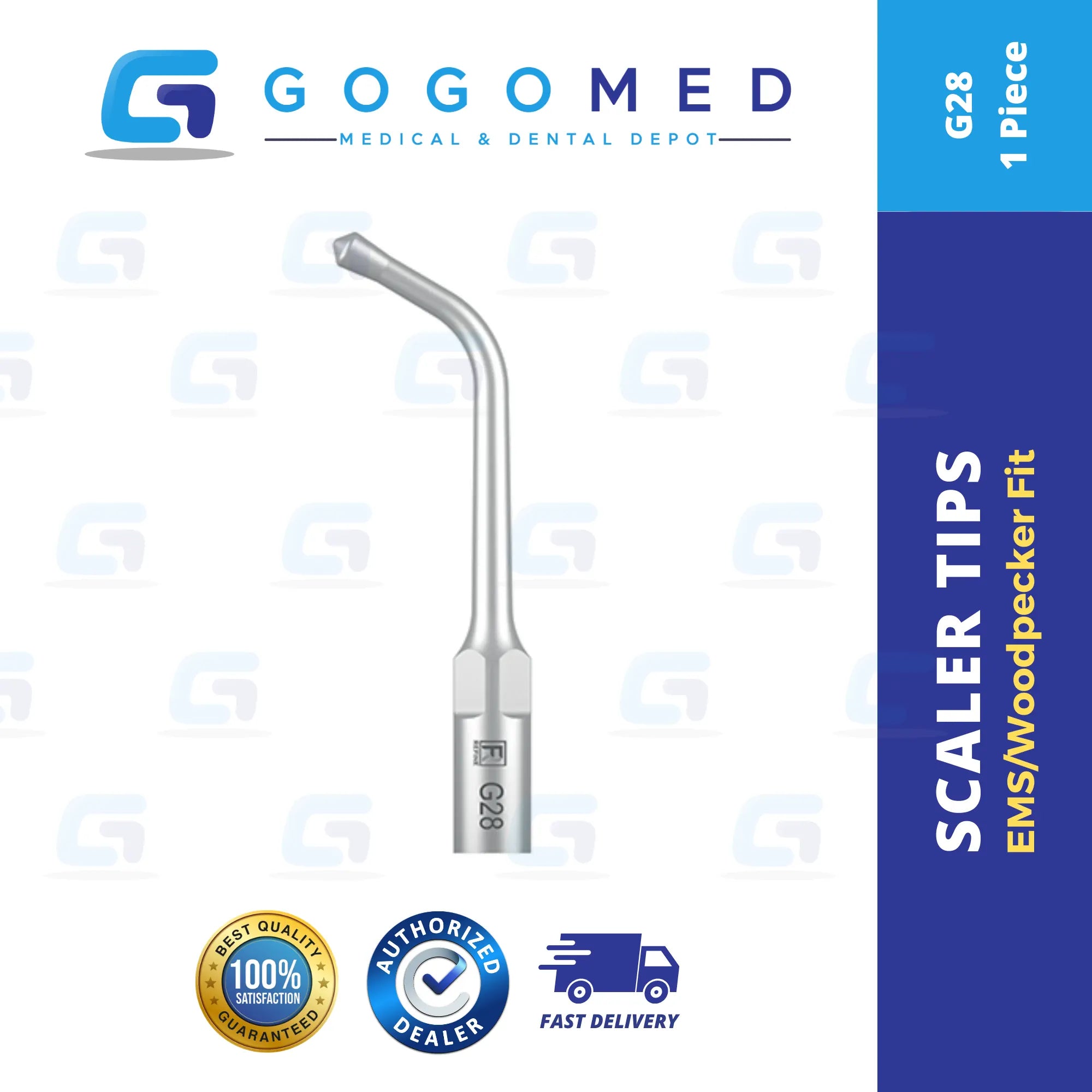

G28 used for amalgam condensation.

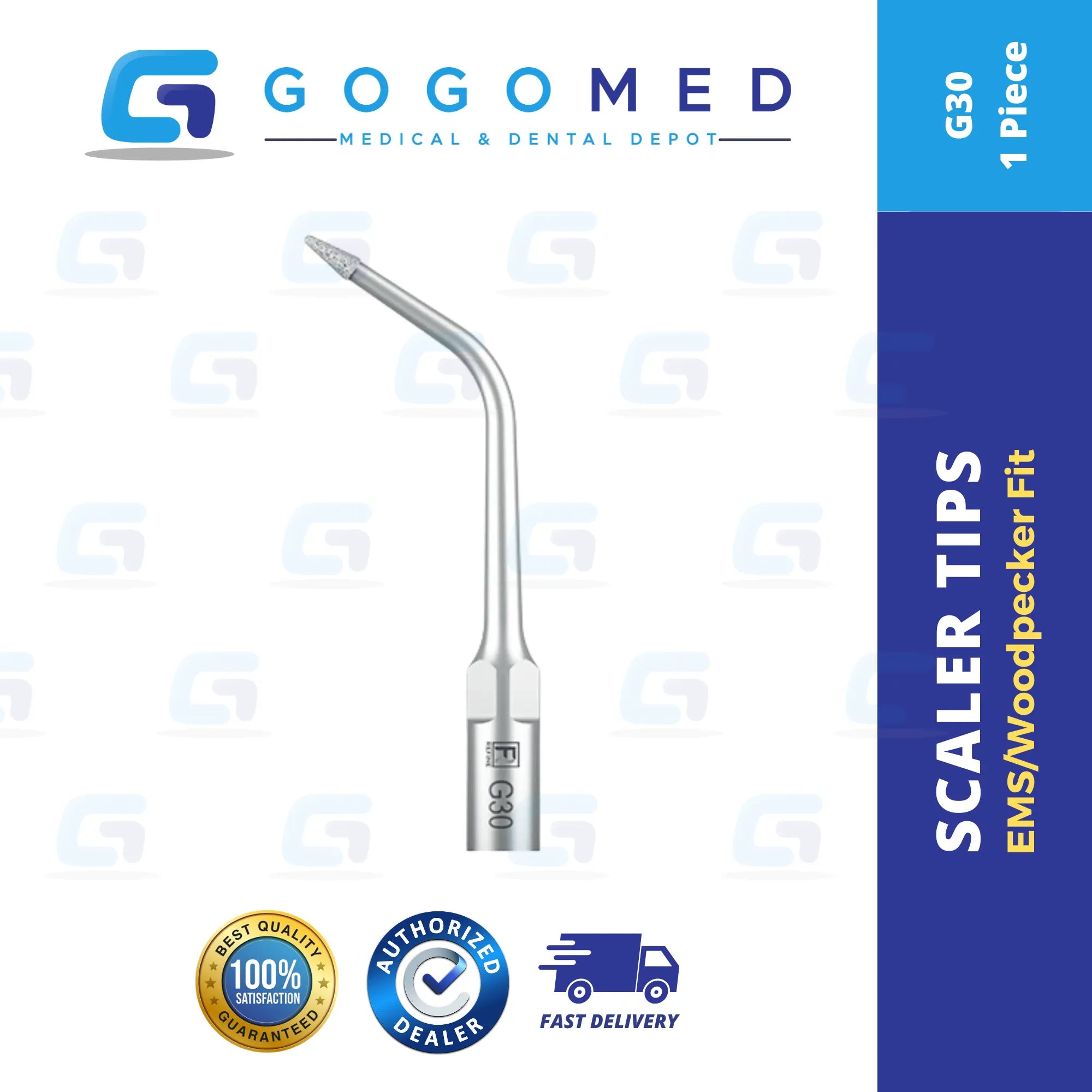

G30 is a diamond coated (90um grit) tip for preparation between pits and fissures.

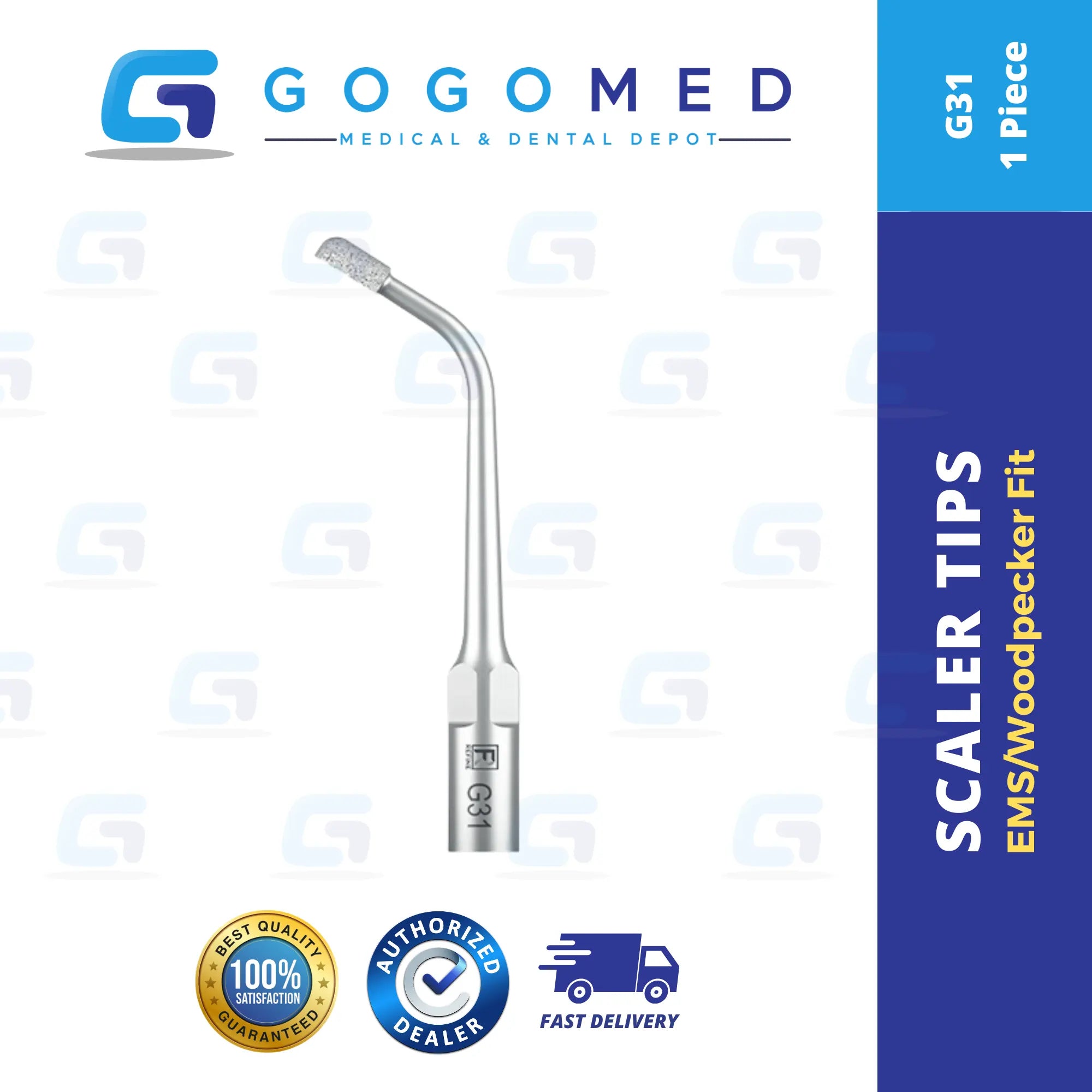

G31 is a diamond coated (90um grit) tip for preparation of the mesial cavity.

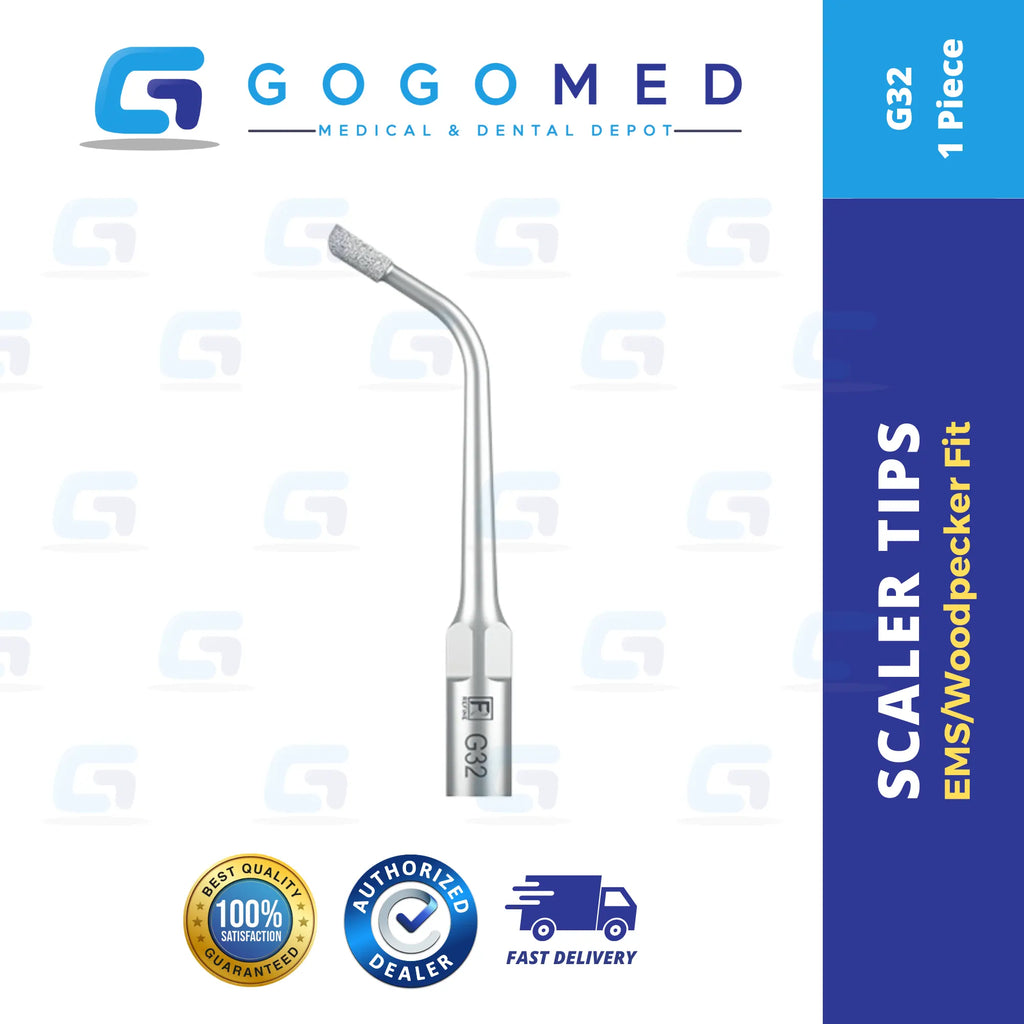

G32 is a diamond coated (90um grit) tip for preparation of the distal cavity.

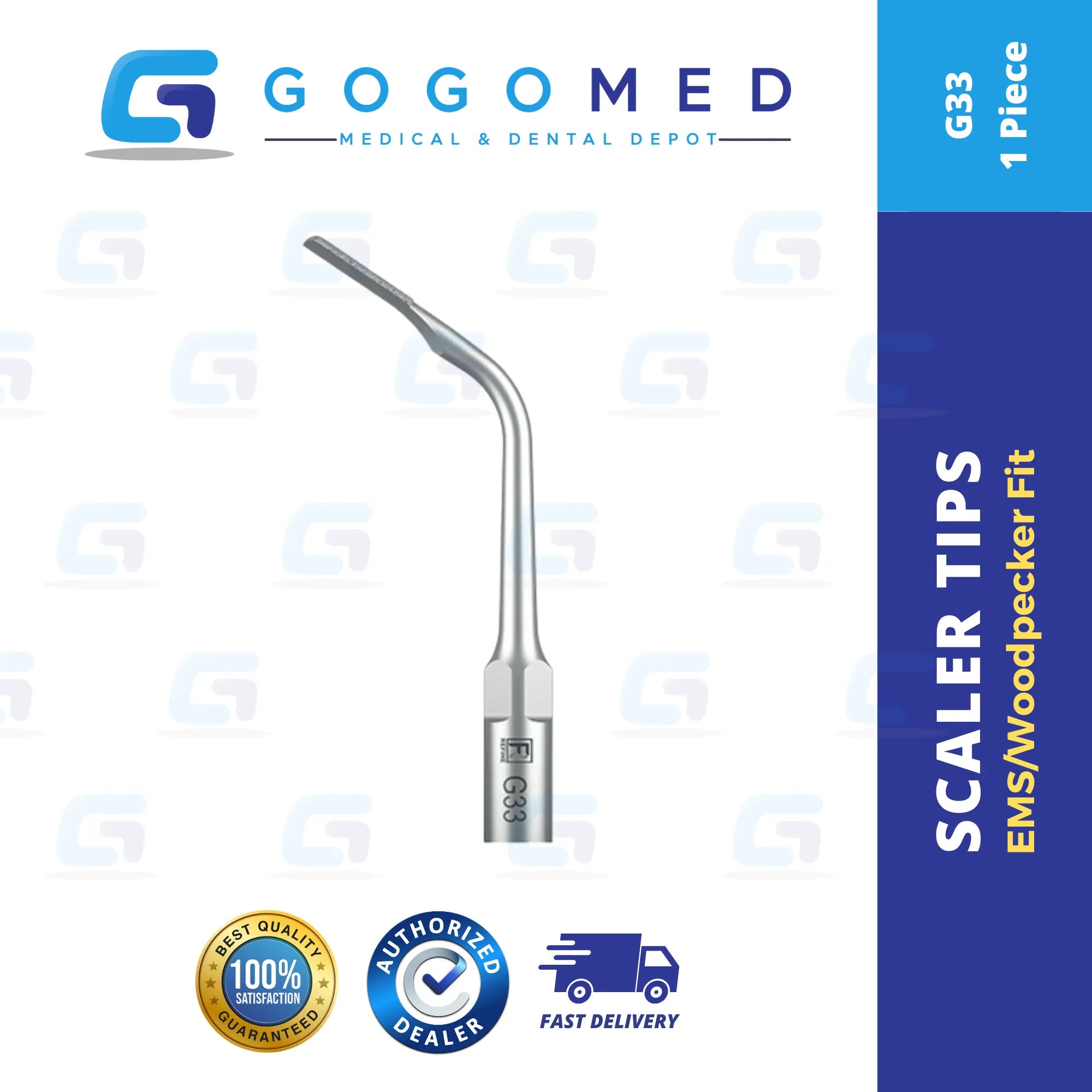

G33 is a diamond coated (90um grit) tip for preparation of the tooth veneers.

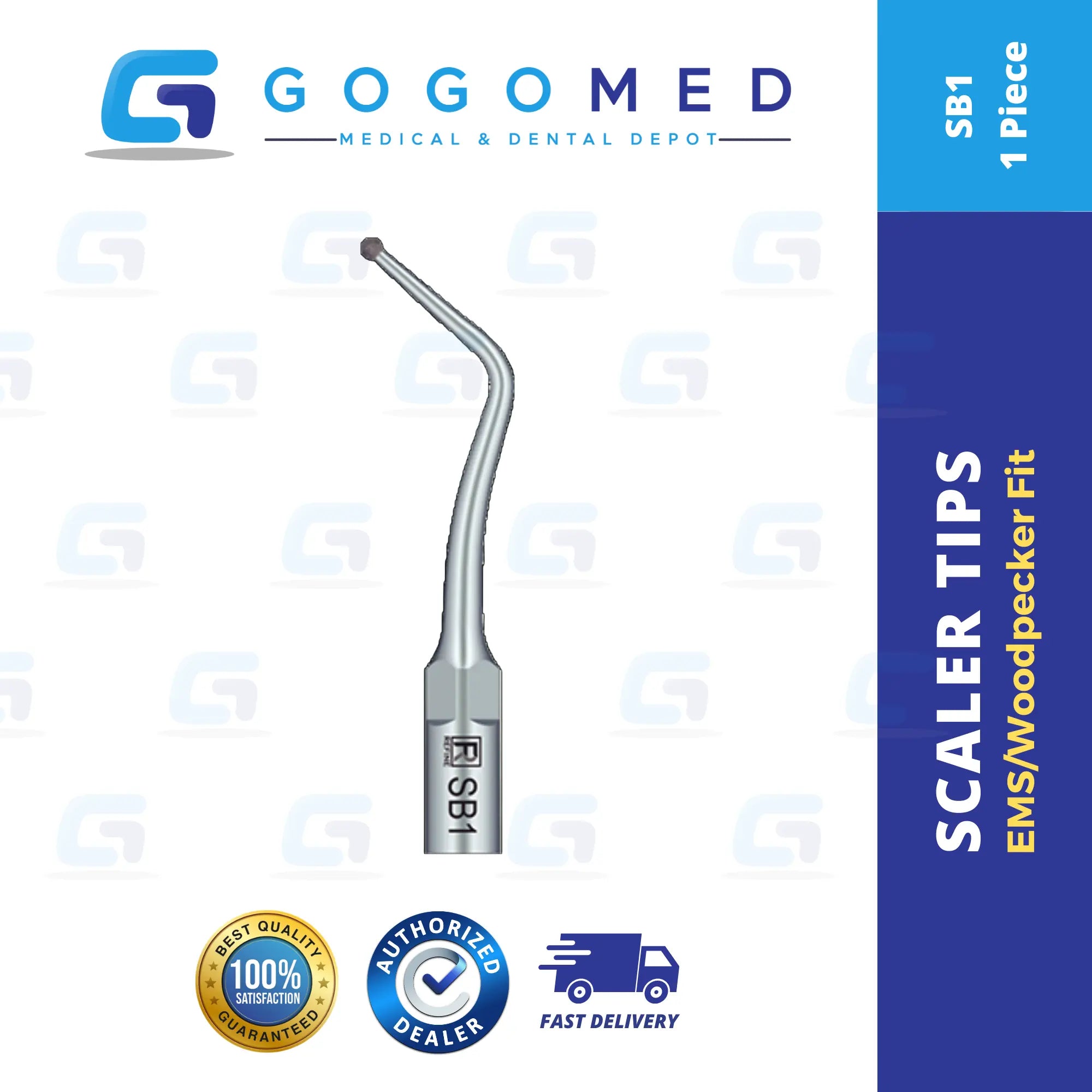

SB1 Diamond coated (85um) tip for removing caries on teeth neck and oeclusal surface of teeth.
SB2 Diamond coated (85um) tip for removing caries on teeth neck and oeclusal surface of teeth.

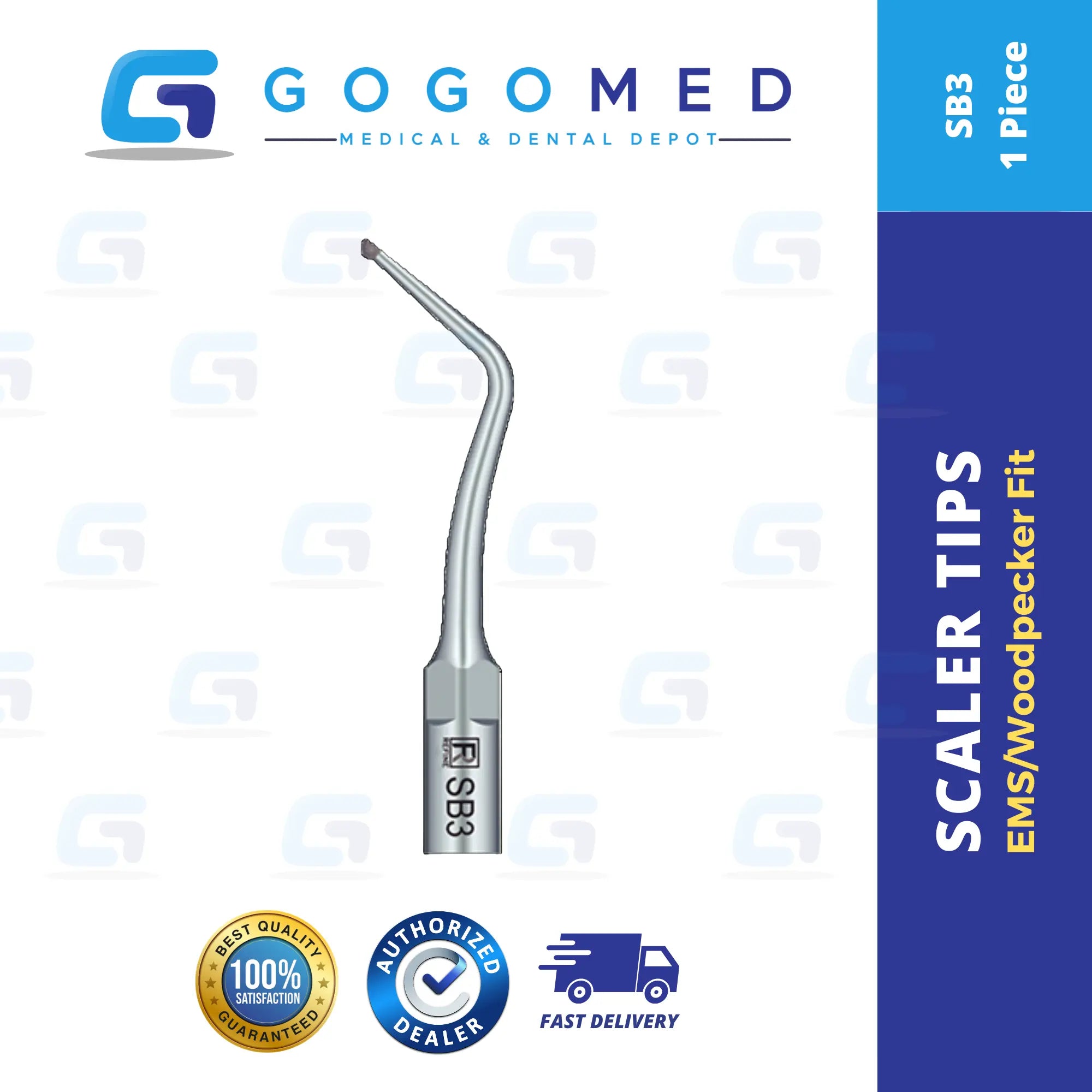

SB3 Diamond coated (85um) tip for removing caries on distal surface of the adjacent teeth.
SBL Left curved diamond coated (85um) tip for removing caries, it will not hurt the adjacent teeth from right to left 45 degree.
SBR Right curved diamond coated (85um) tip for removing caries, it will not hurt the adjacent teeth from right to left 45 degree.

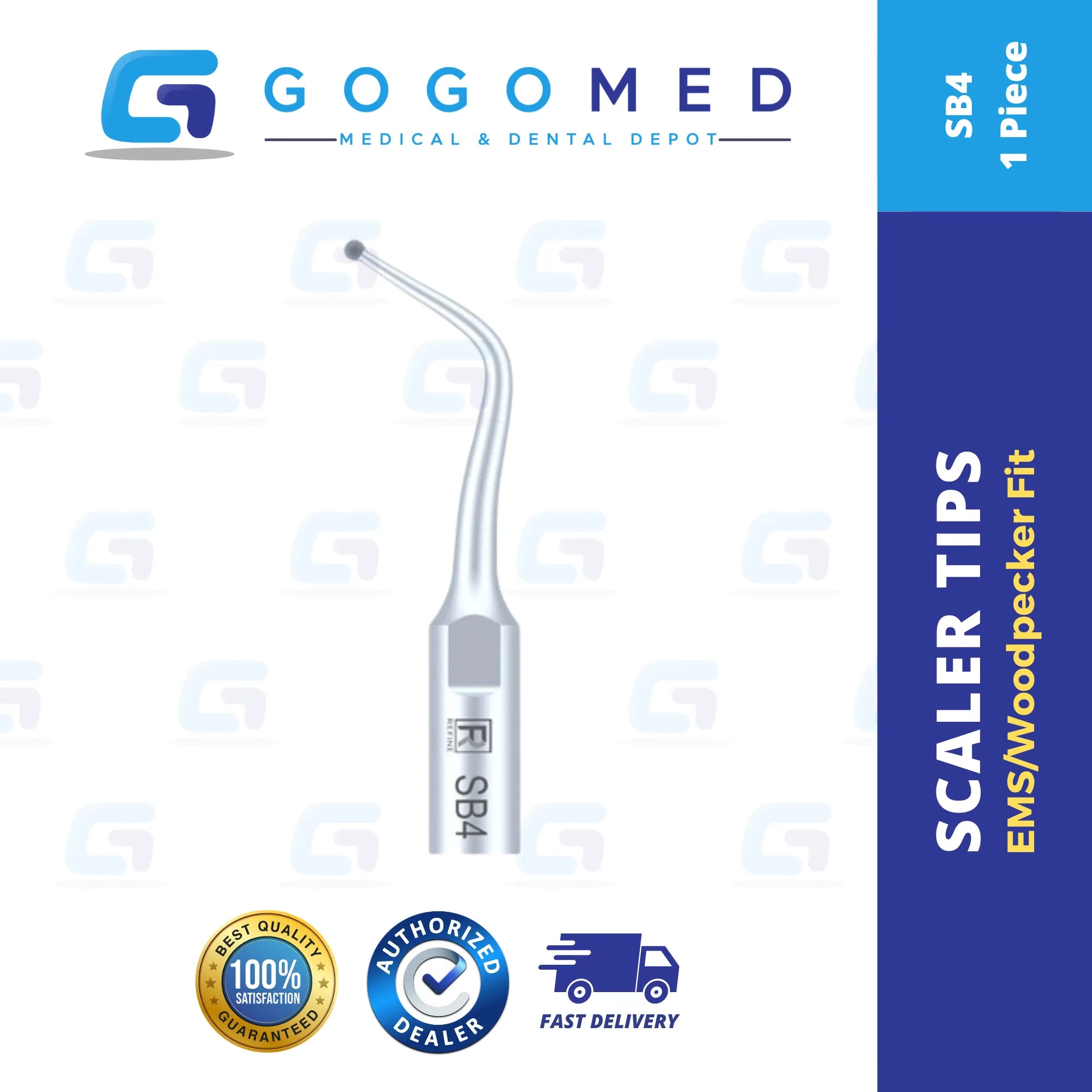

SB4 Diamond coated (85um) tip for removing caries on teeth neck and oeclusal surface of teeth.

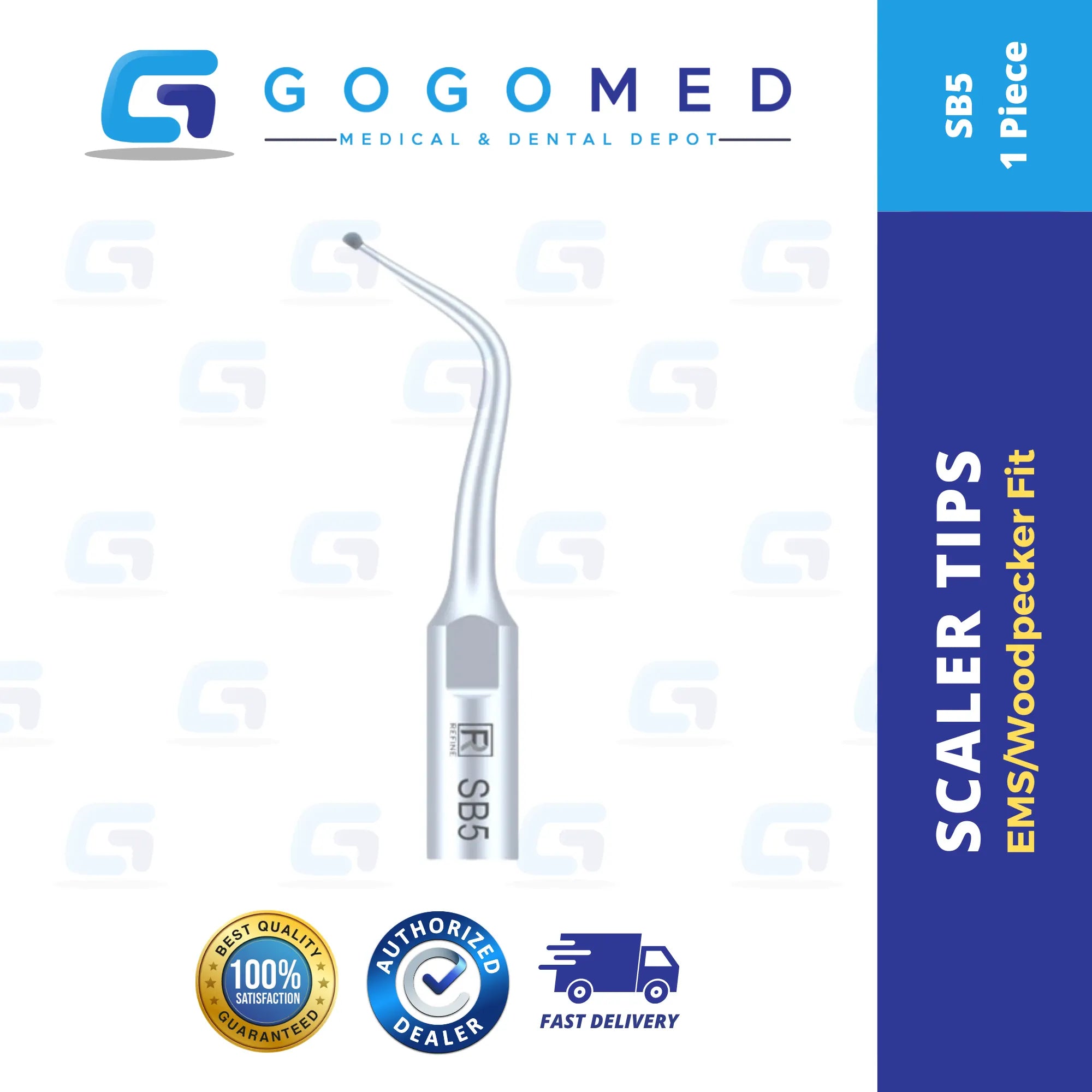

SB5 Diamond coated (85umtip for removing caries on teeth neck and oeclusal surface of teeth.
SB6 Diamond coated (85um) tip for removing on distal surface of the adjacent teeth.

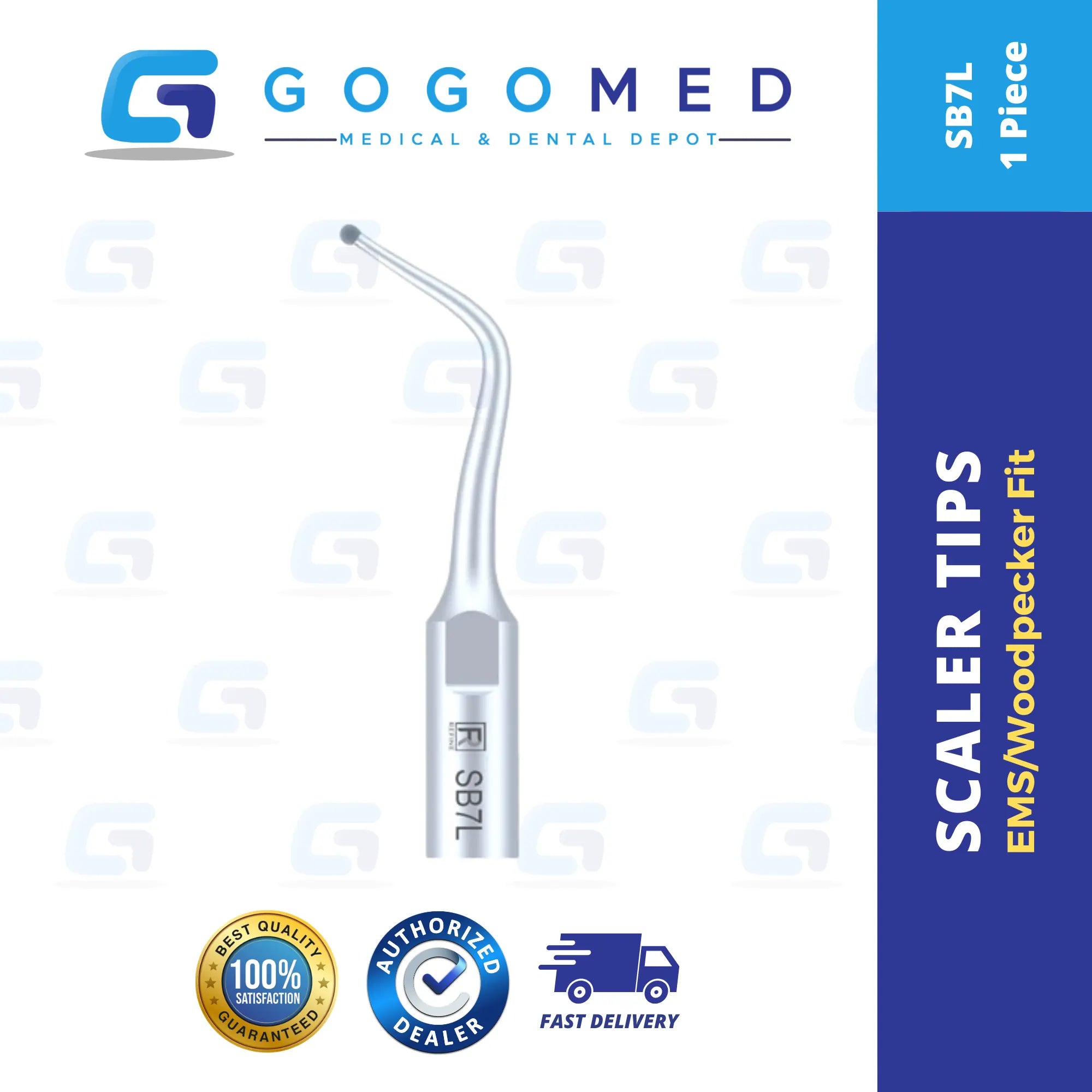

SB7L Left curved diamond coated (85um) tip for removing caries.
SB7R Right curved diamond coated (85um) tip for removing caries.

Perio Tips--

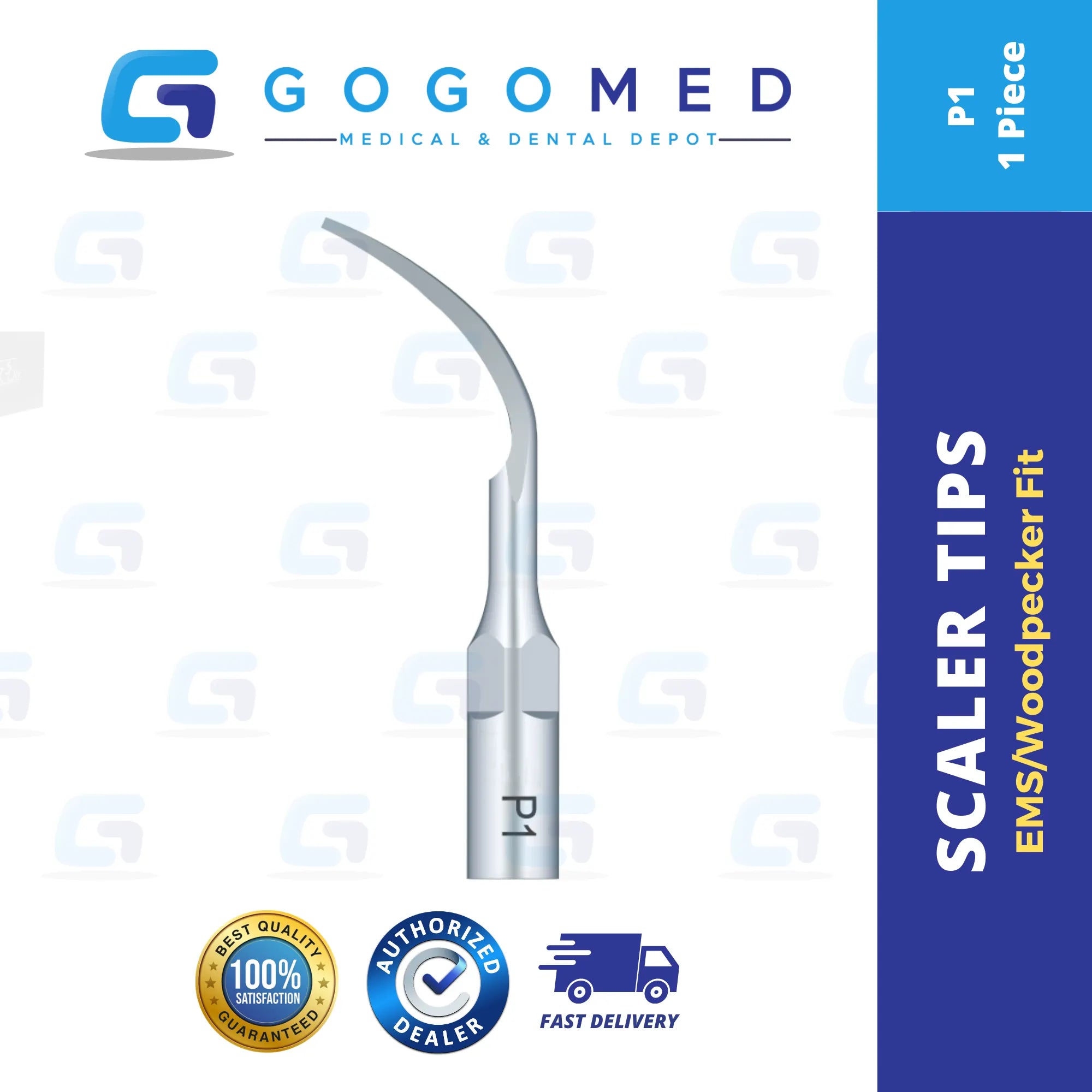

P1 used to remove subgingival calculus.

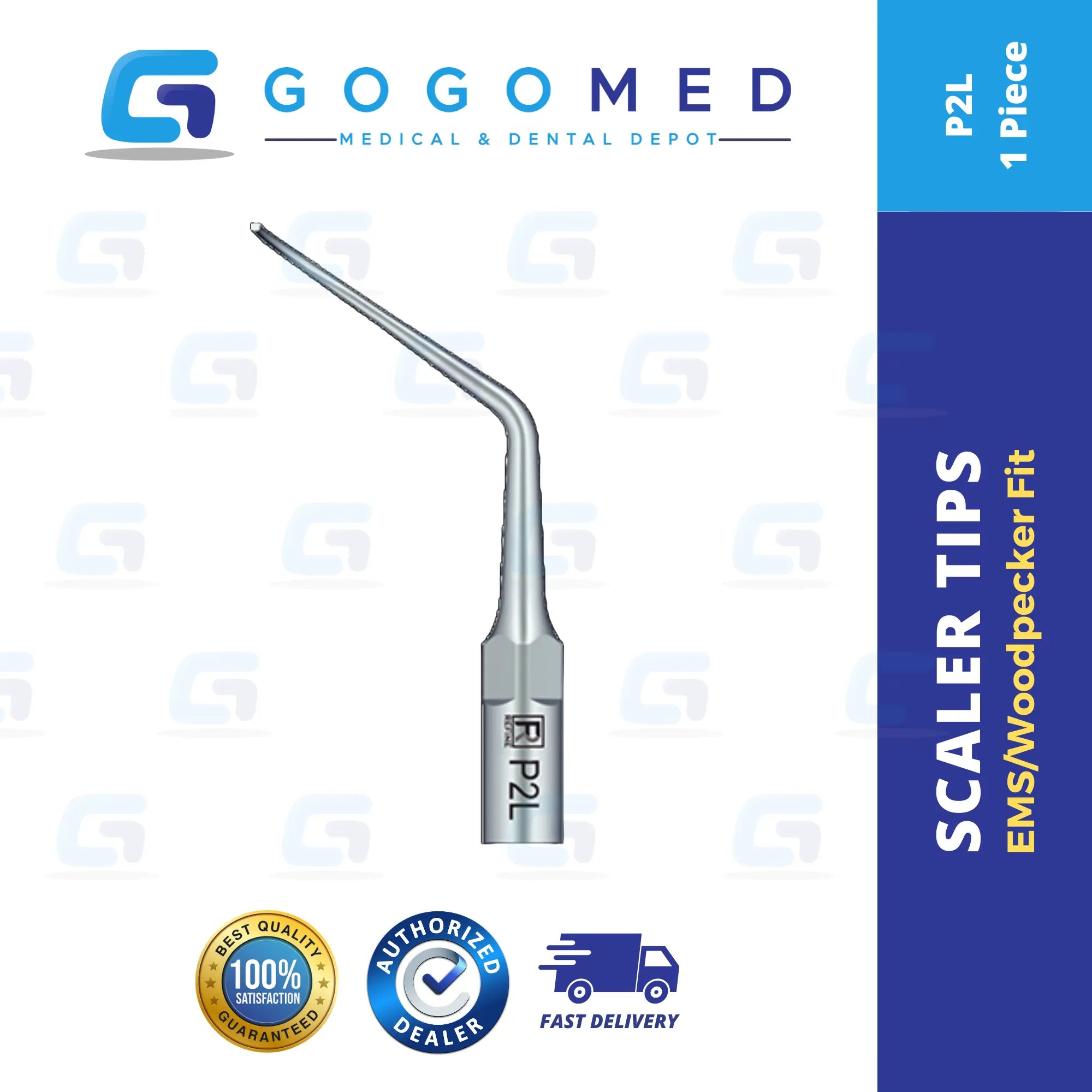

P2L left curved tip for removing calculus from very narrow inter-root space and furcation.

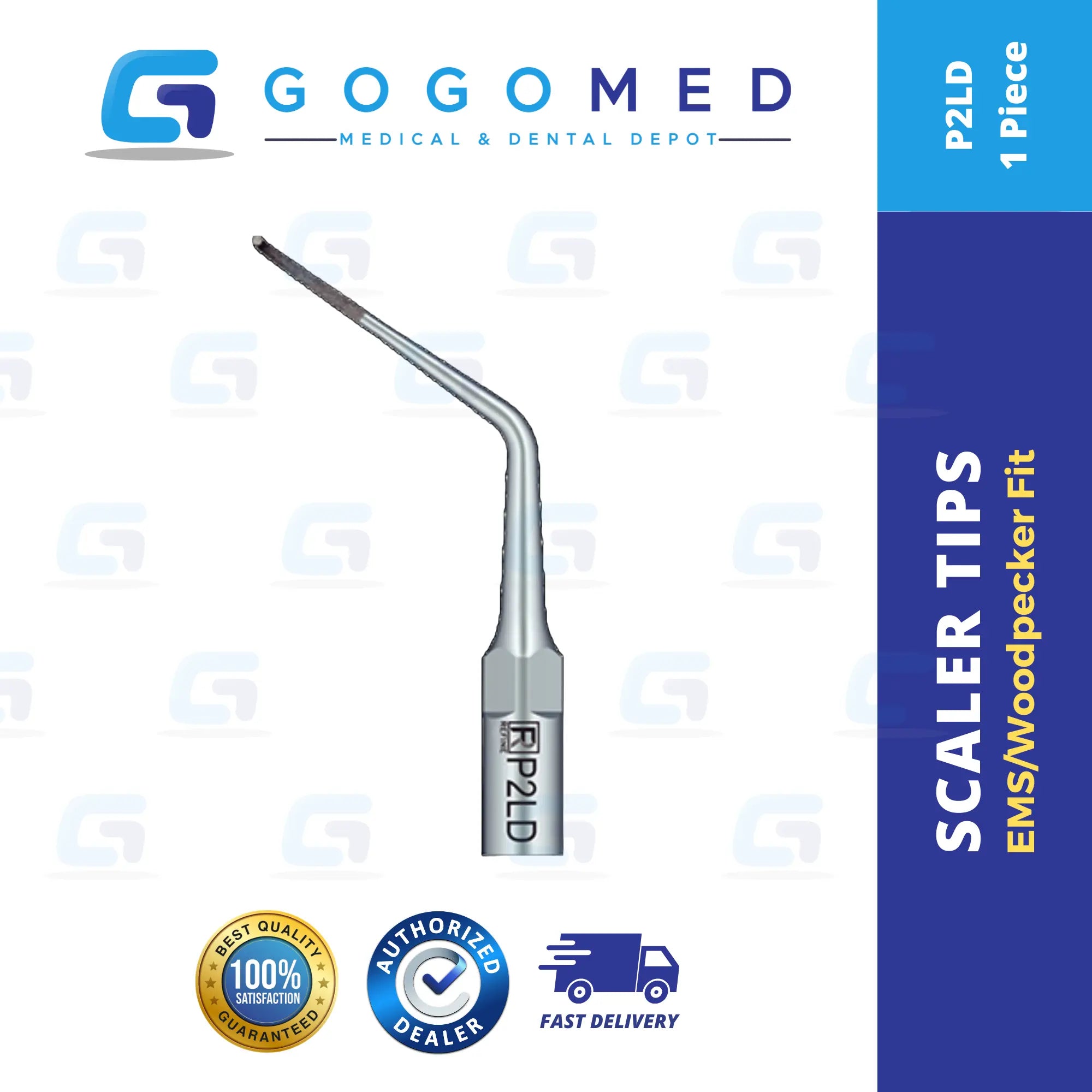

P2LD left curved diamond coated (40um grit) tip for root planning.
P2R right curved tip for removing calculus from very narrow inter-root space and furcation.

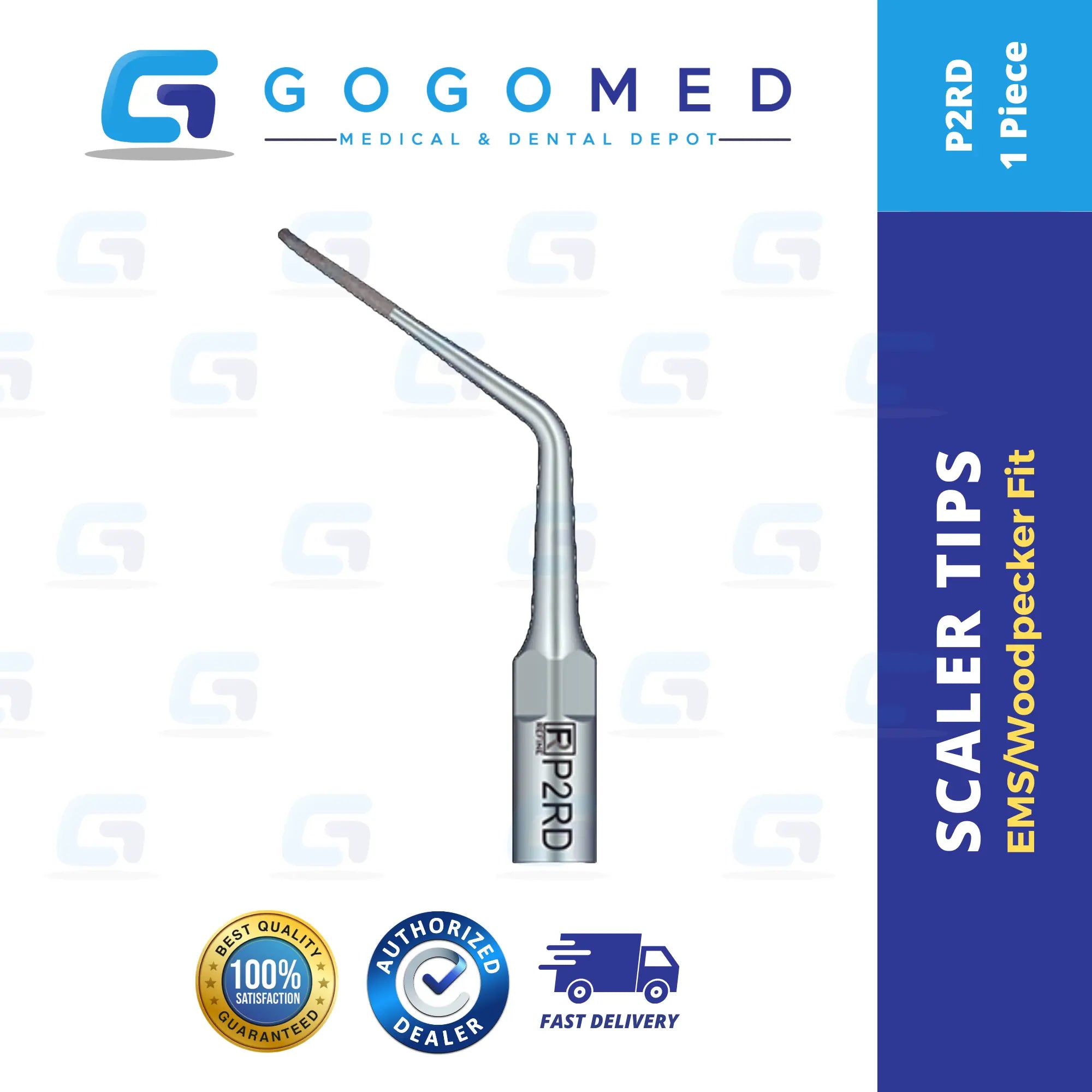

P2RD right curved diamond coated (40um grit) tip for root planning.

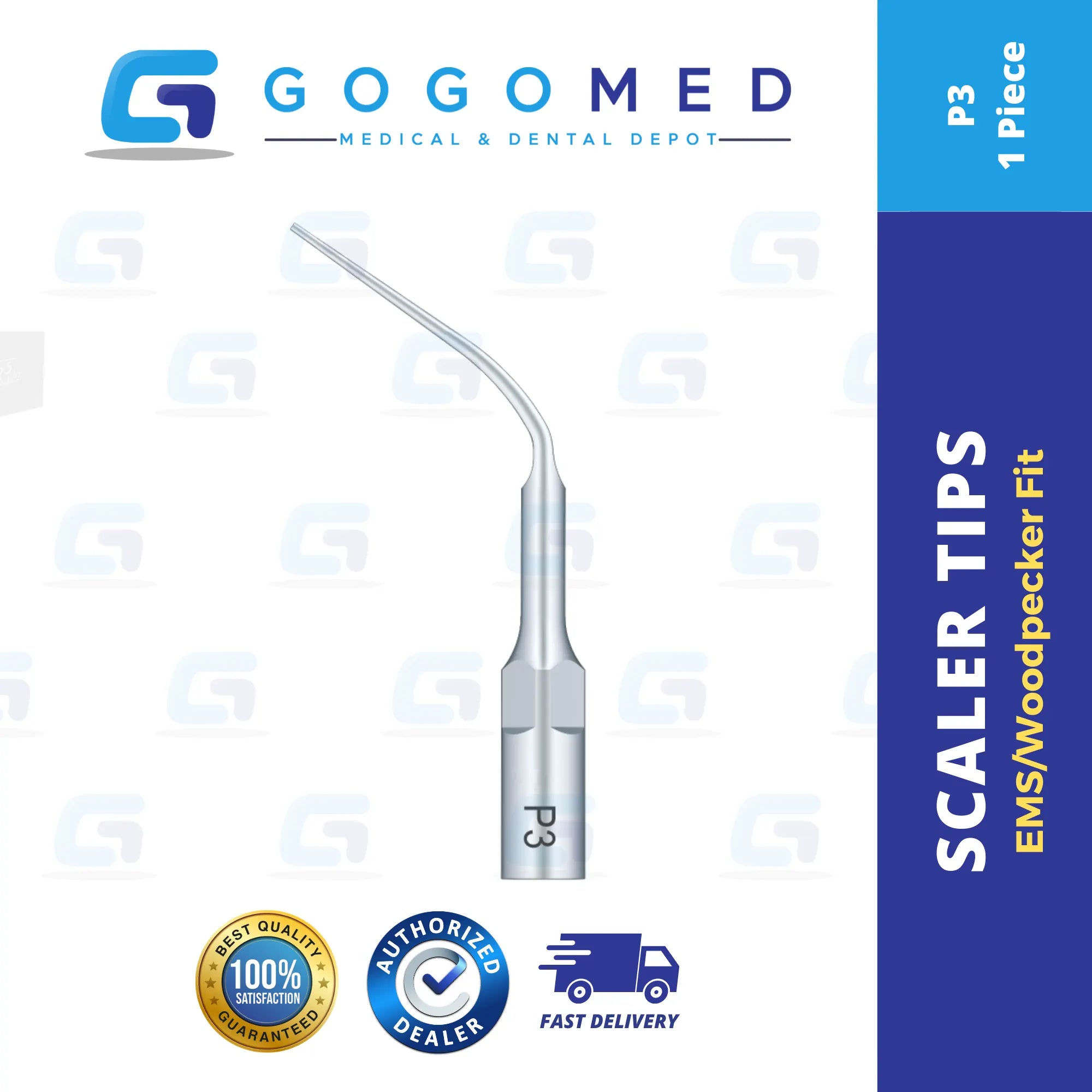

P3 slim and sharp tip for scaling calculus in subgingival deep pocket.
P3L left curved tip for scaling calculus in subgingival deep pocket.
P3R right curved tip for scaling calculus in subgingival deep pocket.

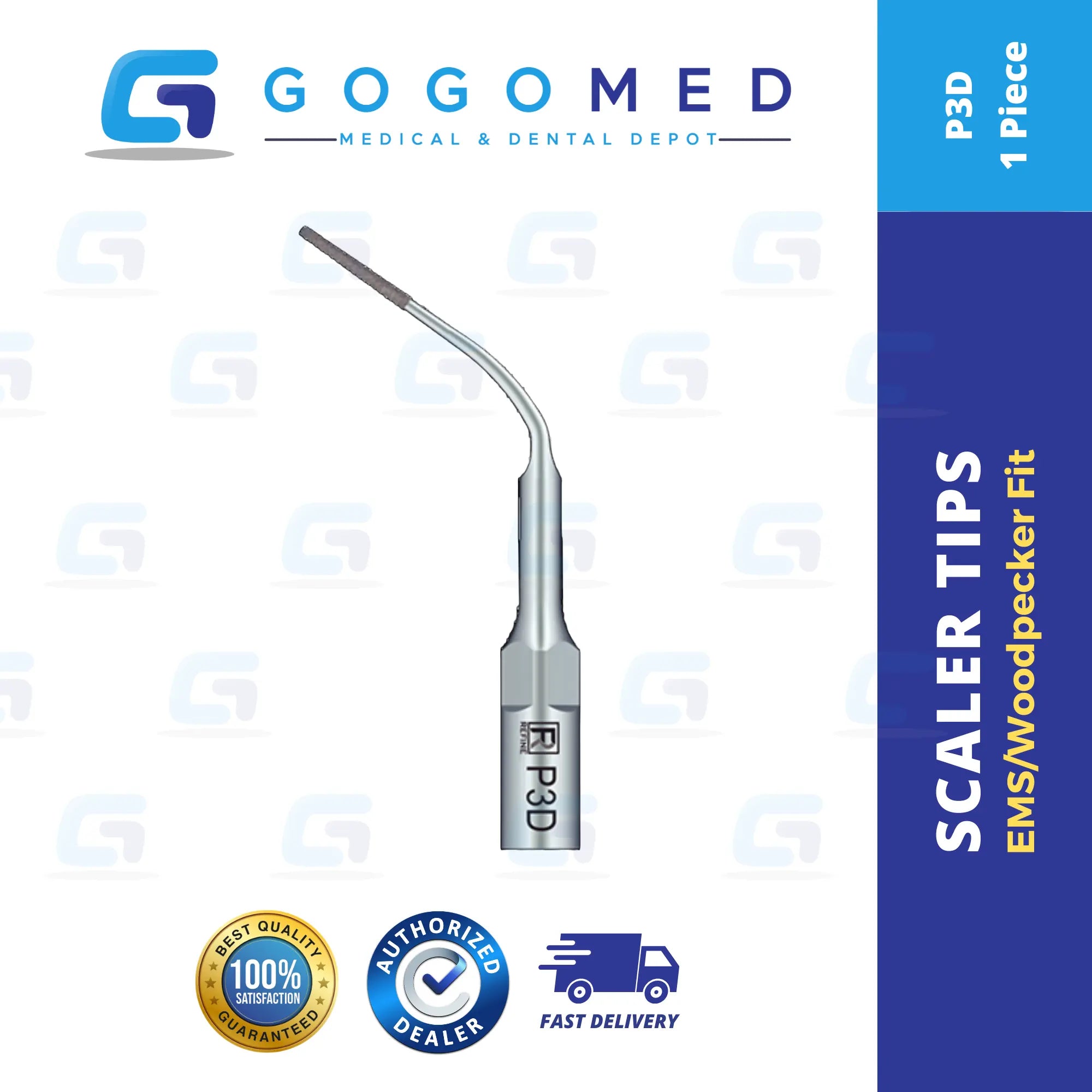

P3D used to level off the surface of endo during the periodontal falp surgery.

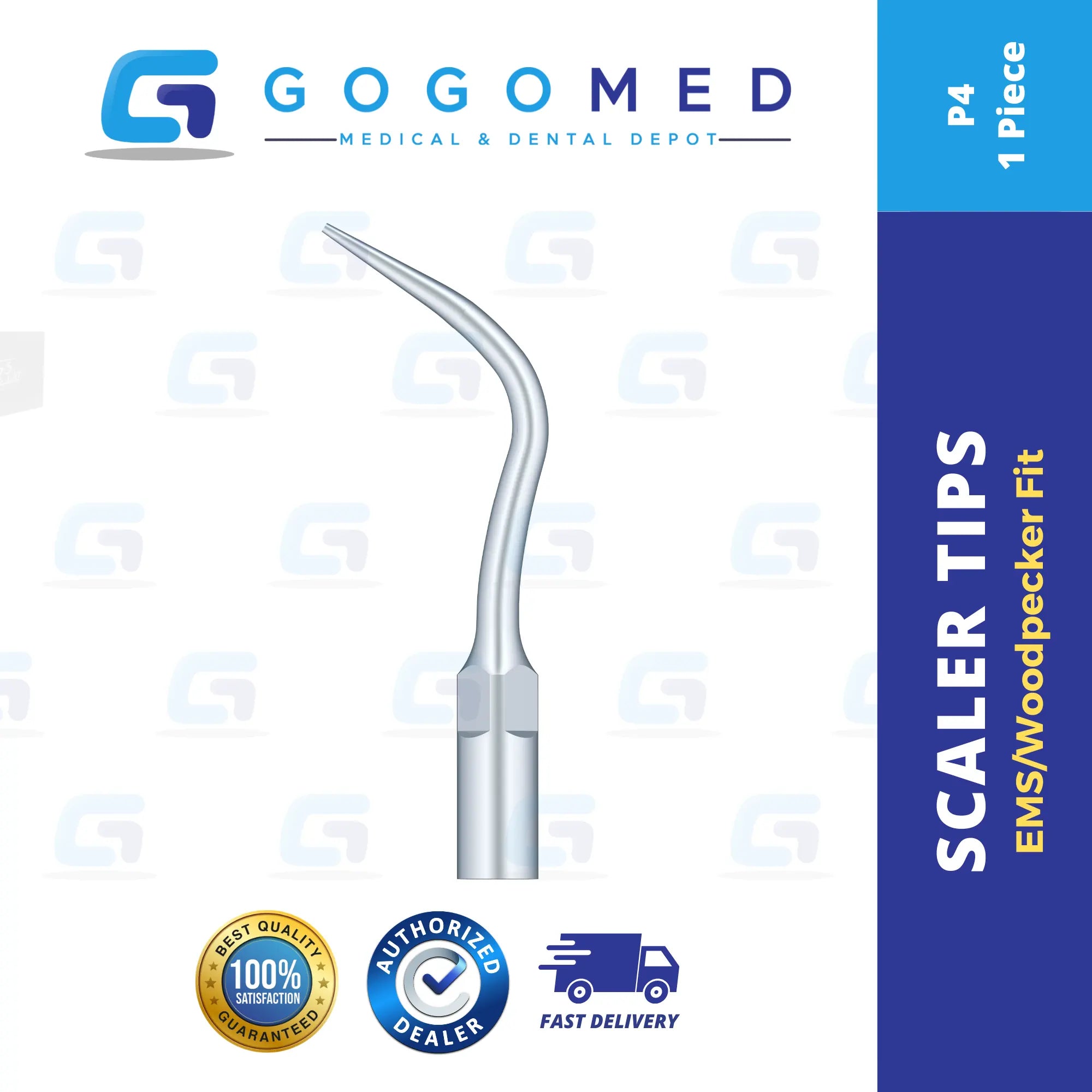

P4 used to remove subgingival calculus and interdental calculus.

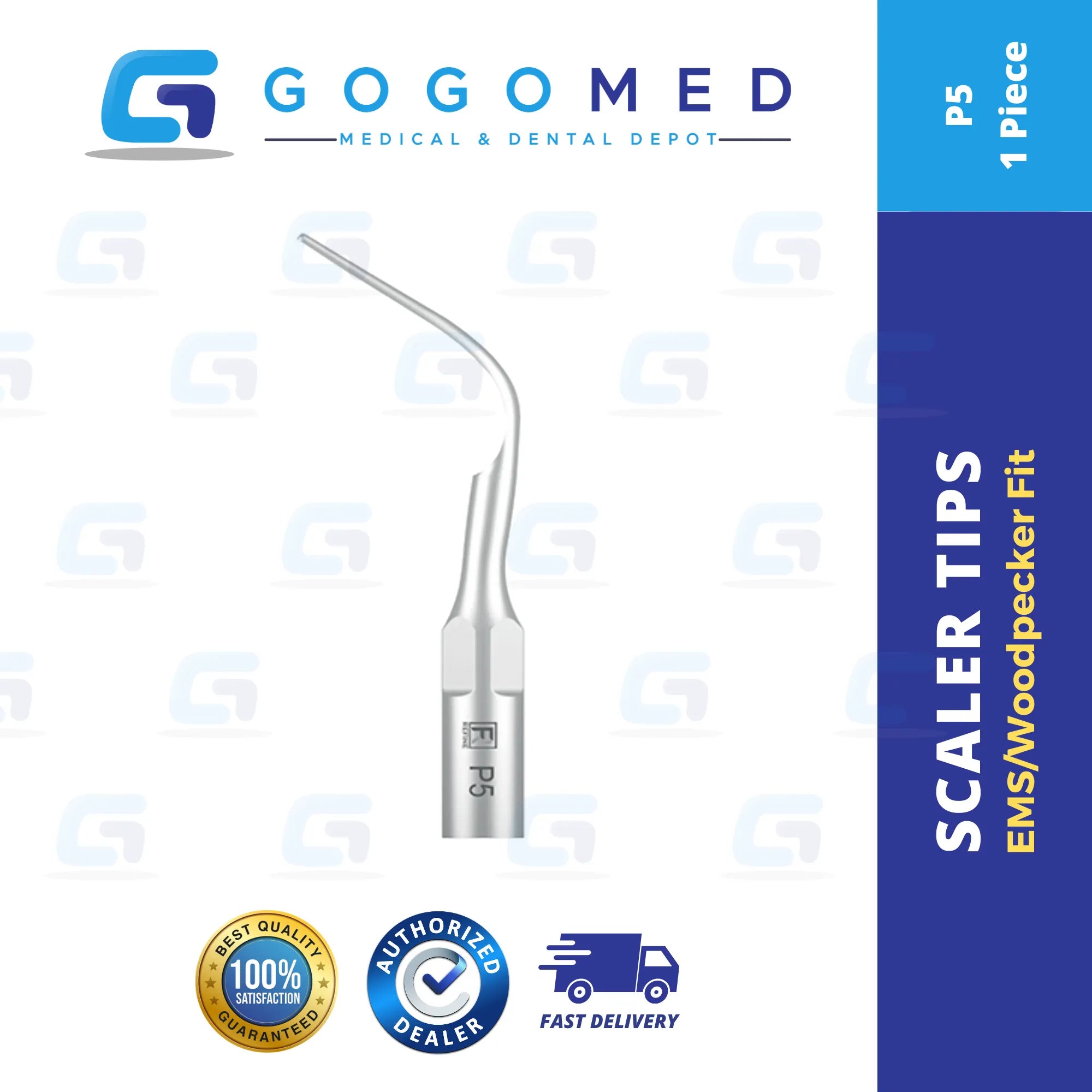

P5 used to remove calculus in the adjacent teeth and gingival margin of the neck.

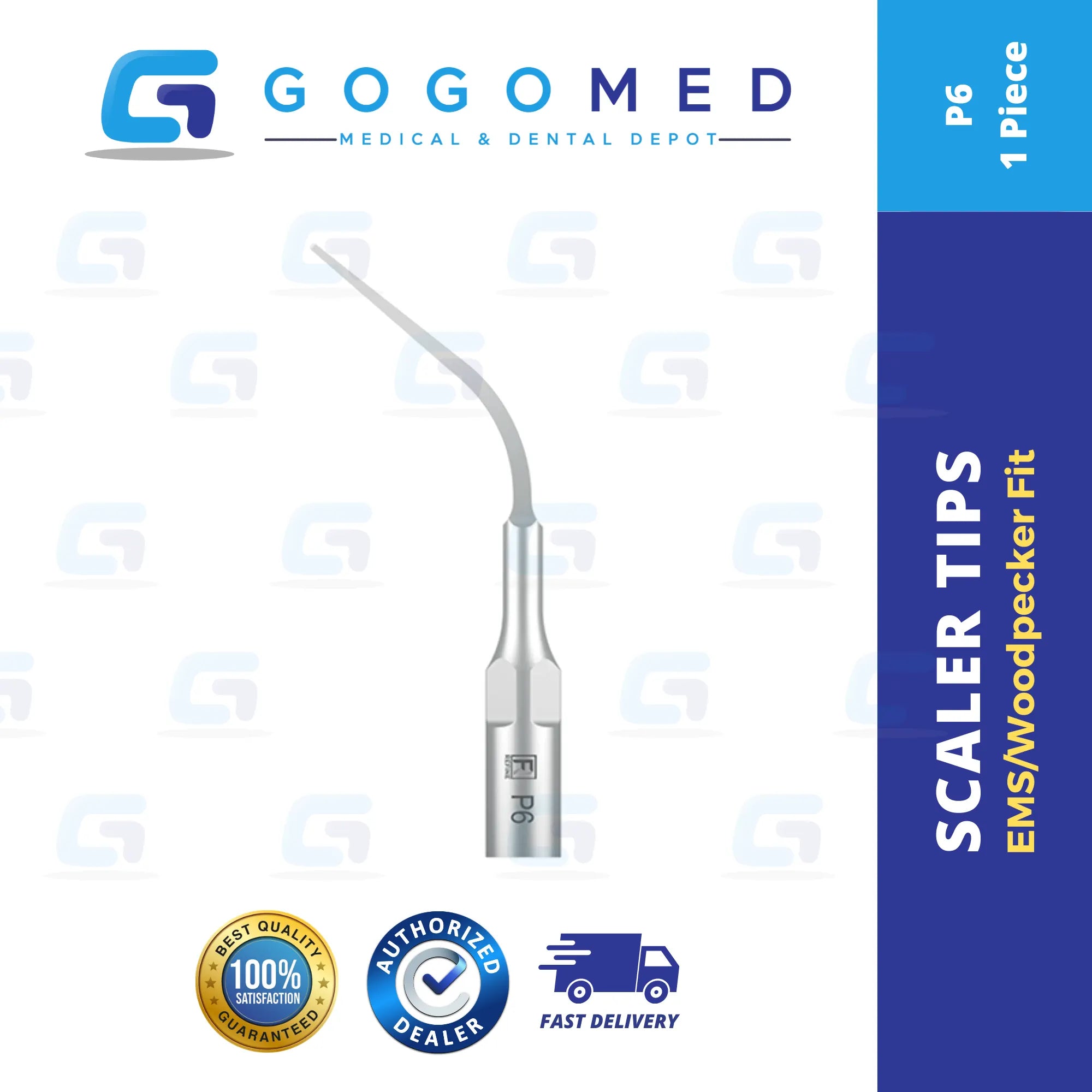

P6 slim and sharp tip for scaling calculus in periodontal deep pockets.

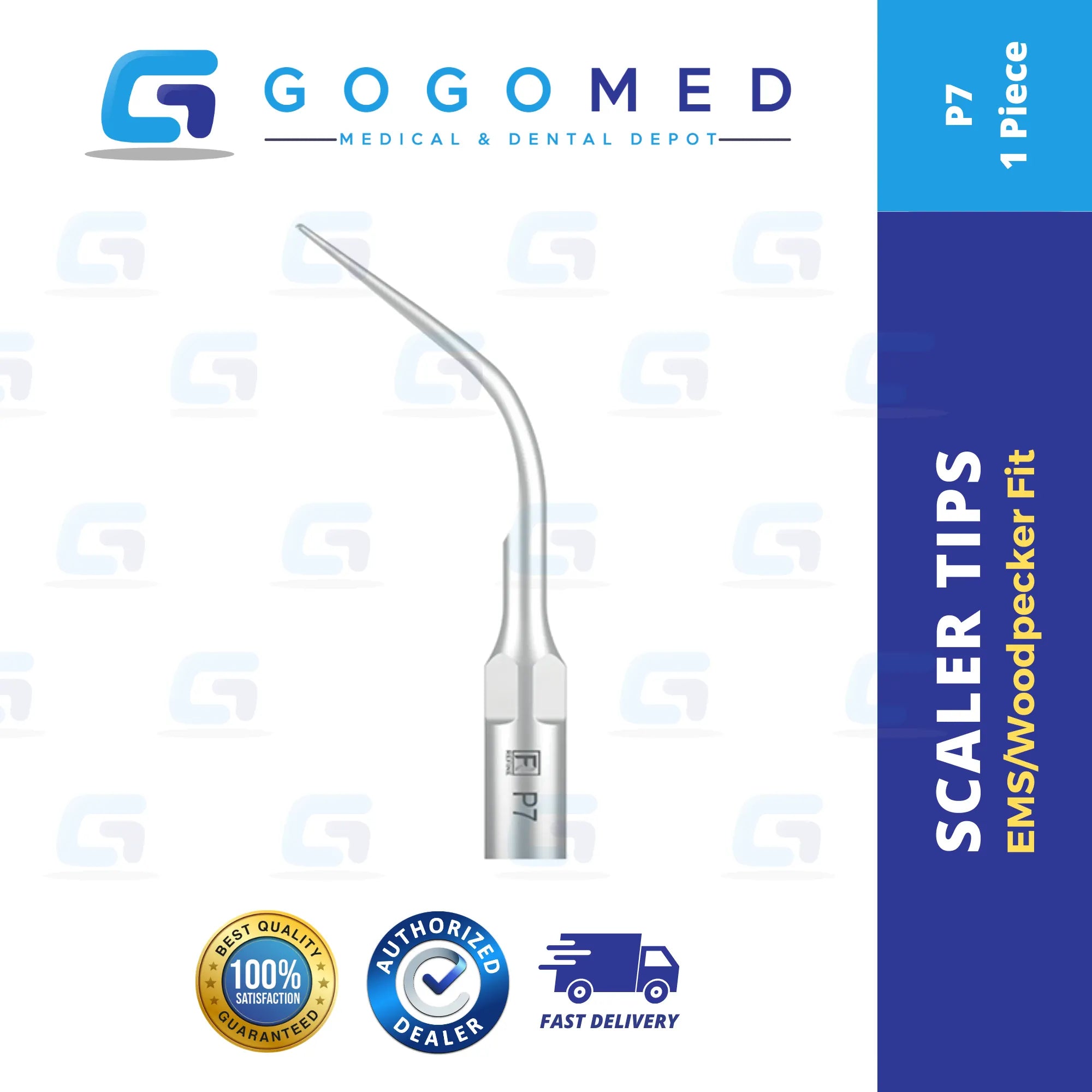

P7 slim and sharp tip for scaling calculus in periodontal pockets.

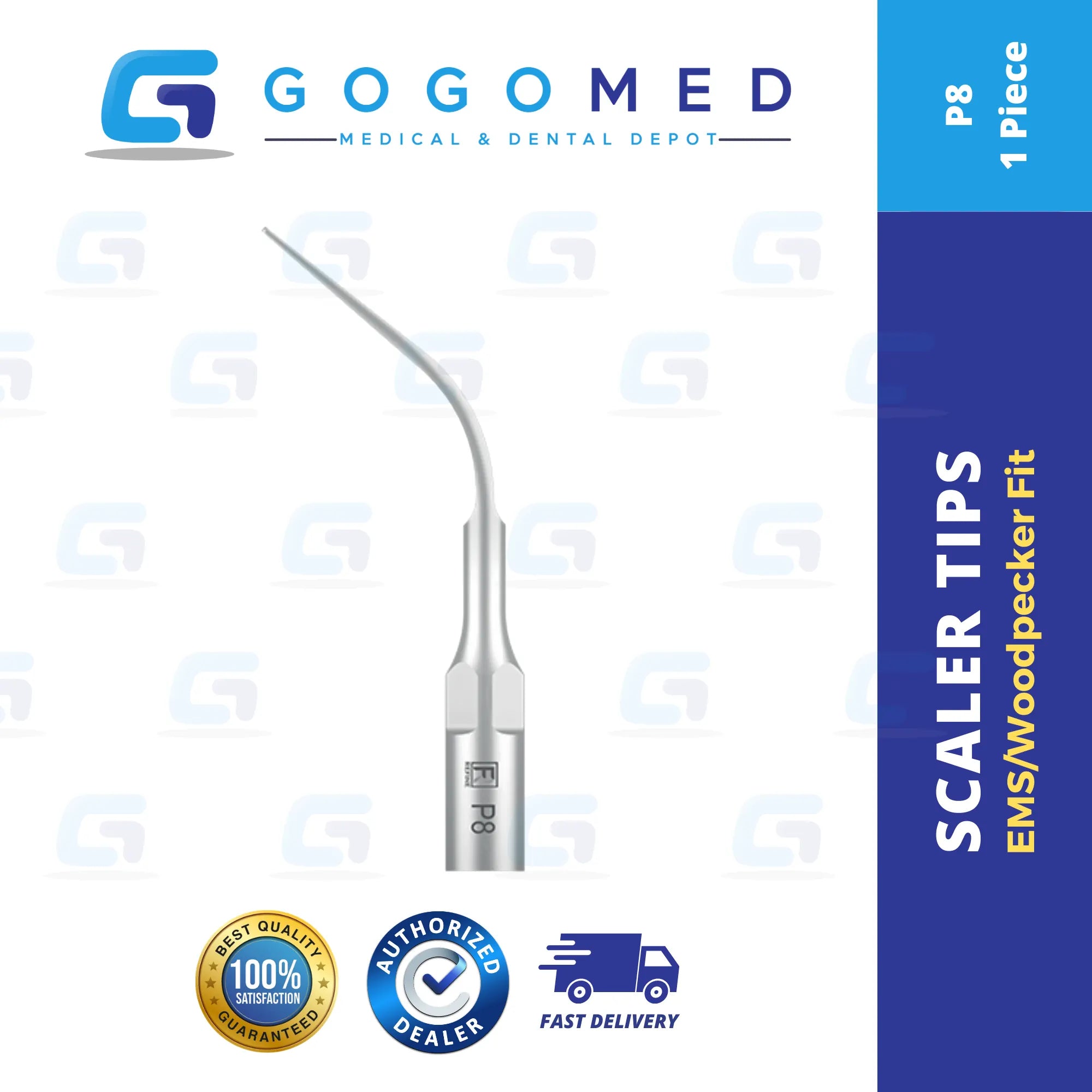

P8 slim and sharp tip for scaling calculus in periodontal pockets.

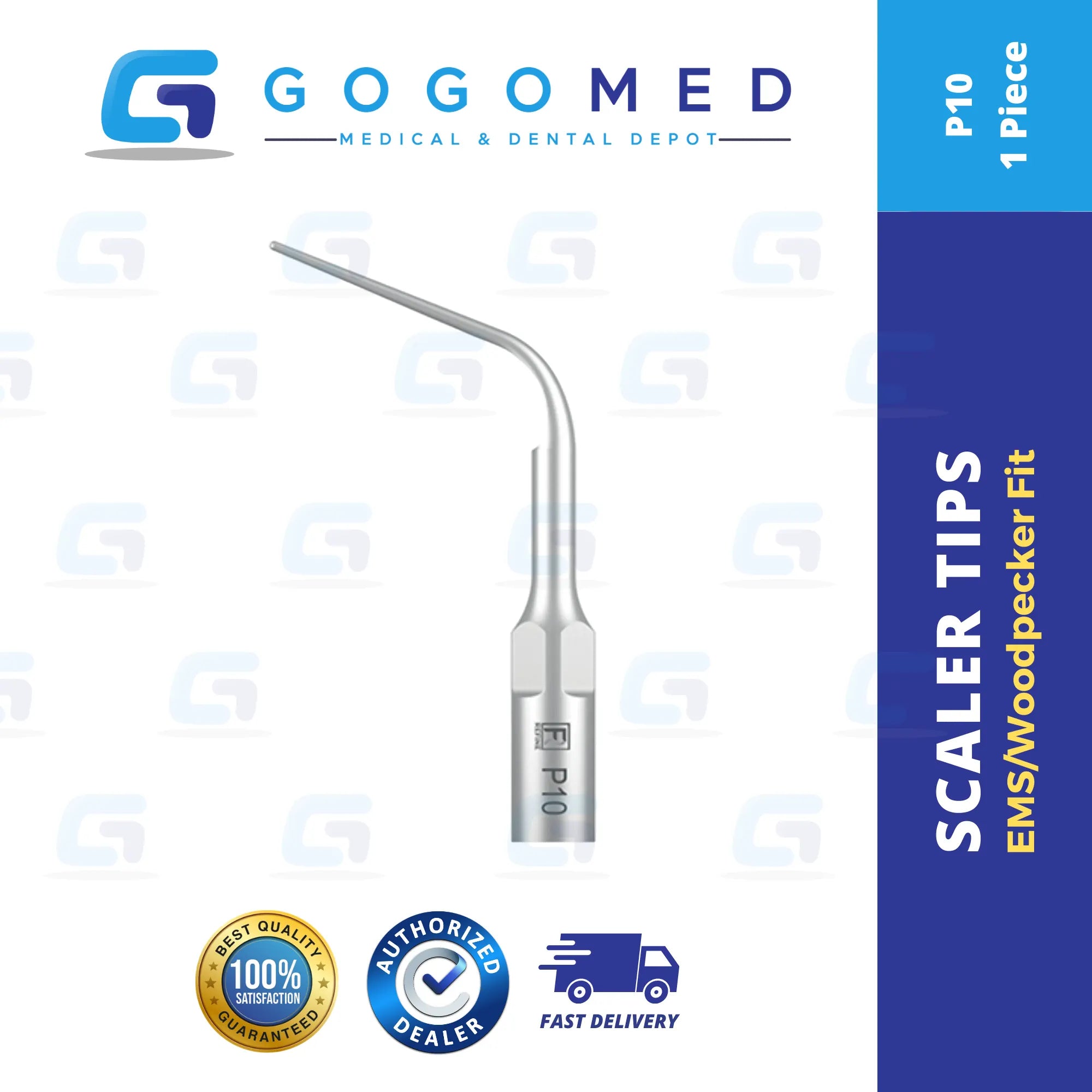

P10 gentle scaling and removing of calculus in the periodontal pockets.
P11 for highly efficient removing of subgingival stubborn calculus.
P12 for highly efficient removing of posterior subgingival stubborn calculus.

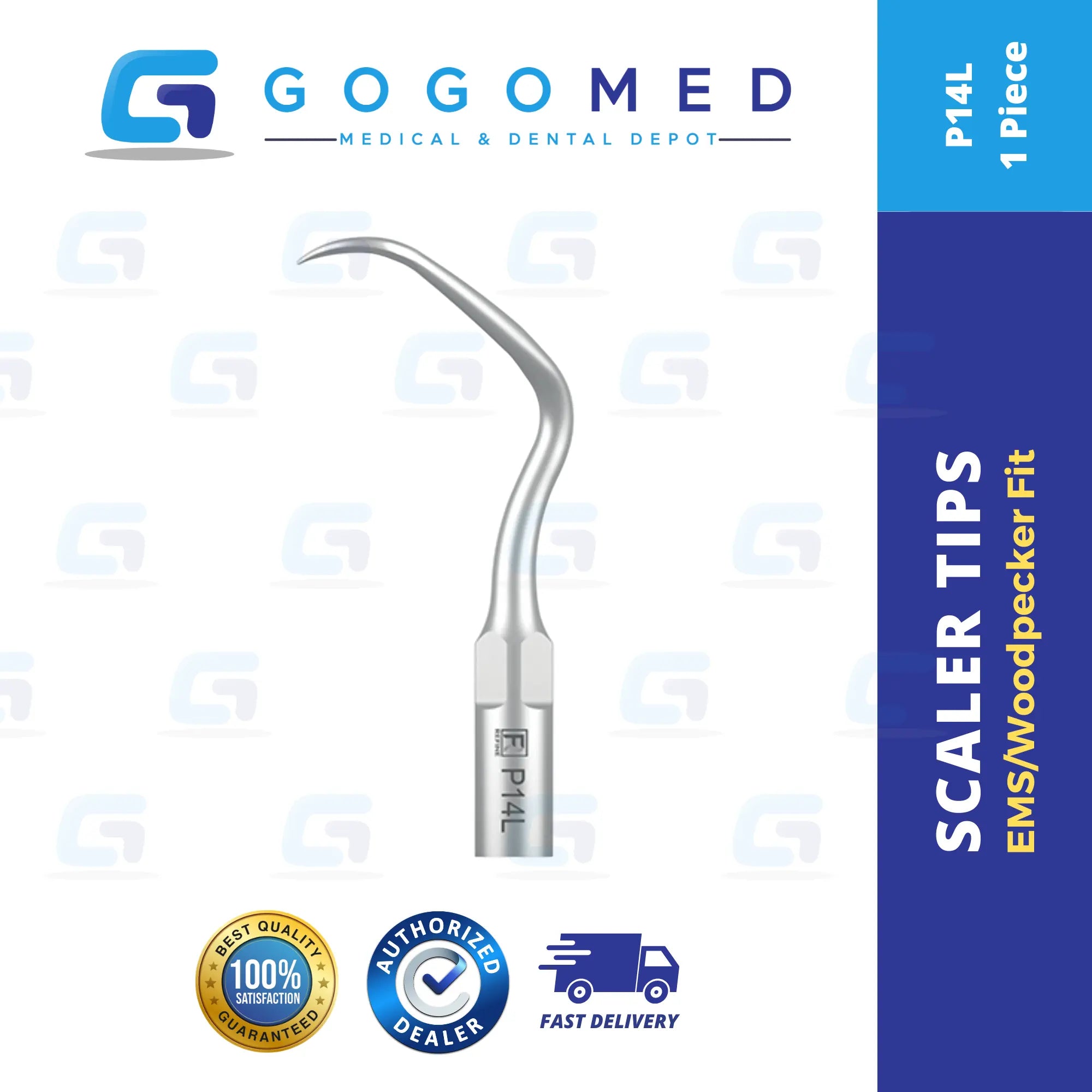

P14L left curved tip for highly efficient removing of posterior subgingival stubborn calculus.

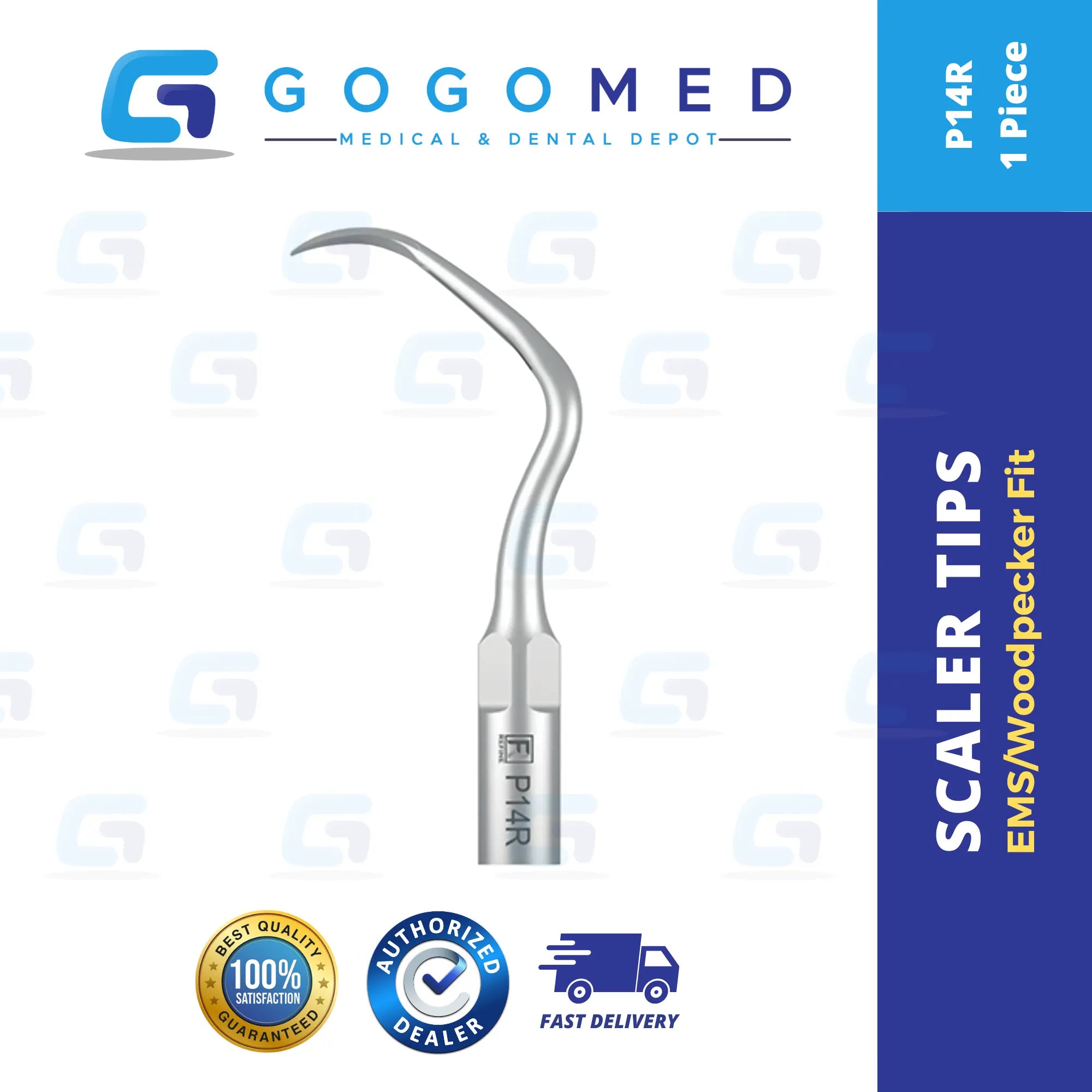

P14R right curved tip for highly efficient subgingival stubborn calculus.

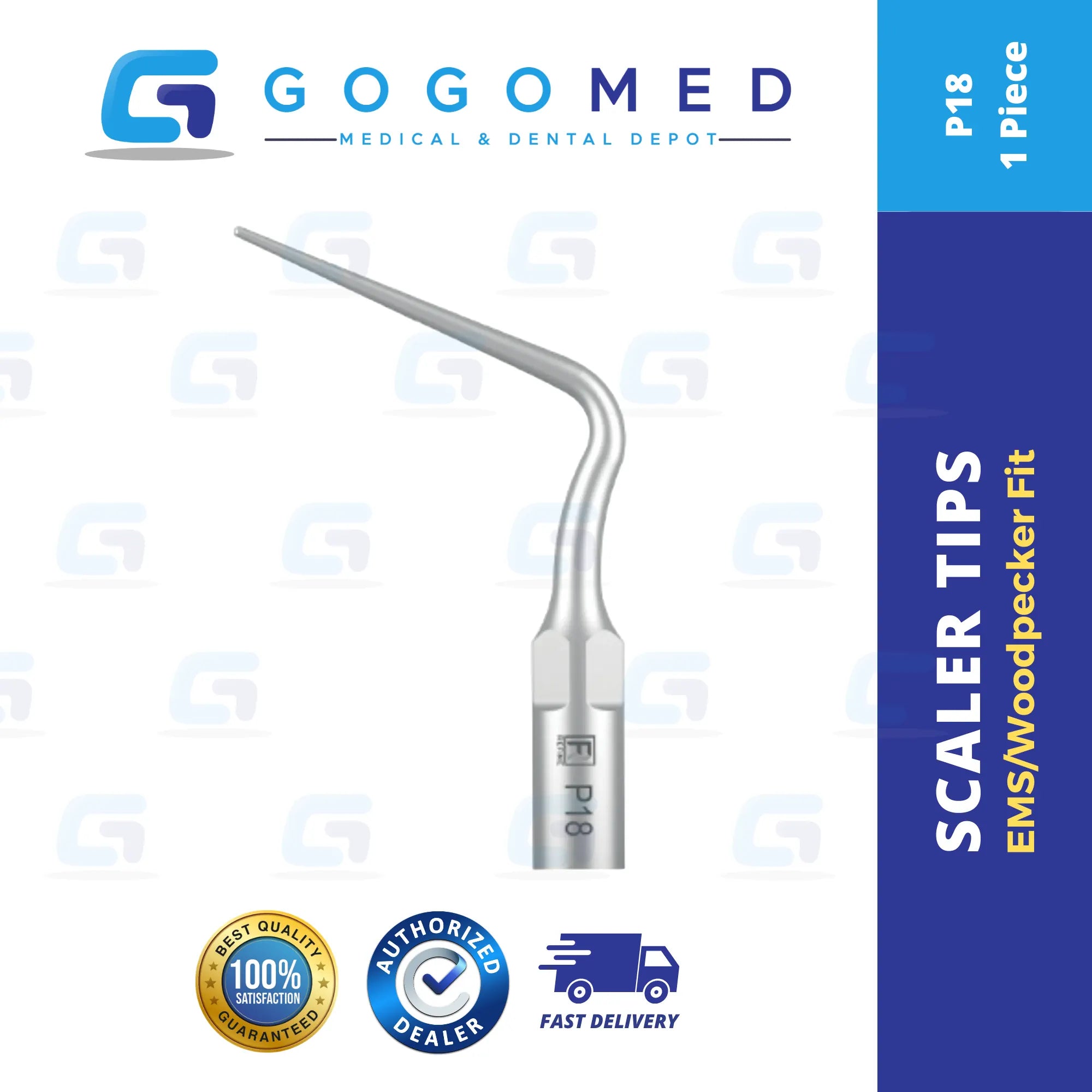

P18 for probing deep periodontal pocket and removing subgingival calculus.
P20 for removing calculus in adjacent teeth, gingival margin of neck and subgingival pocket within 3mm.

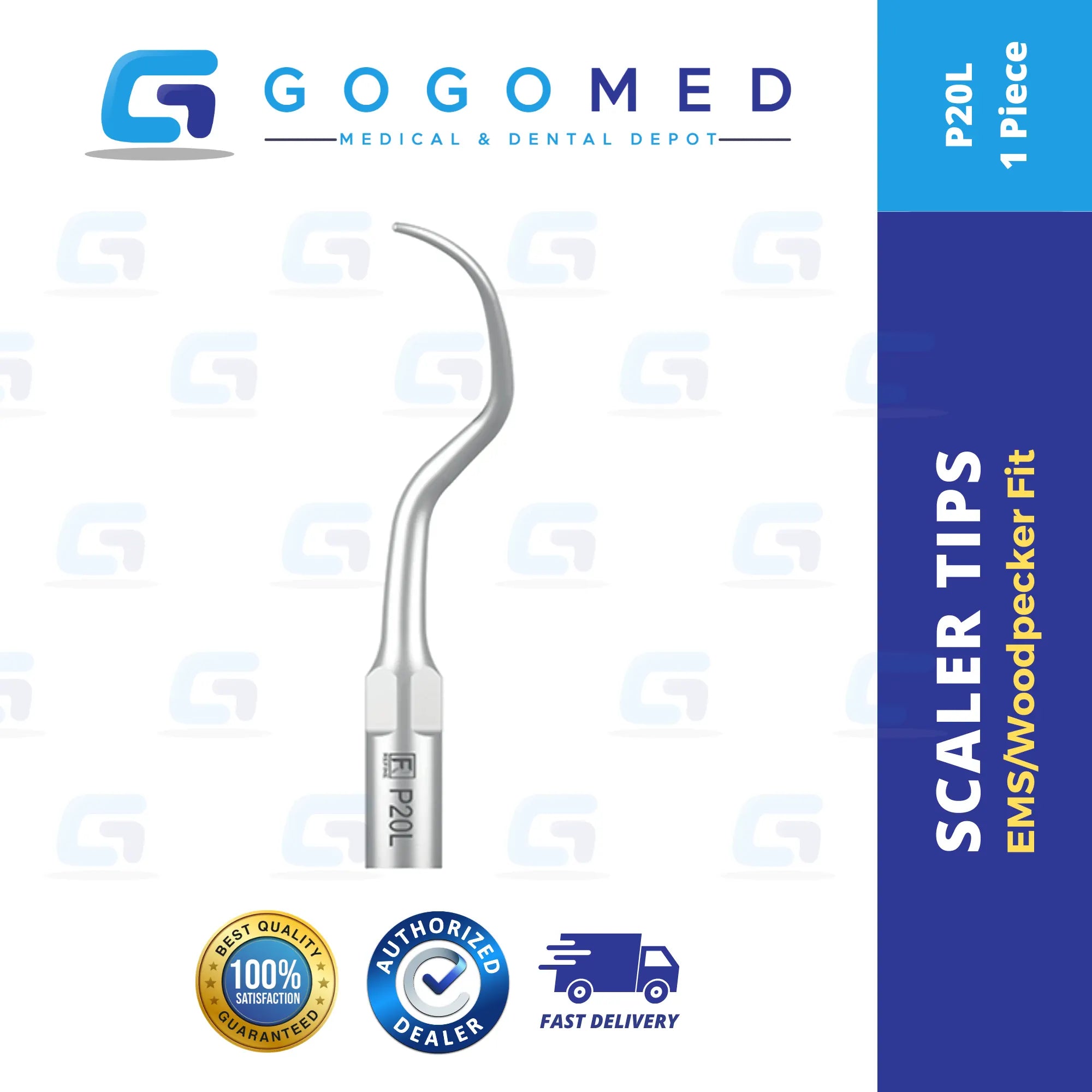

P20L left curved tip for highly efficient removing of suborn calculus in posterior subgingival.

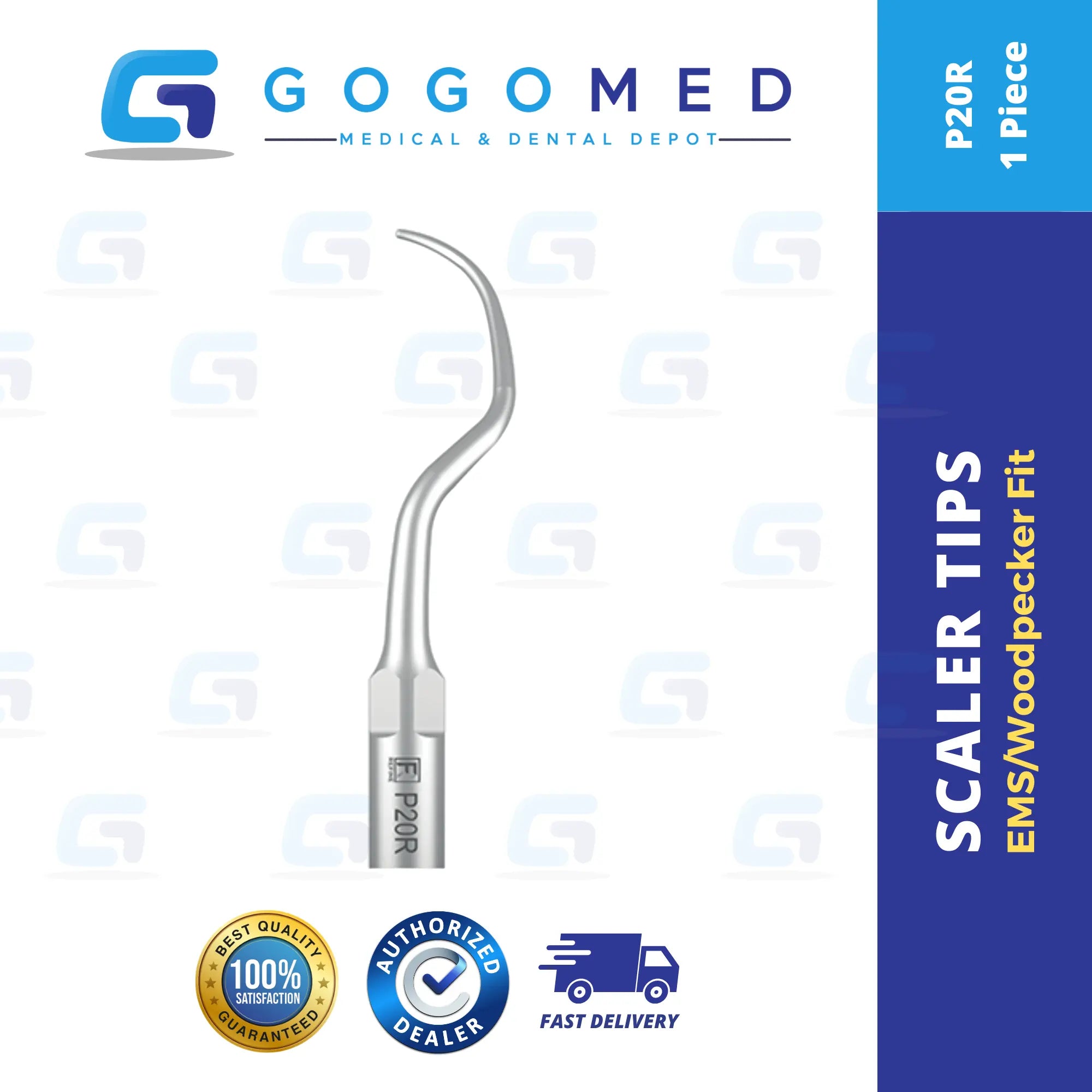

P20R right curved tip for highly efficient removing of suborn calculus in posterior subgingival.

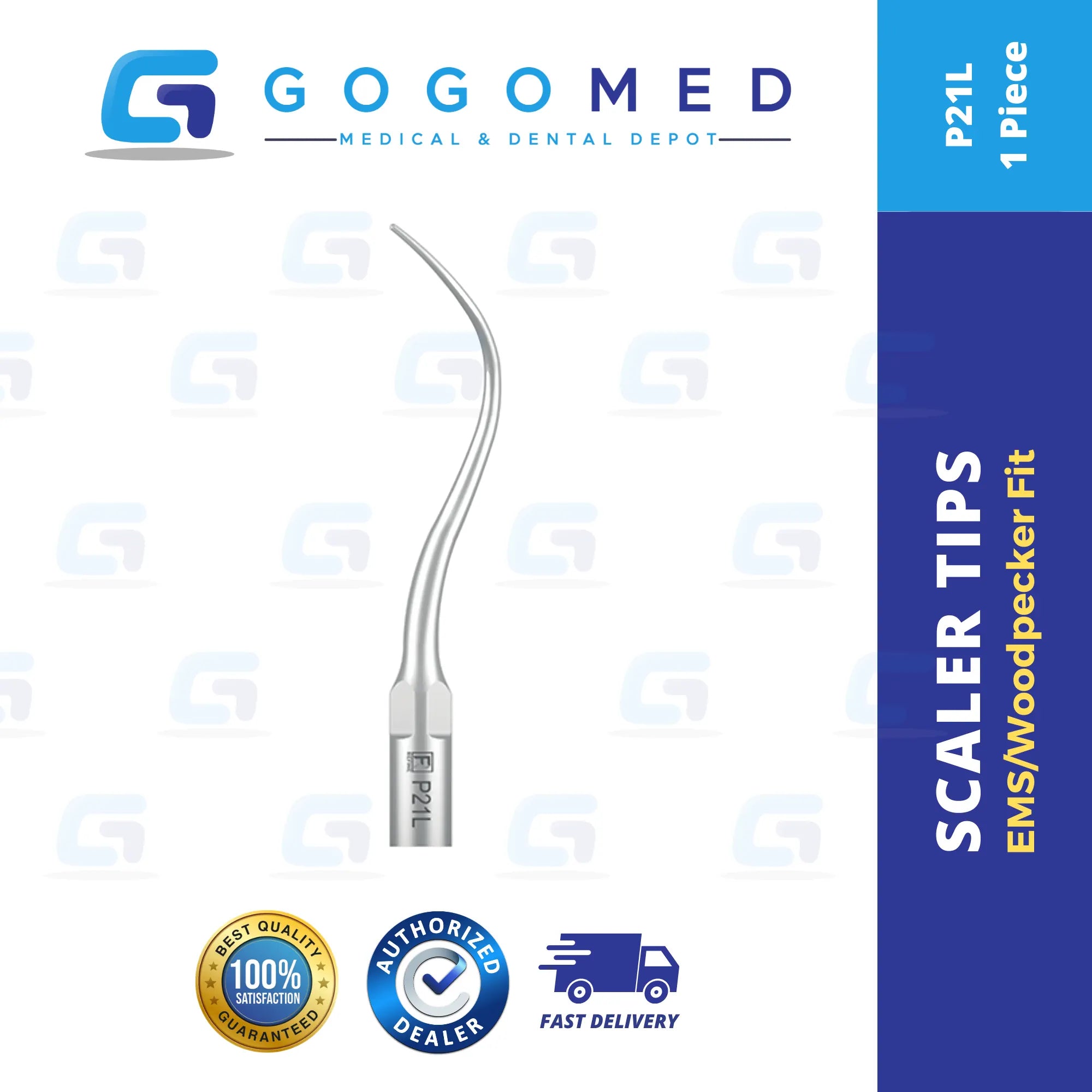

P21L left curved tip for scaling of root bifurcation and root surface of adjacent posterior teeth area.

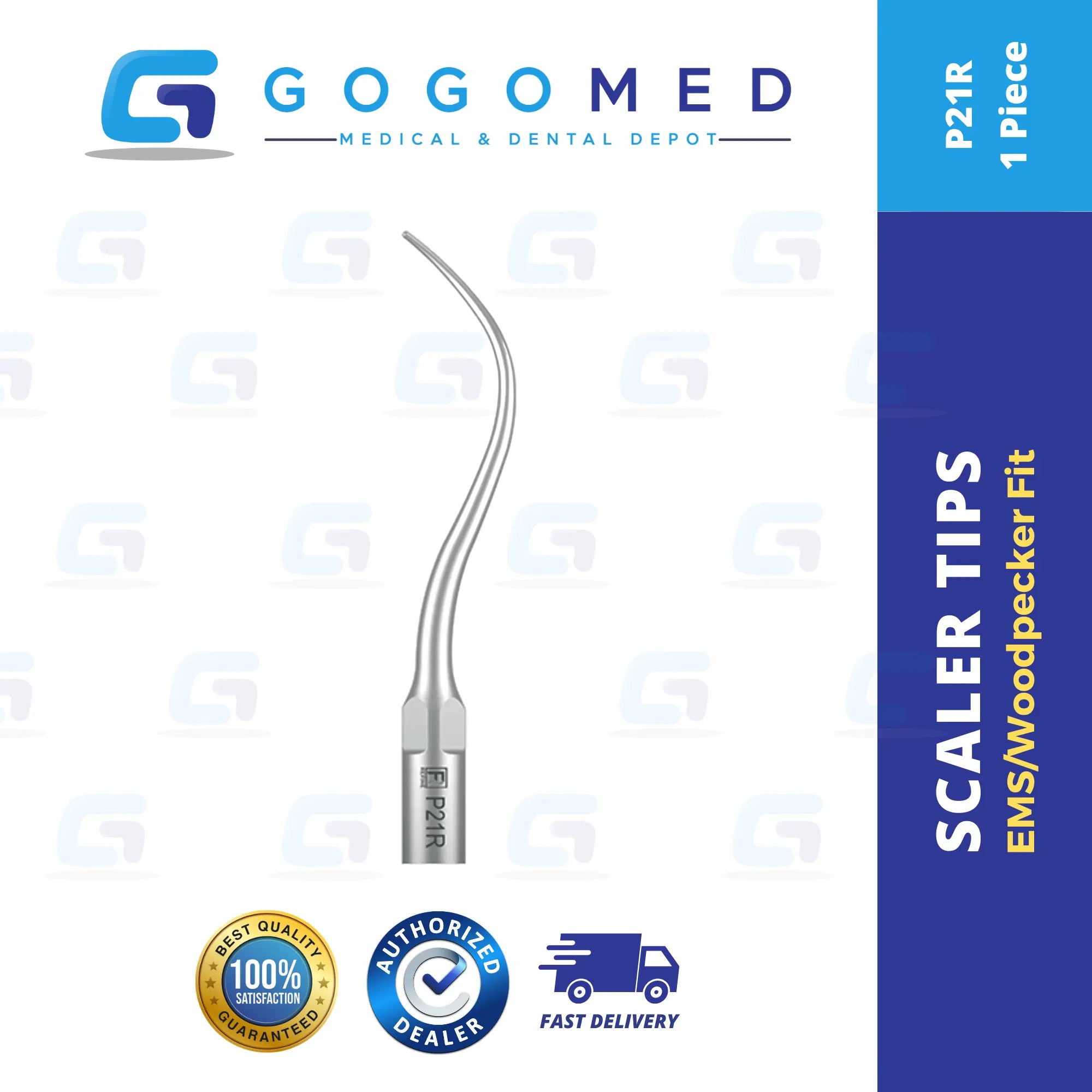

P21R right curved tip for scaling of root bifurcation and root surface of adjacent posterior teeth area.

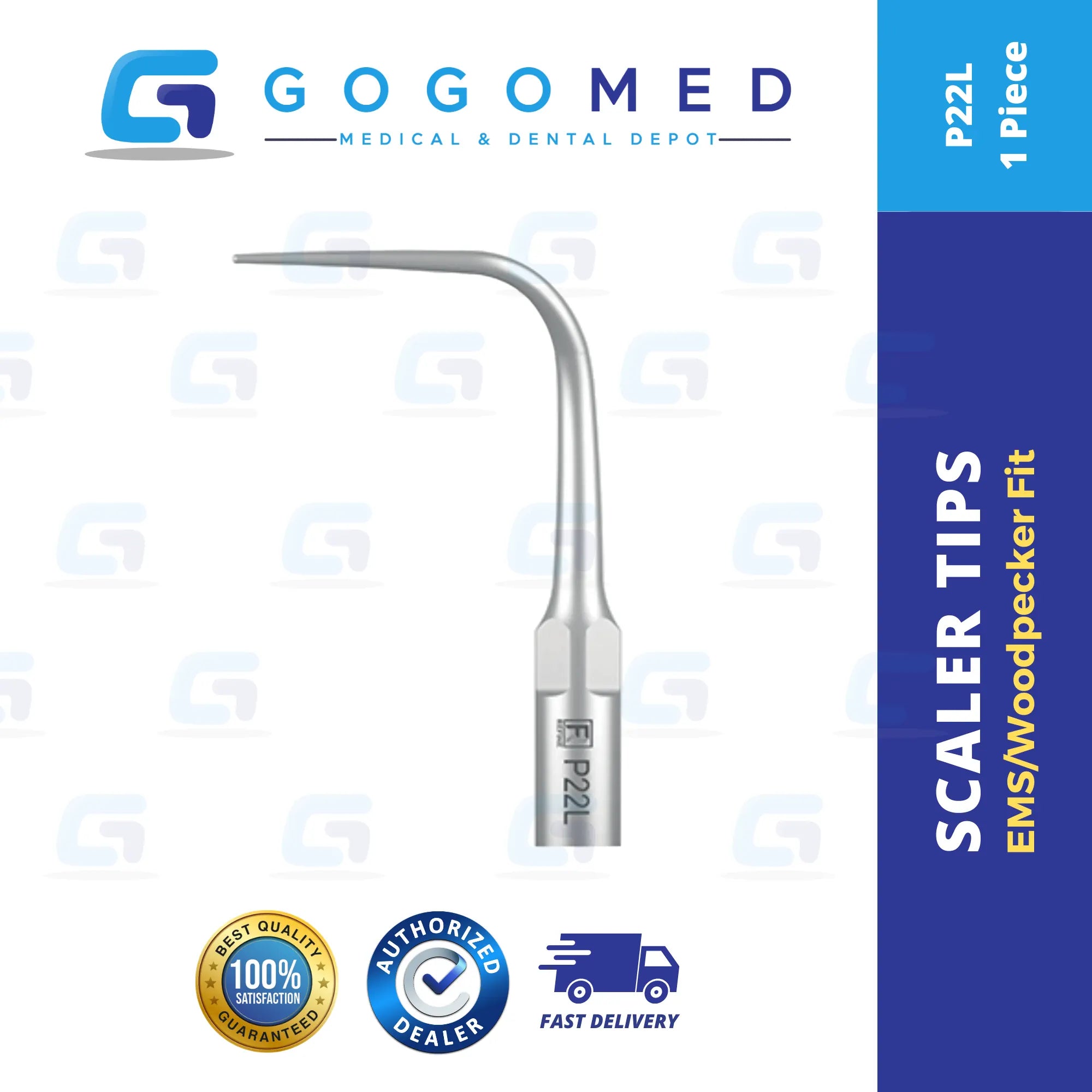

P22L left curved tip for removing deep pocket calculus.

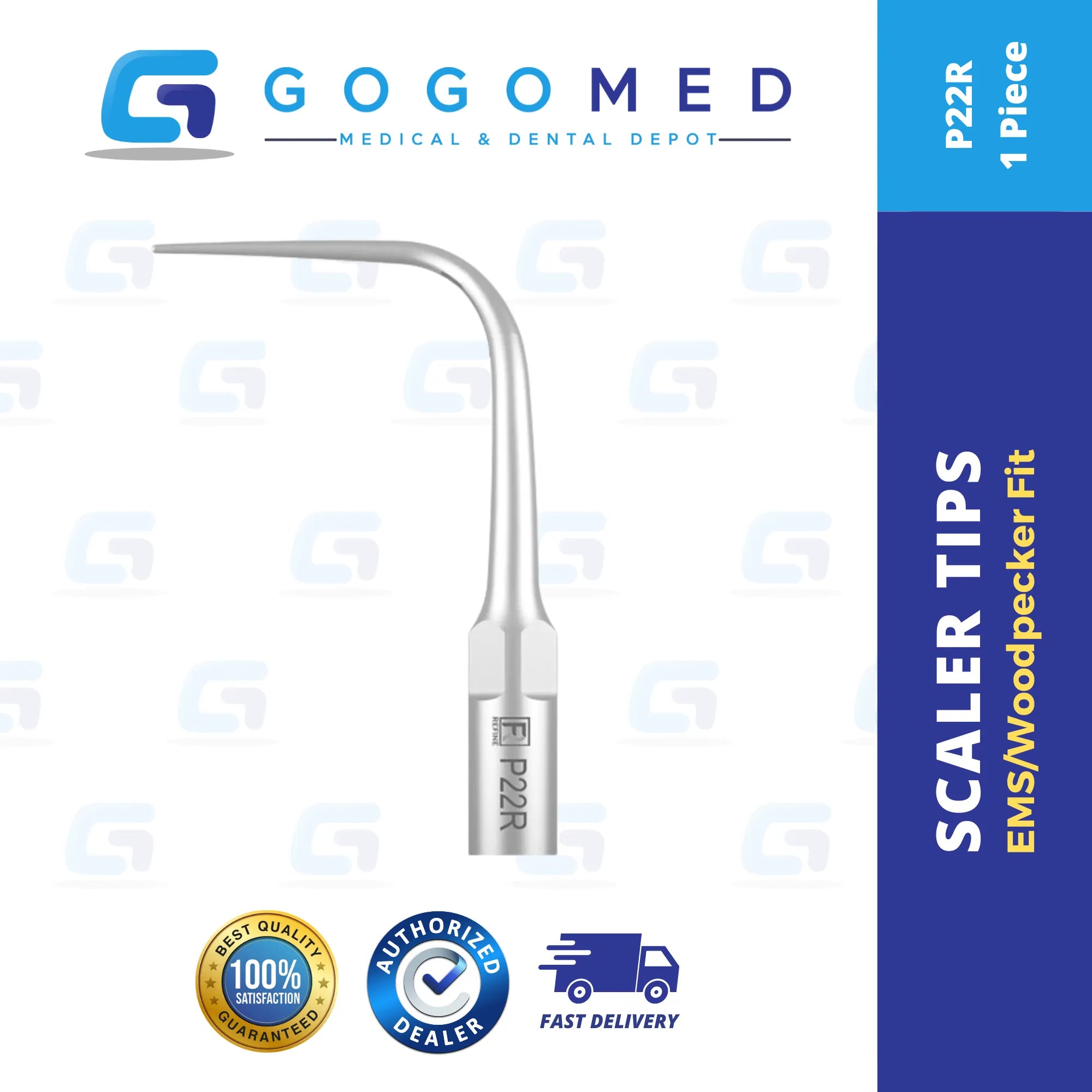

P22R right curved tip for removing deep pocket calculus.
P33 titanium left curved tip for exploring subgingival.

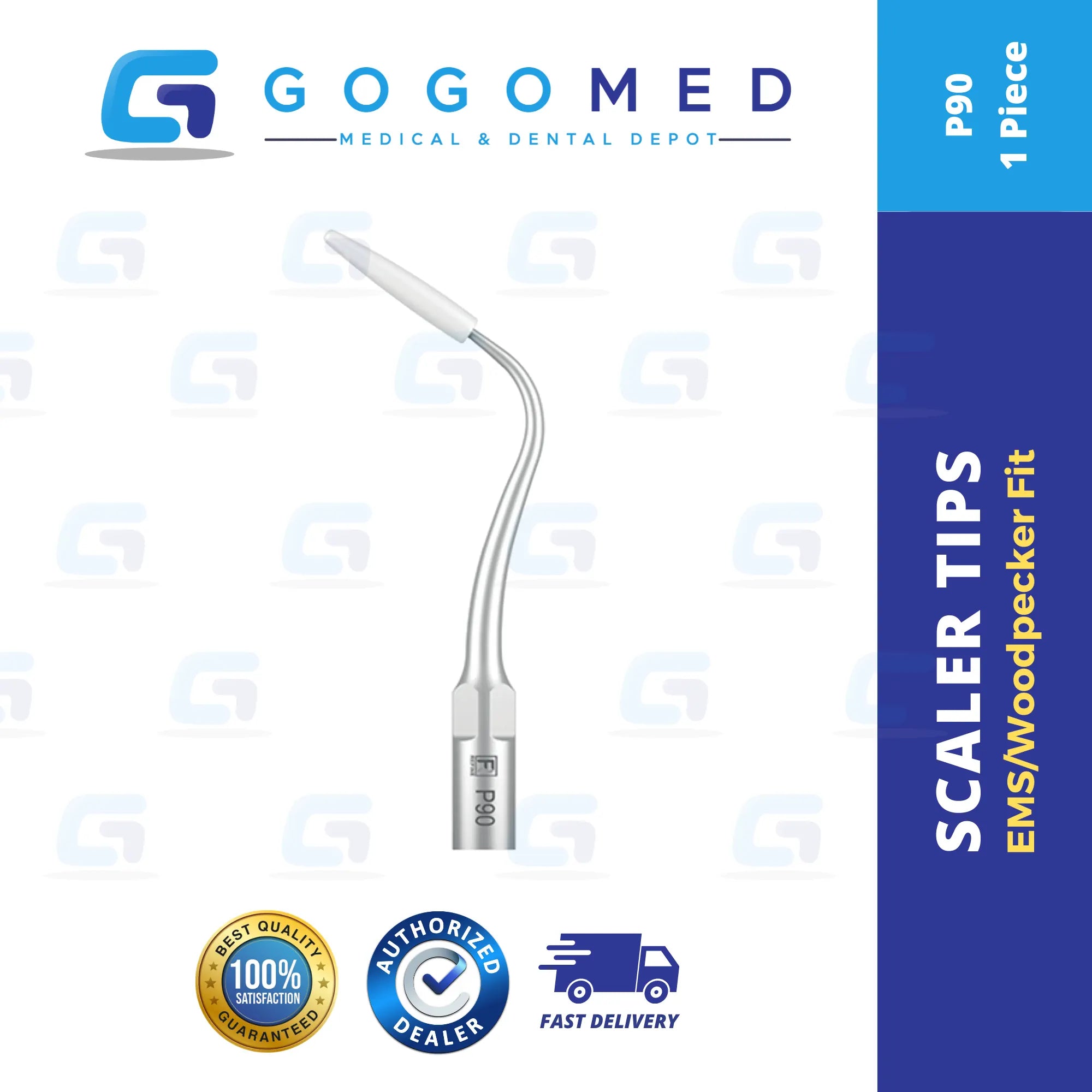

P90 applicable for all buccal and lingual area of dental implant.

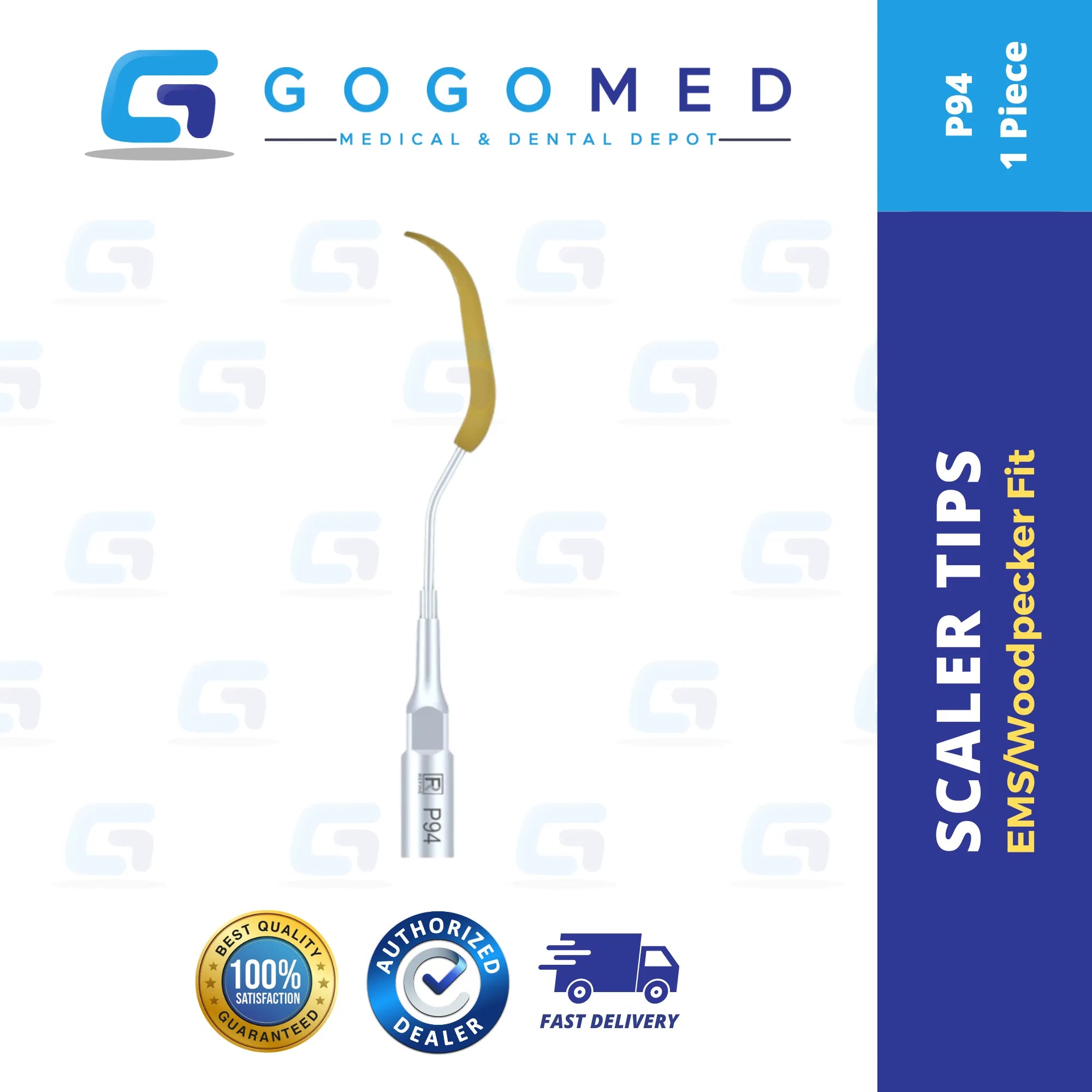

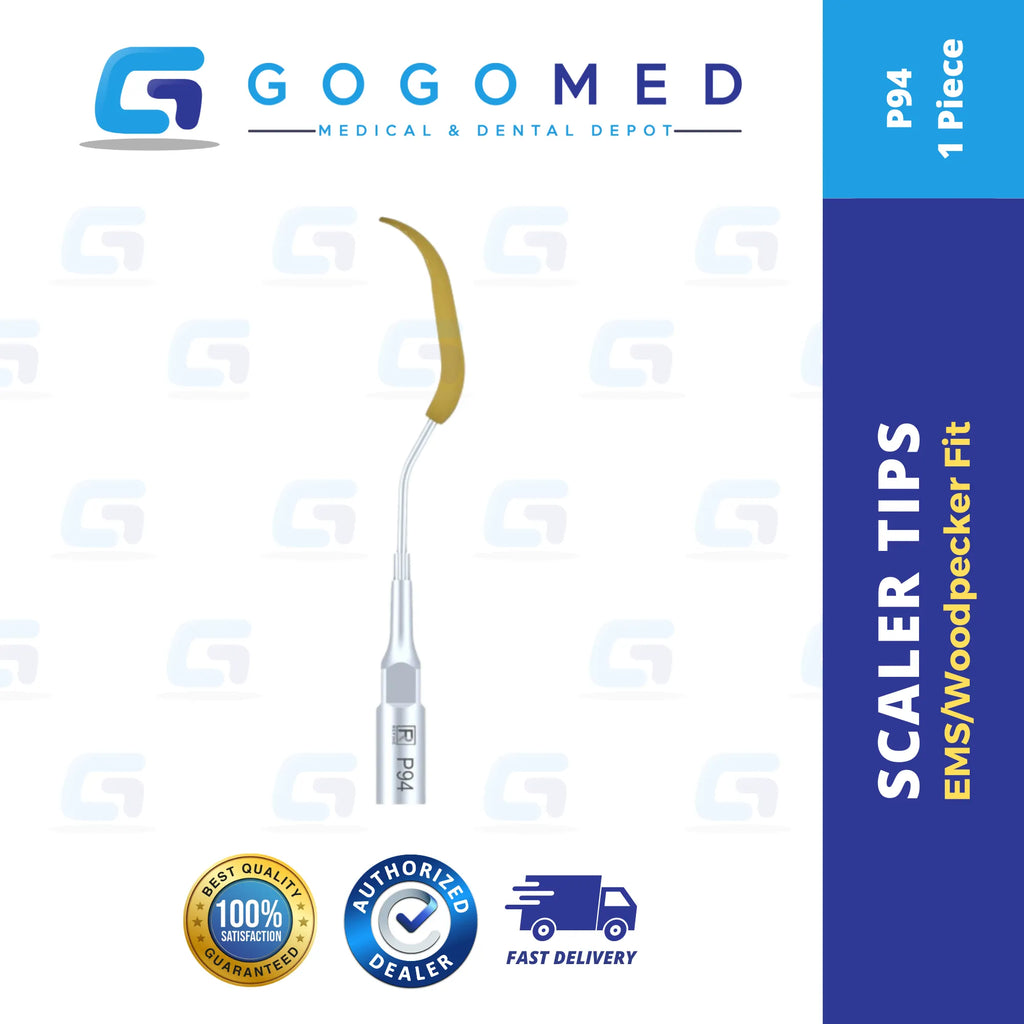

P94

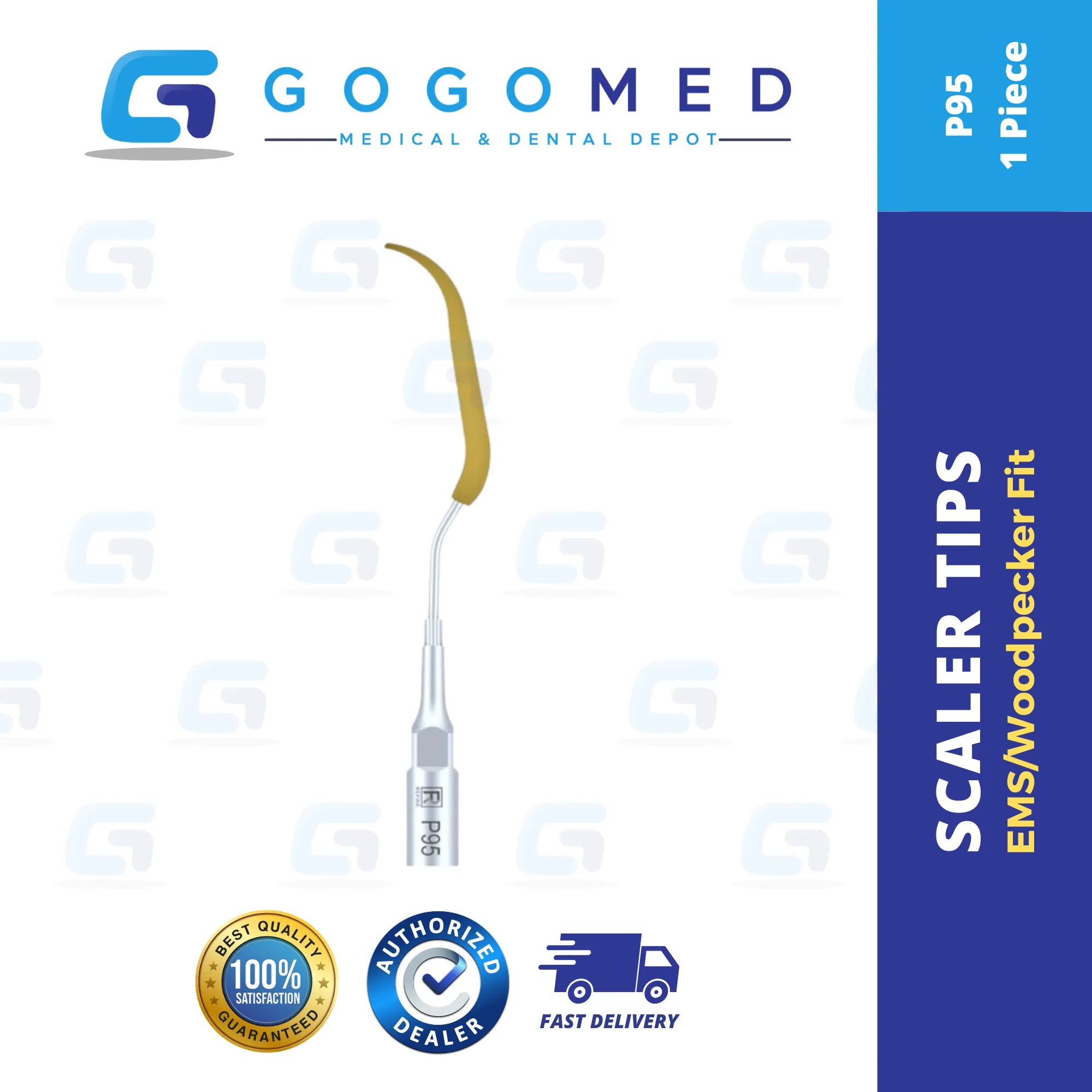

P95

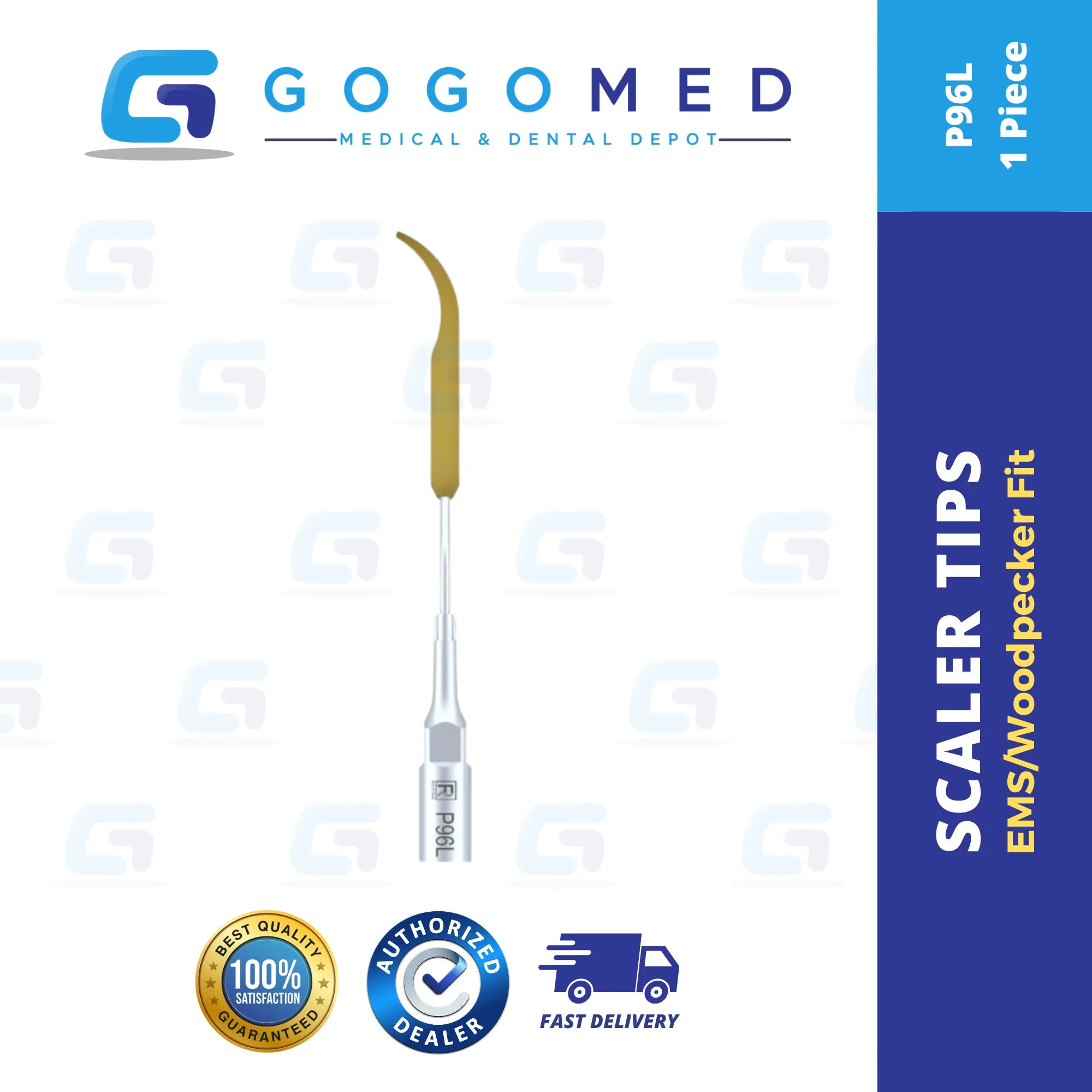

P96L

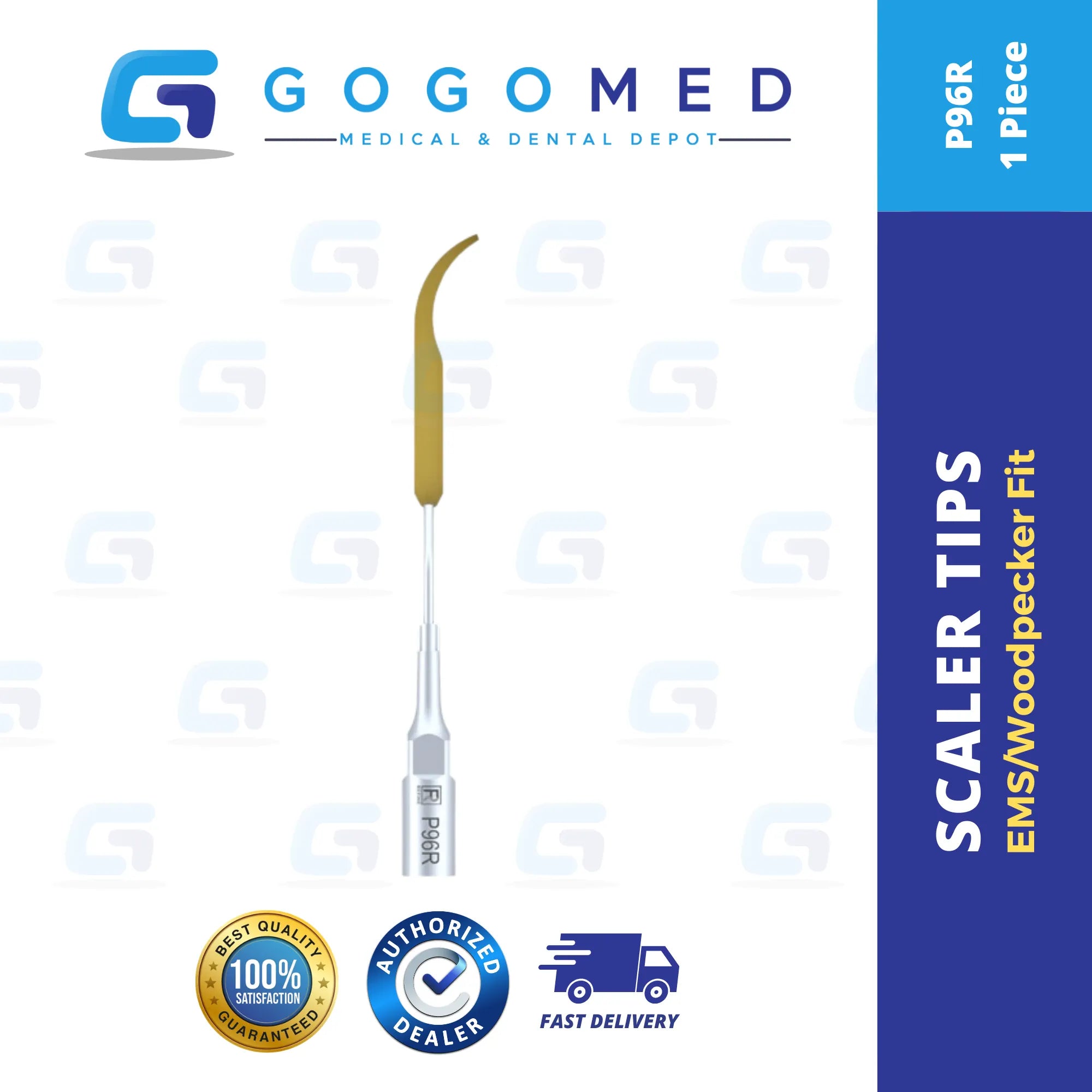

P96R

Endo Tips--

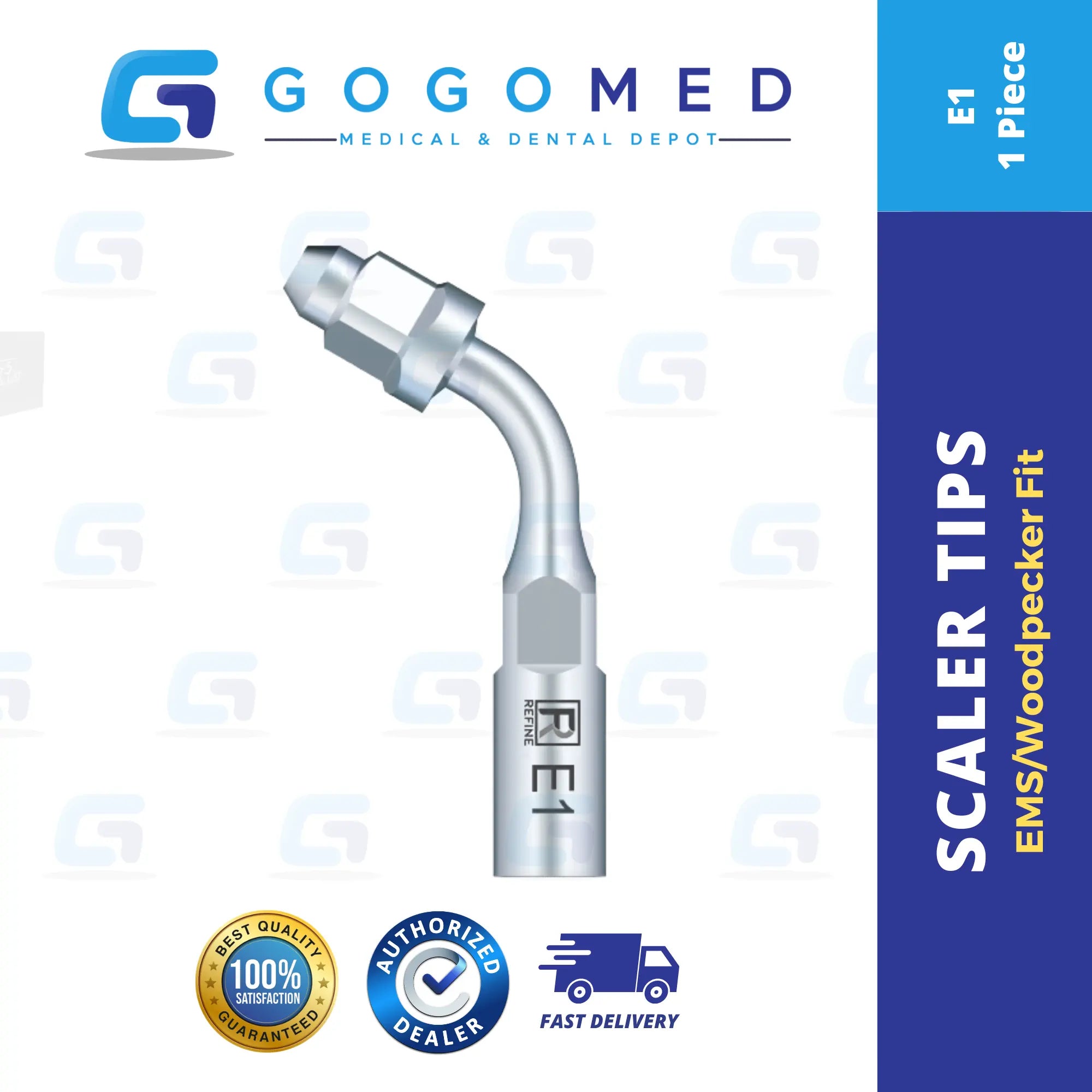

E1 120° Angle Holder for: Niti K Files, usually used for premolar root canal cleaning, sterilizing and taking out the stem in root canal.

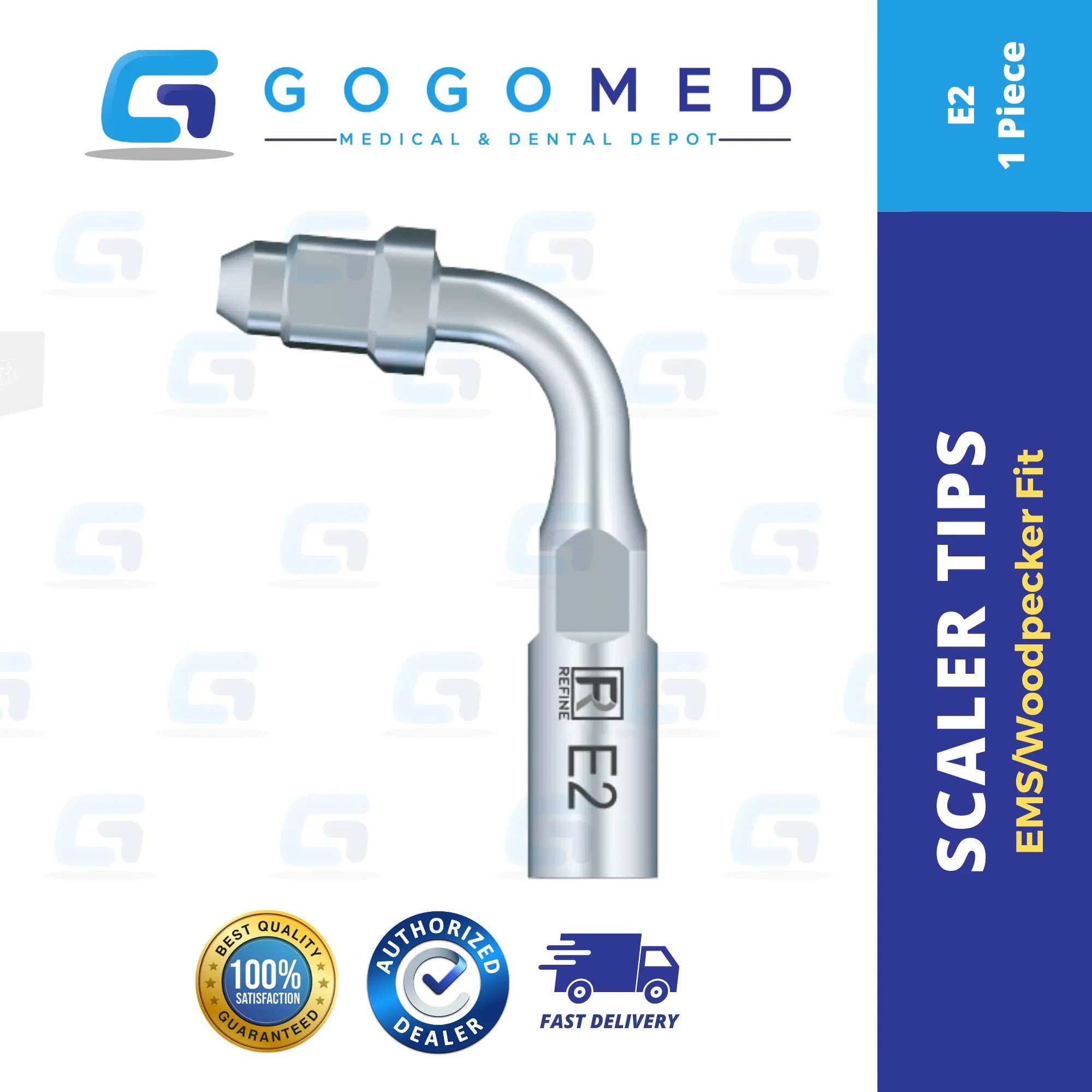

E2 95 Angle Holder for: Niti K Files, usually used for distomolar root canal cleaning, sterilizing and taking out the stem in root canal.

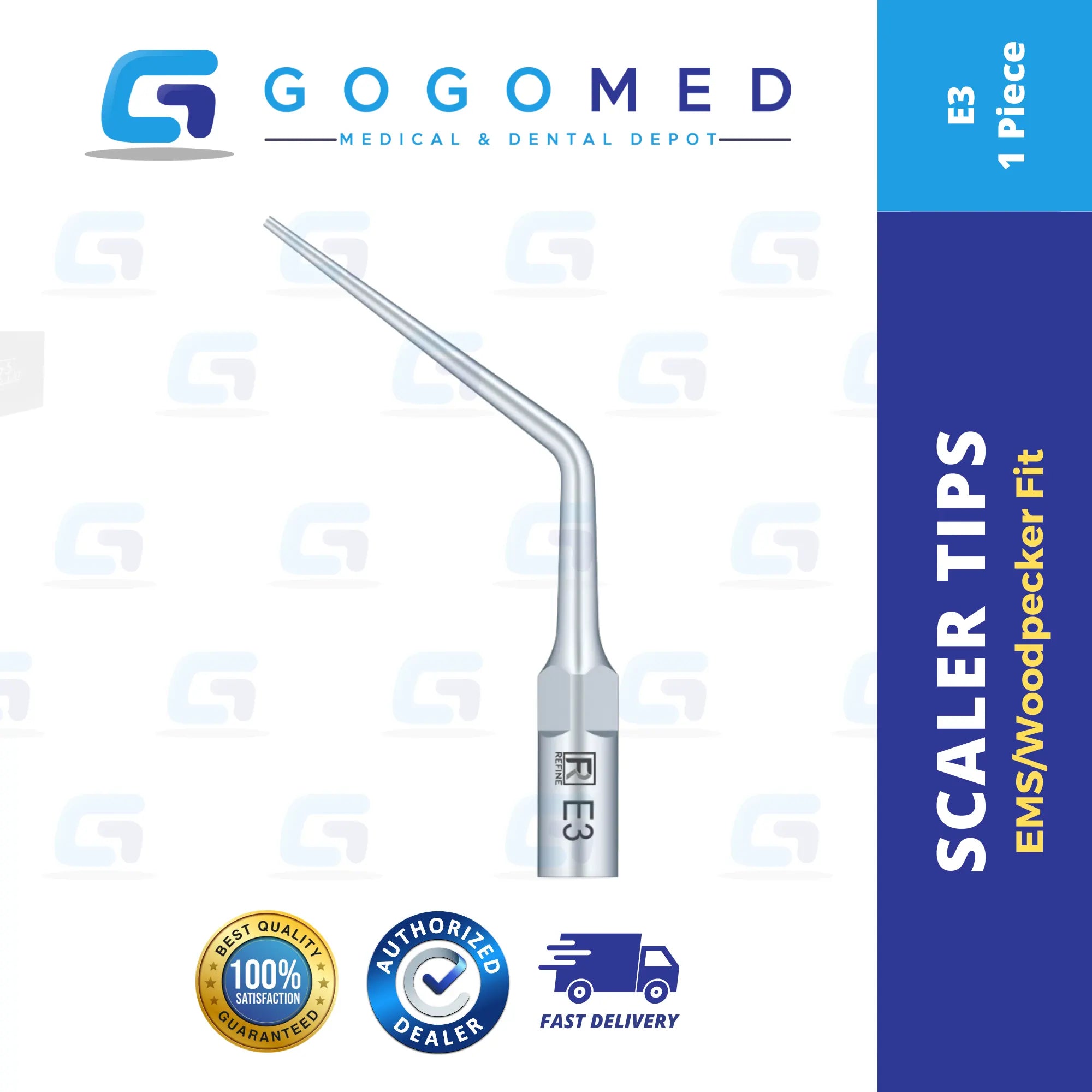

E3 After root canal cleaning, using the mechanism and heat energy of ultrasonic vibration to intenerate the filling lateral condensation, to make sure the top of the scaler tip touch the lateral condensation.

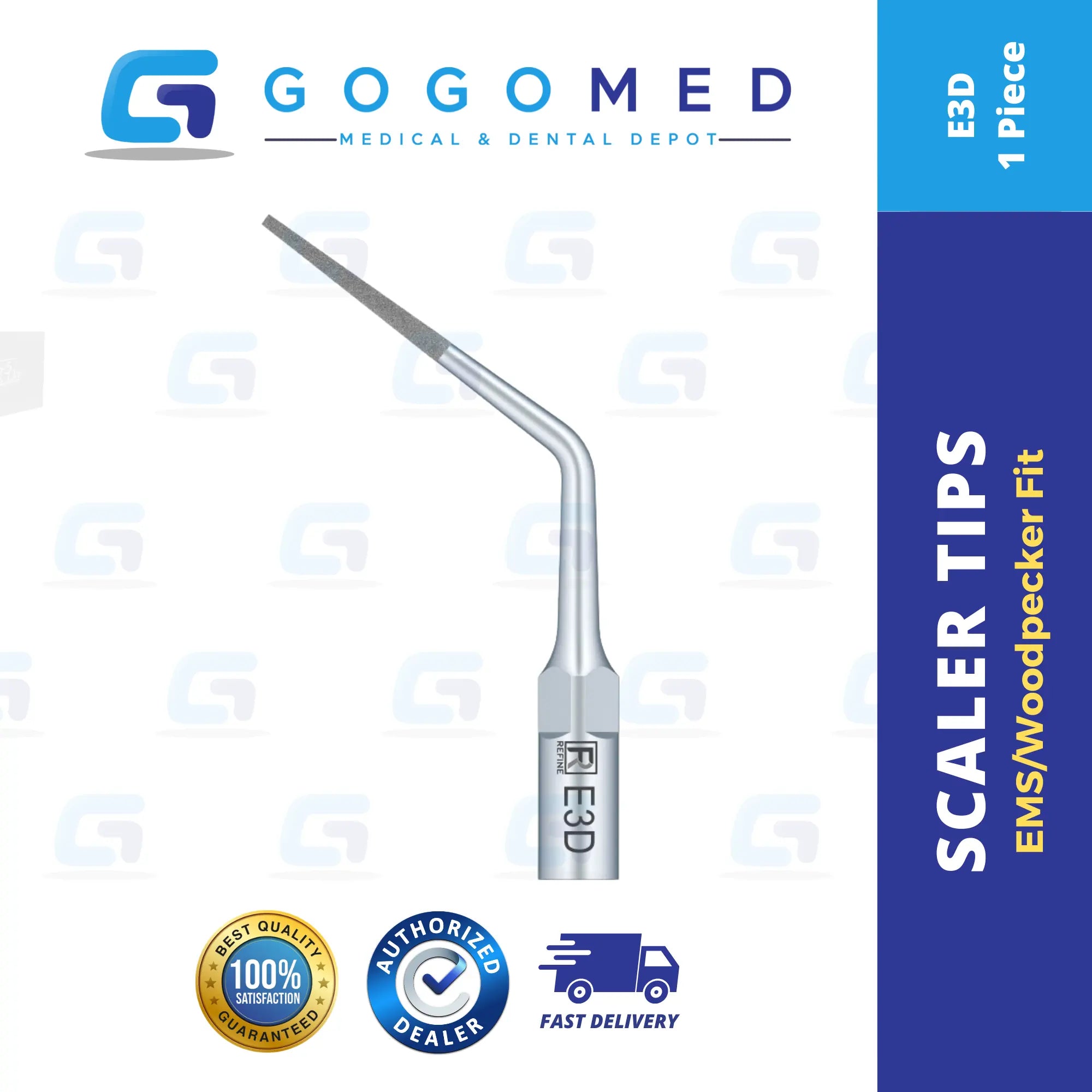

E3D Diamond coated (40um grit) for root canal enlarging and access to the broken file in root canal. Don't touch the broken file when enlarging the root canal in case putting it deeper in the canal.

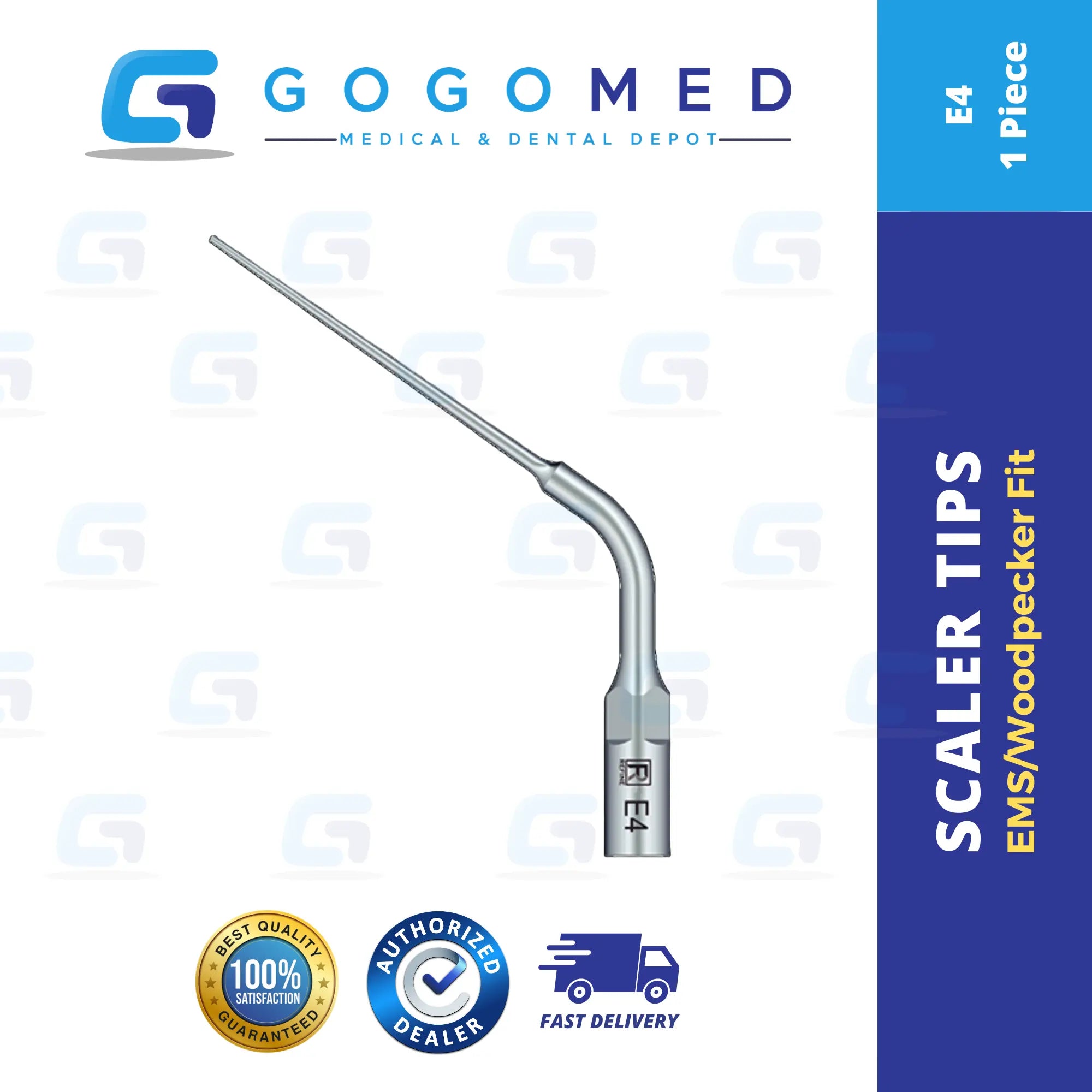

E4 Applied to remove the root filling obstructions during the root canal retreatment. The length of tip slender part is 22mm.

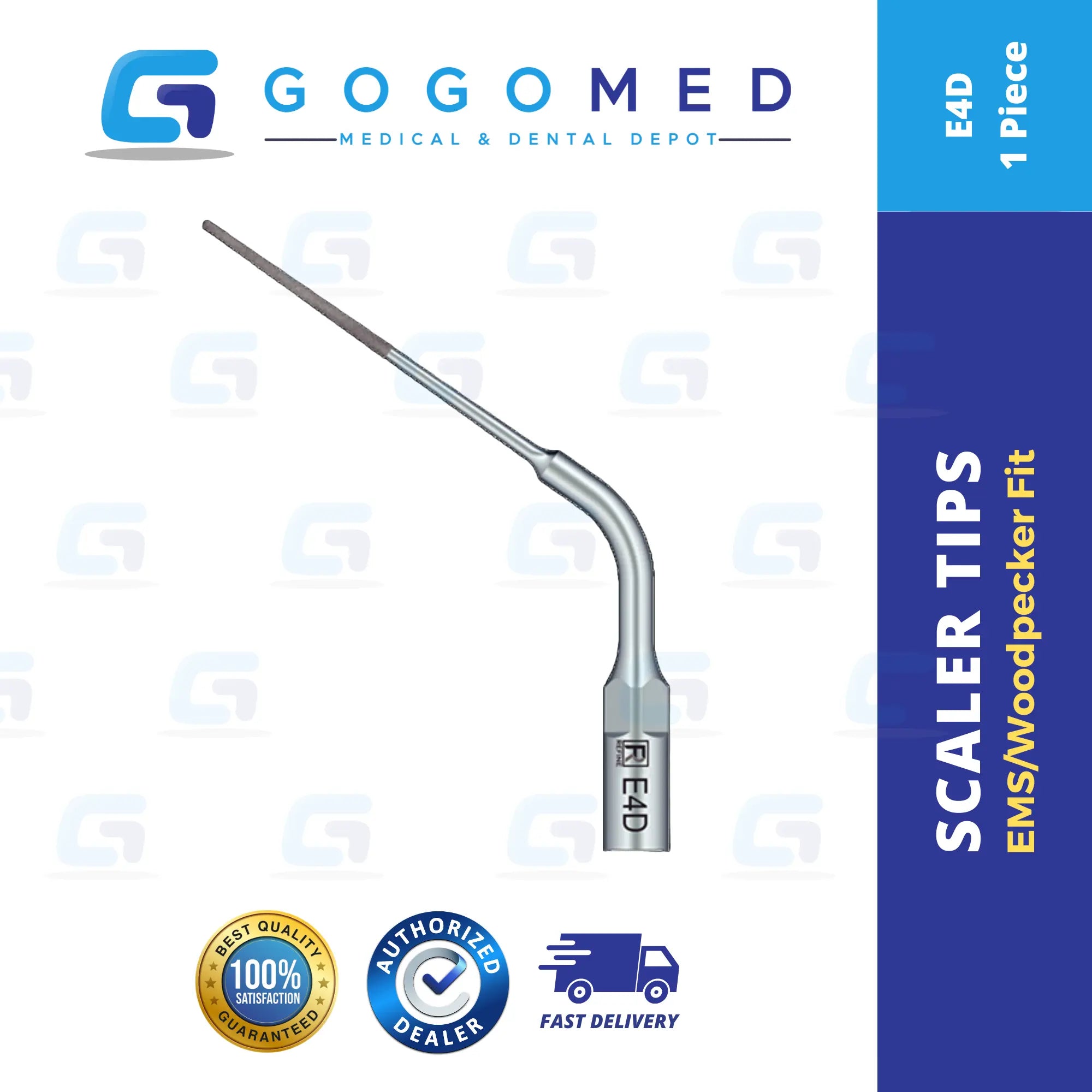

E4D Diamond coated (40um grit) the calcification and bad filling material in the root canal during the root canal retreatment. The length of diamond coated part is 15mm.

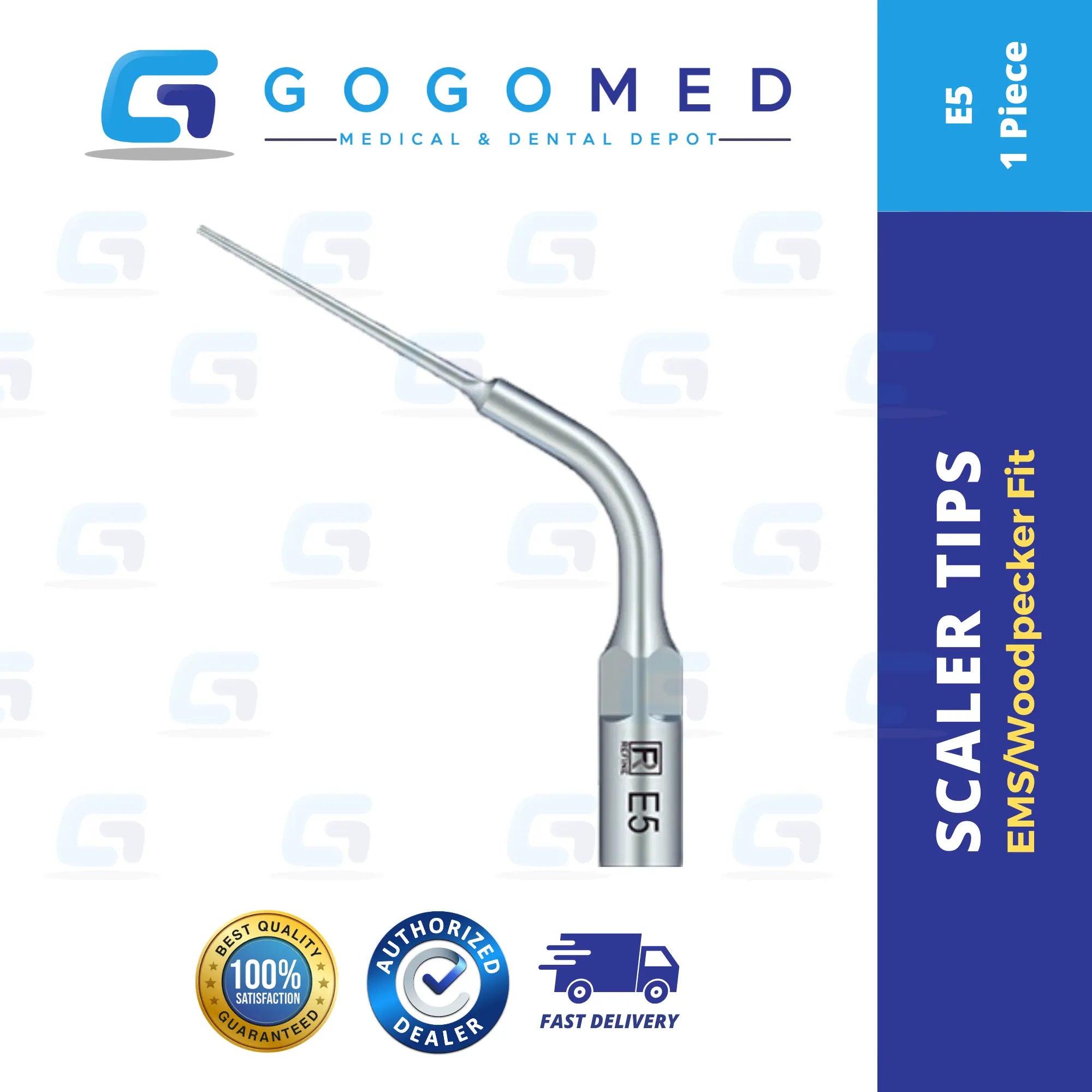

E5 Applied to remove the root filling obstructions during the root canal retreatment. The length of tip slender part is 16mm.

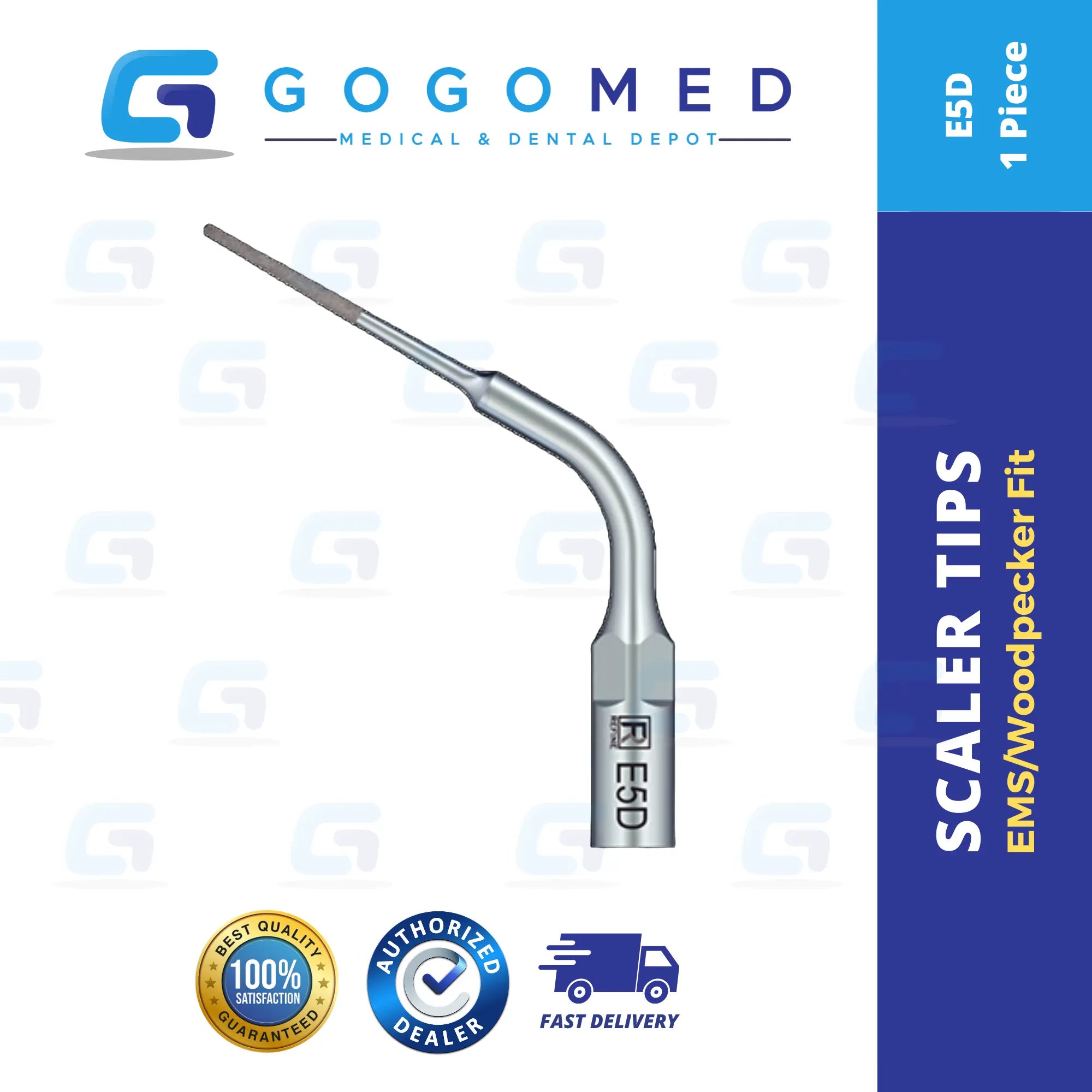

E5D Diamond coated (40um grit) tip for removing the calcification and bad filling material in the root canal during the root canal retreatment. The length of diamond coated part is 10mm.

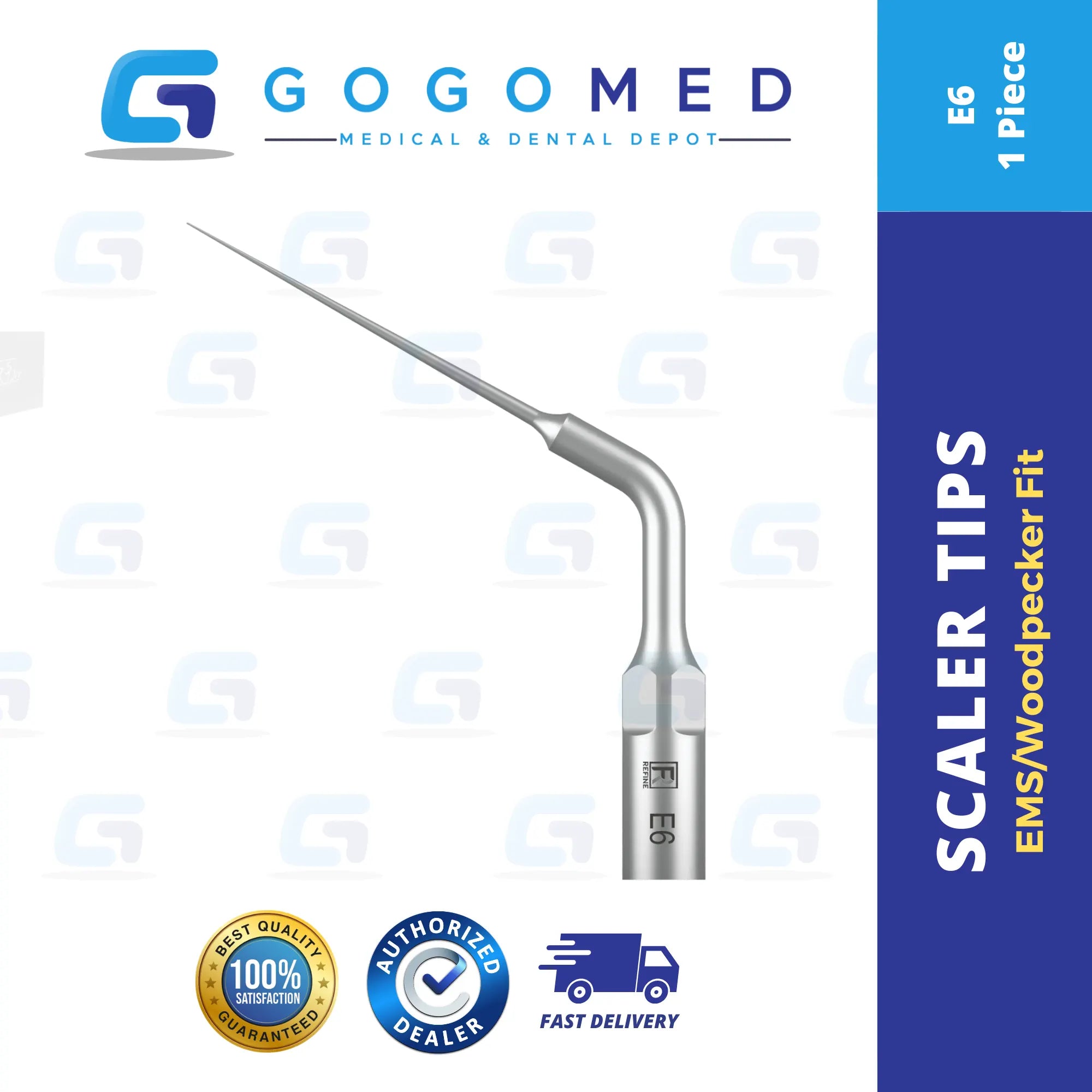

E6 Titanium tip applied to remove broken file in deep root canal.

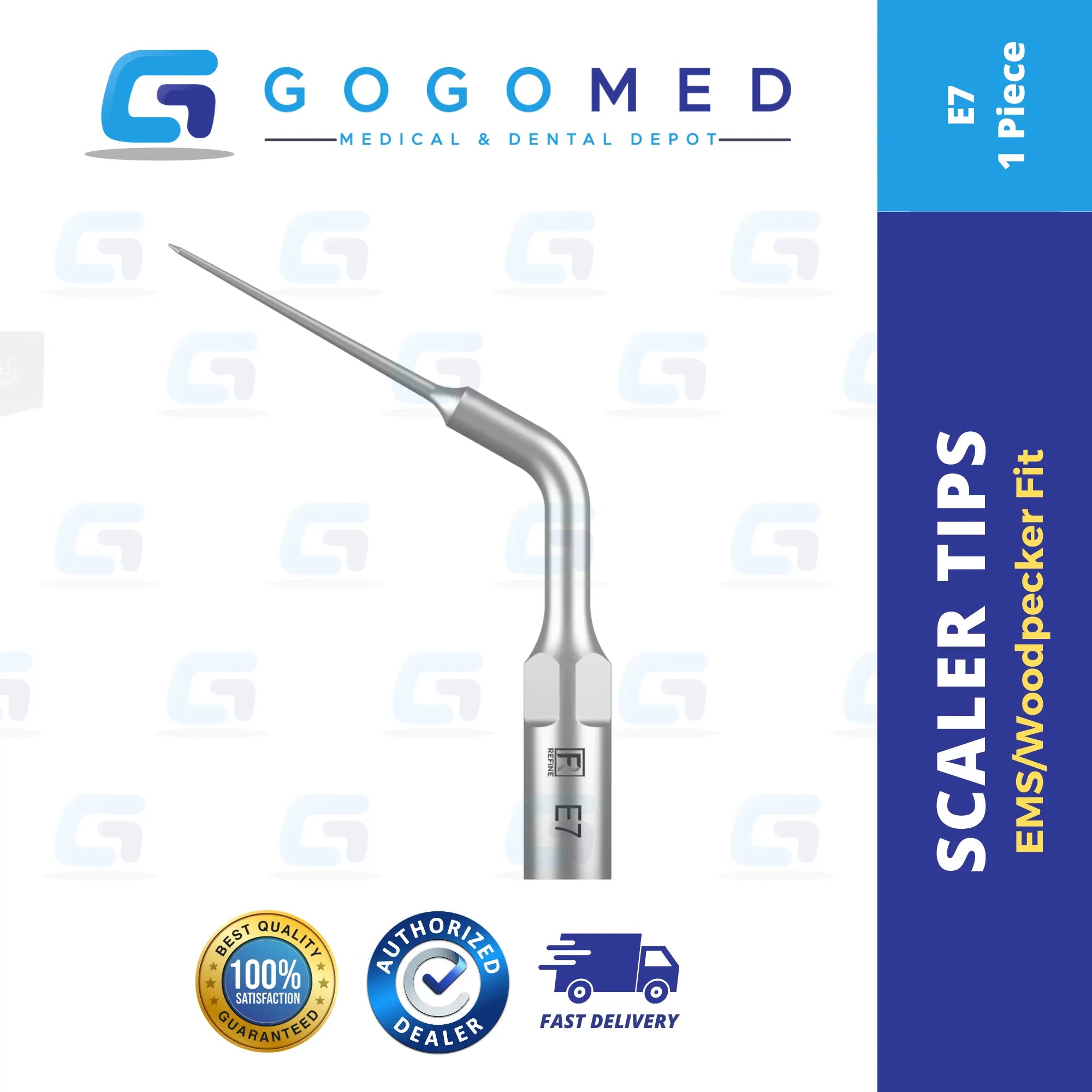

E7 Titanium tip applied to remove broken file in top 1/3 part of root canal.

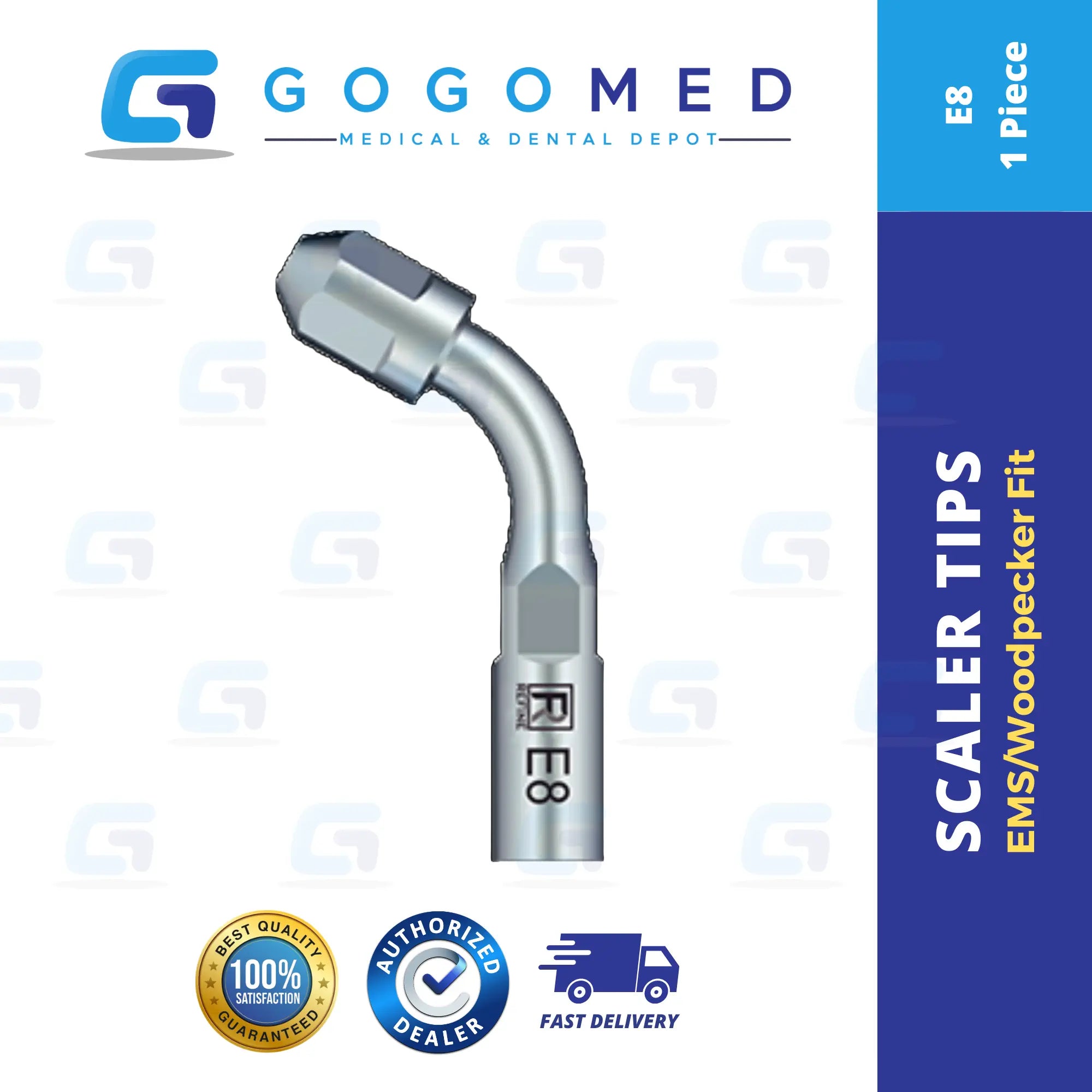

E8 Applied to hold different types of dental bur to realize a variety of treatment on teeth. Usually for anterior teeth. Special burs for dental implant is applicable.

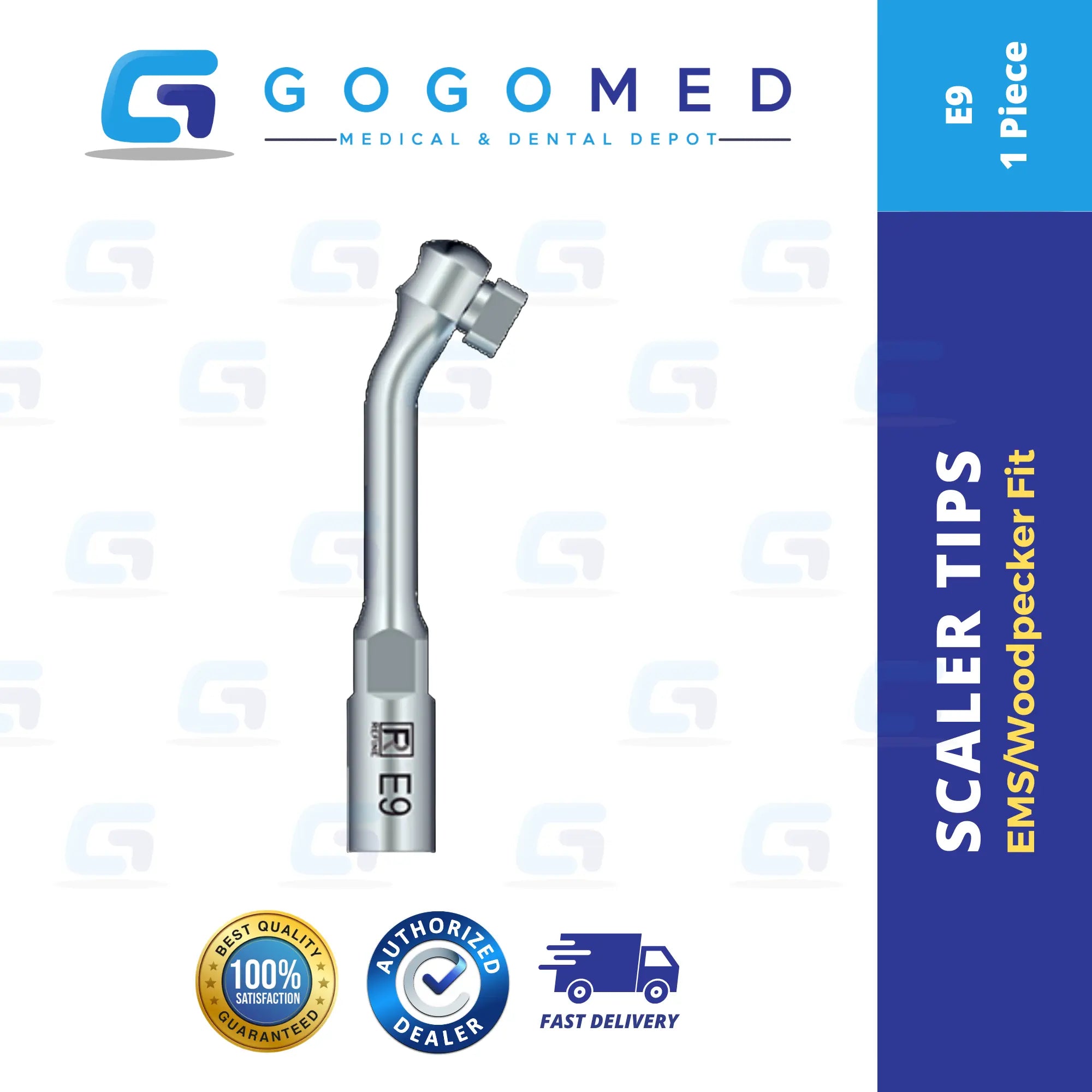

E9 Applied to hold different types of dental bur to realize a variety of treatment on teeth. Special burs used for dental implant is applicable.

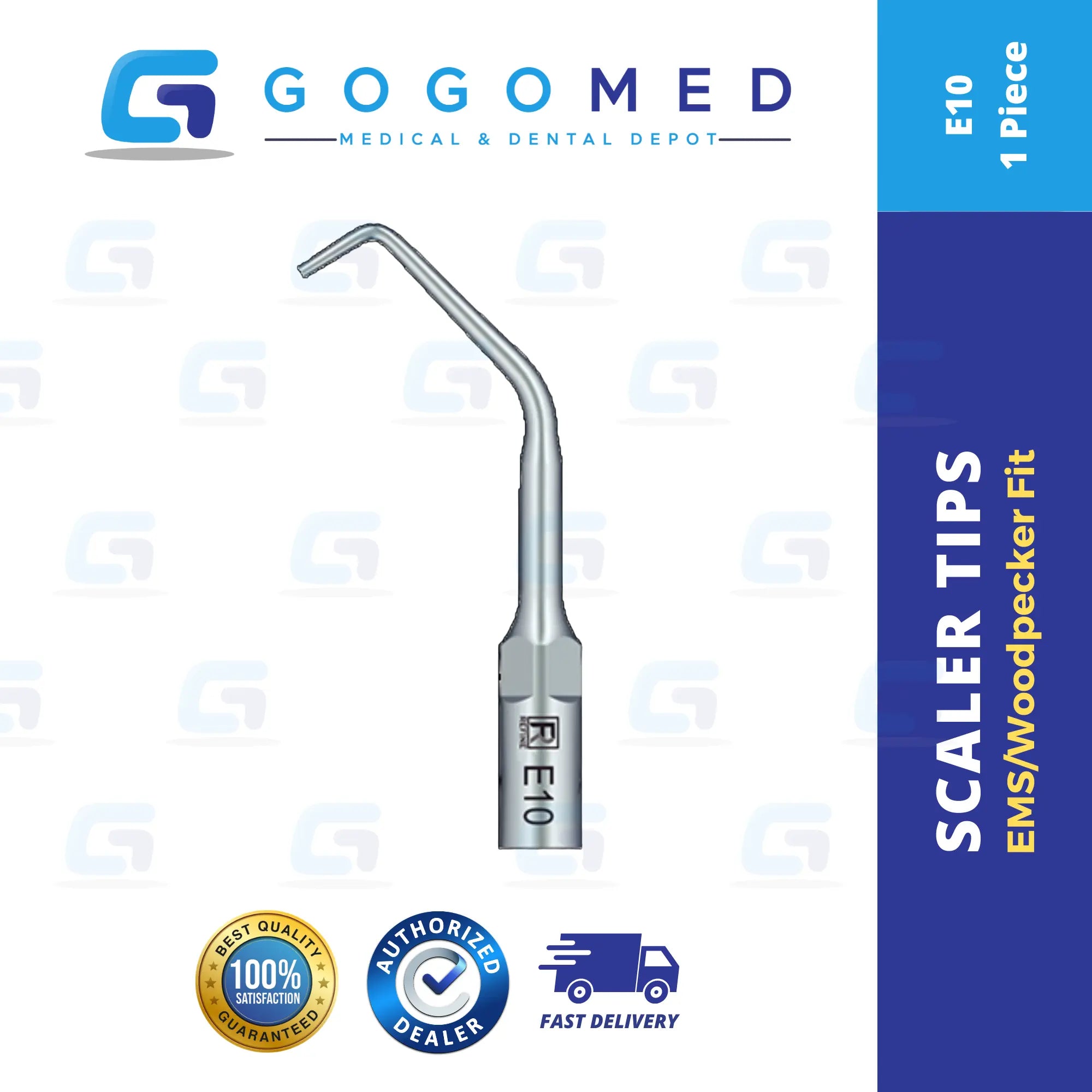

E10 Applied to polish root canal in the retrograde preparation of root canal. The length of tip slender part is 4.5mm.

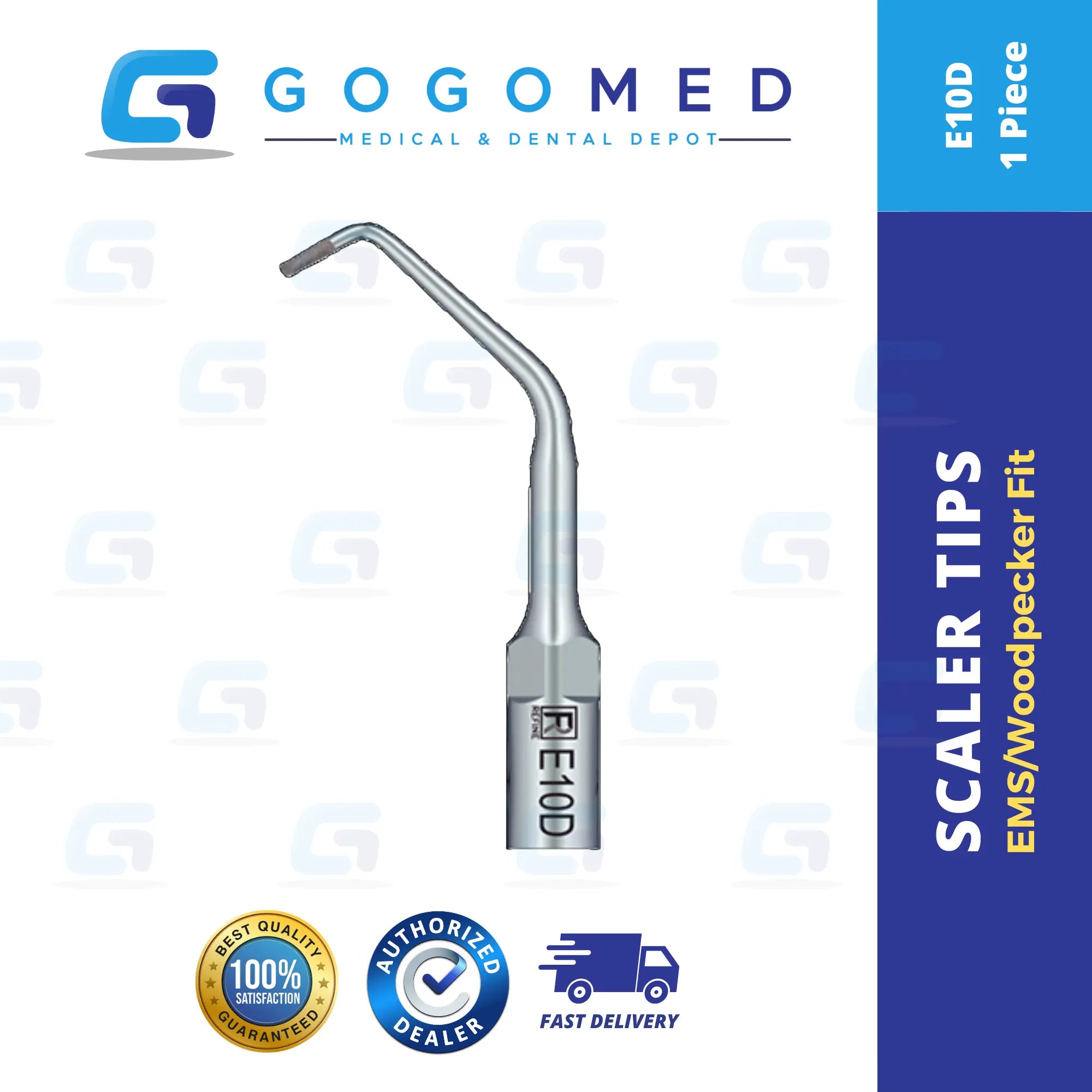

E10D Diamond coated (40um grit) instrument for highly efficient root planning in the retrograde preparation of root canal. The length of the diamond coated part is 3.3mm.

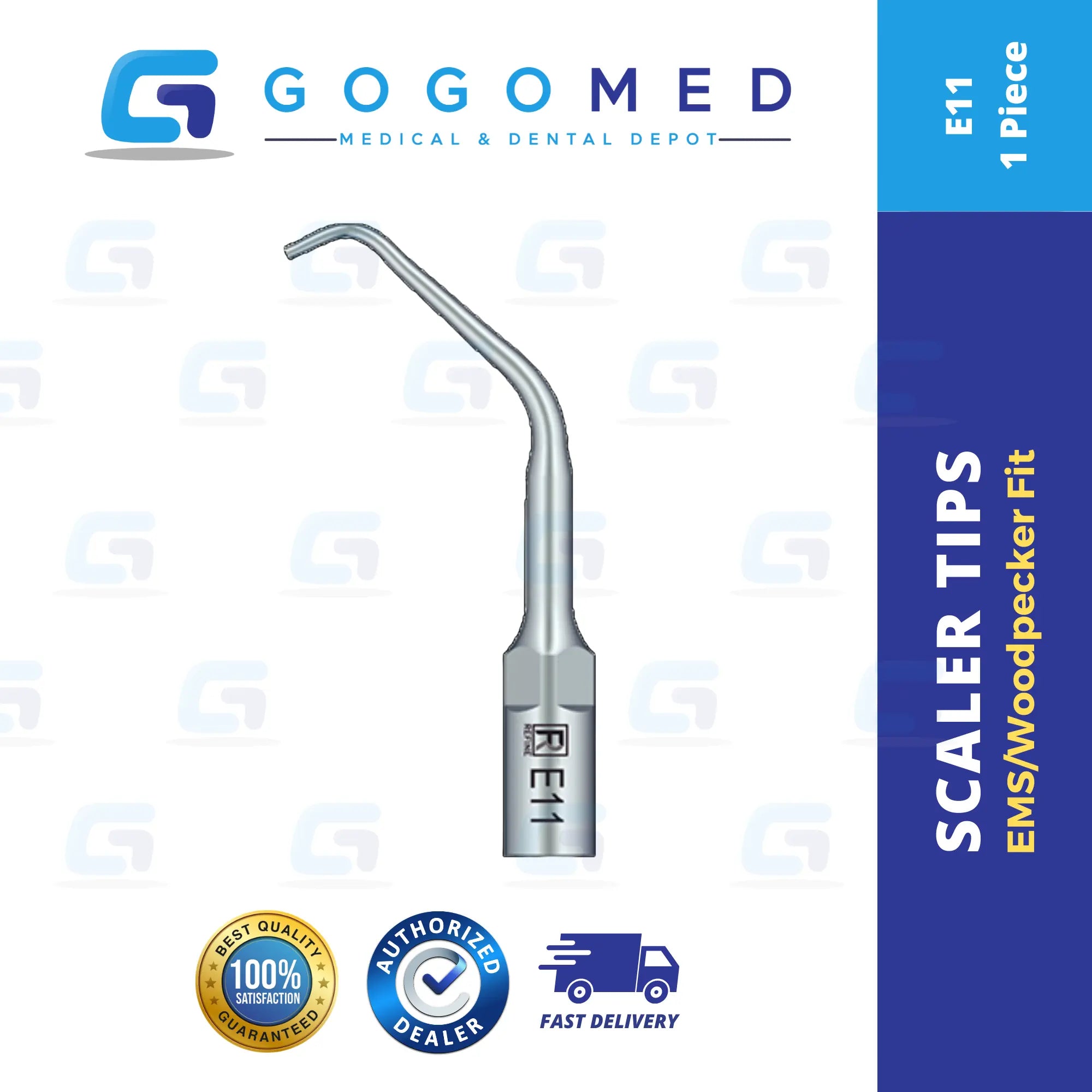

E11 Applied to polish root canal in the retrograde preparation of root canal. The length of tip slender part is 3.5mm.

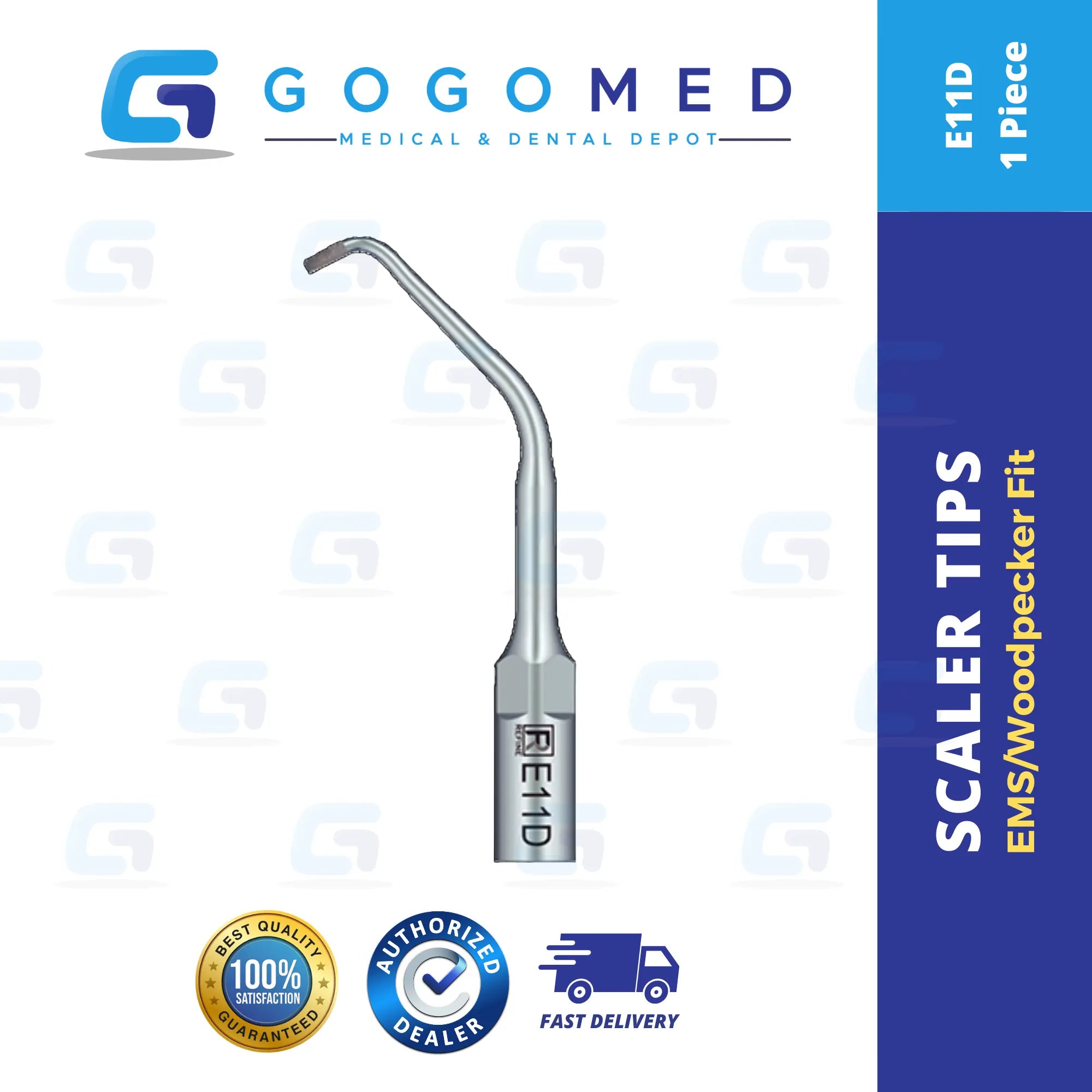

E11D Diamond coated (40um grit) for highly efficient root planning in the retrograde preparation of root canal. The length of the diamond coated part is 2.2mm.

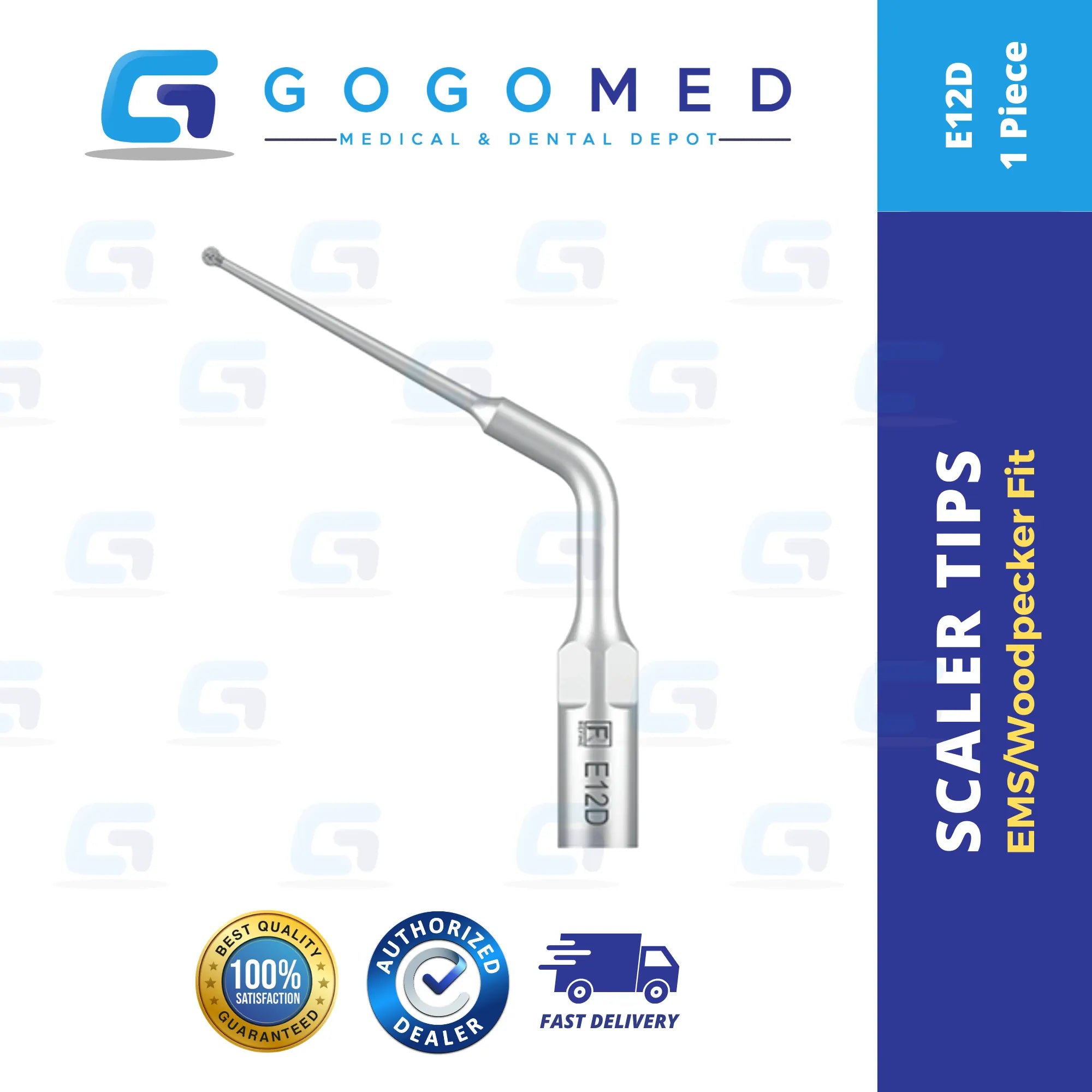

E12D Diamond coated (90um grit) tip for removing calcification and bad filling material of pulp cavity, exposing the root canal orifice.
E14 Applied to remove the root filling obstructions during the root canal treatment. The length of tip slender part is 22mm.
E14D Diamond coated (40um grit) tip for removing the calcification and bad filling material in the root canal during the root canal treatment. The length of diamond coated part is 15mm.

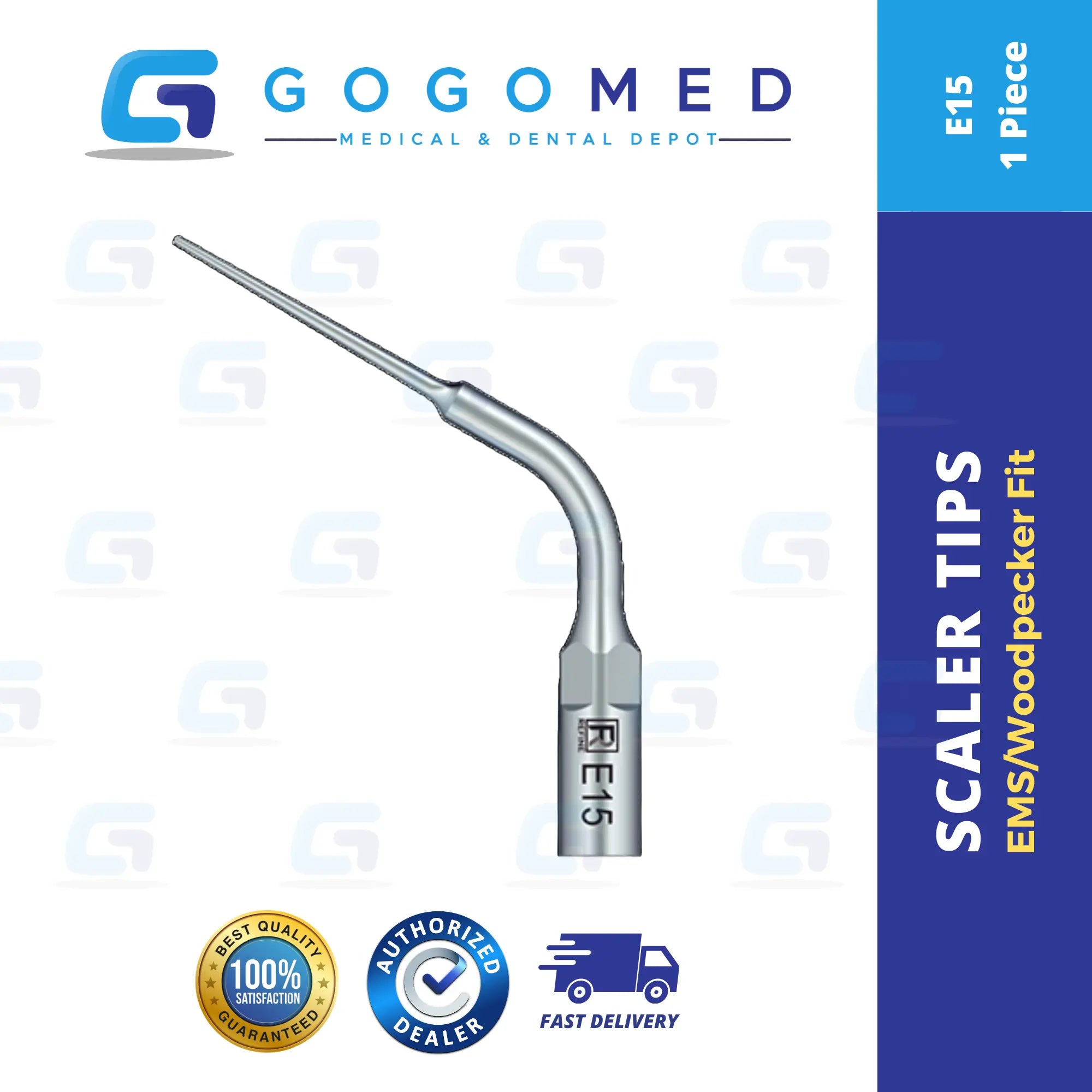

E15 Applied to remove the root filling obstructions during the root canal retreatment. The length of tip slender part is 16mm.

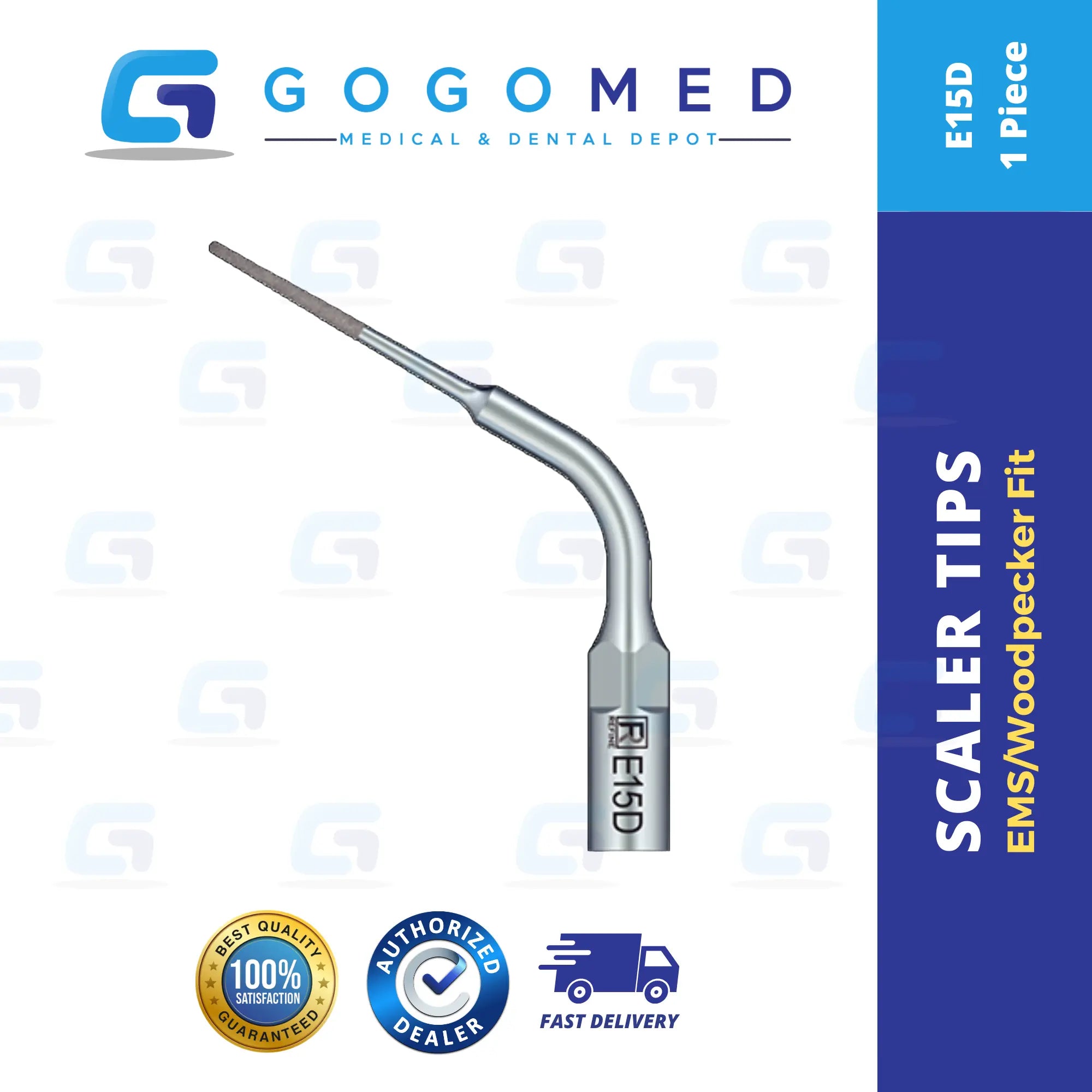

E15D Diamond coated (40um grit) tip for removing the calcification and bad filling material in the root canal during the root canal retreatment.

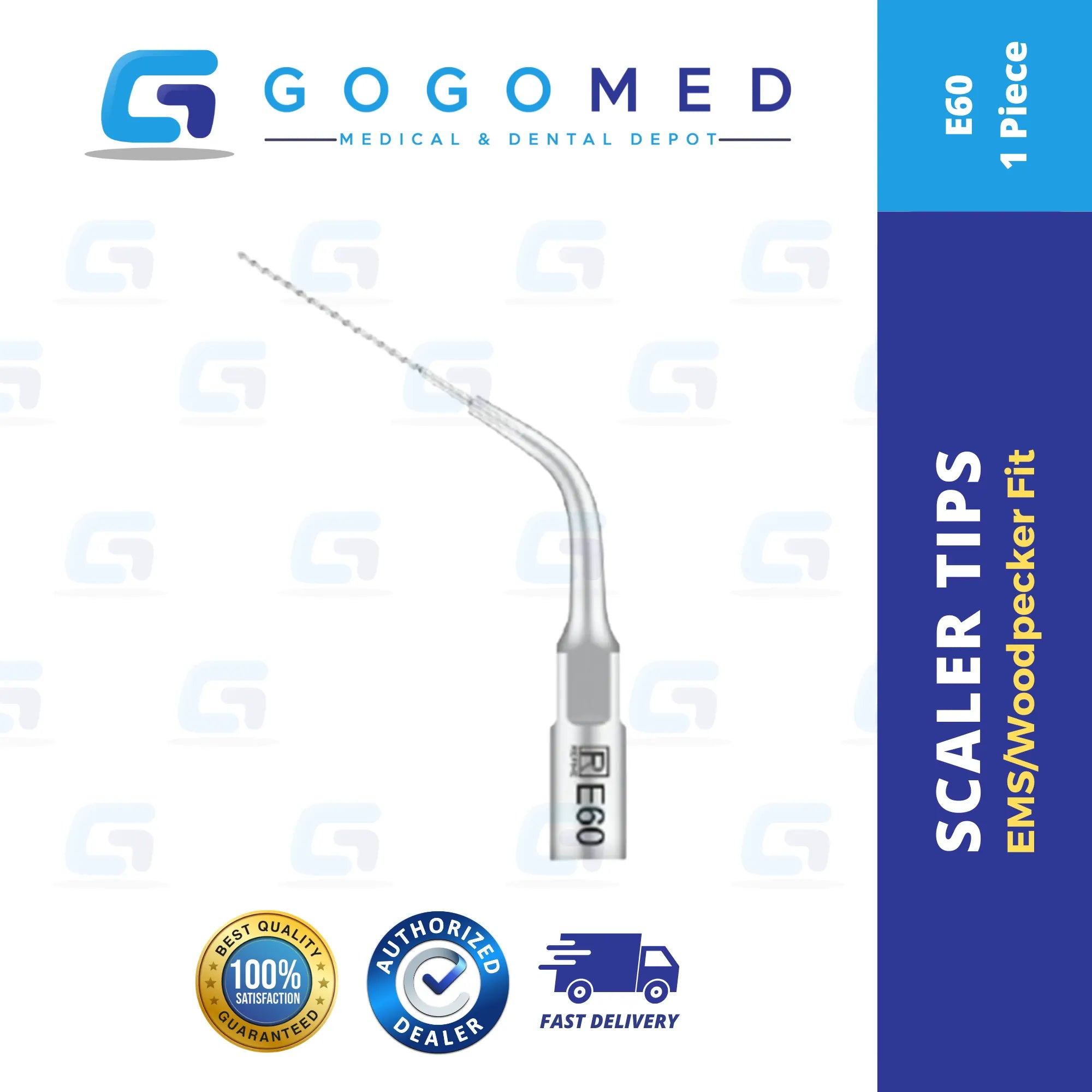

E60 All-in-one irragation file, with slight cutting function.

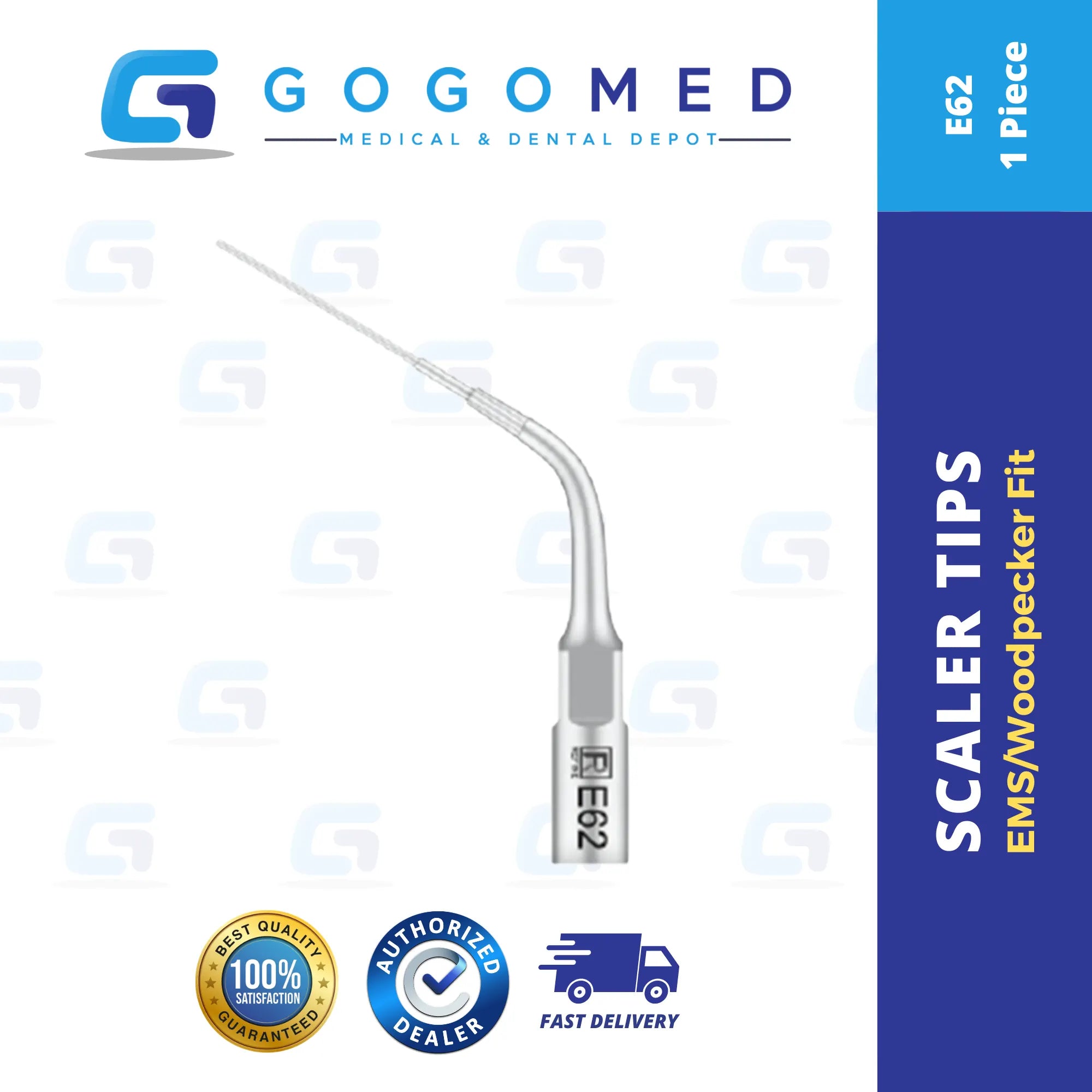

E62 All-in-one endo irragation file, with smooth surface.
